Niigata HN80D - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: HN80D
Year: 2012
Stock #: 13700 Sold
Highlights:

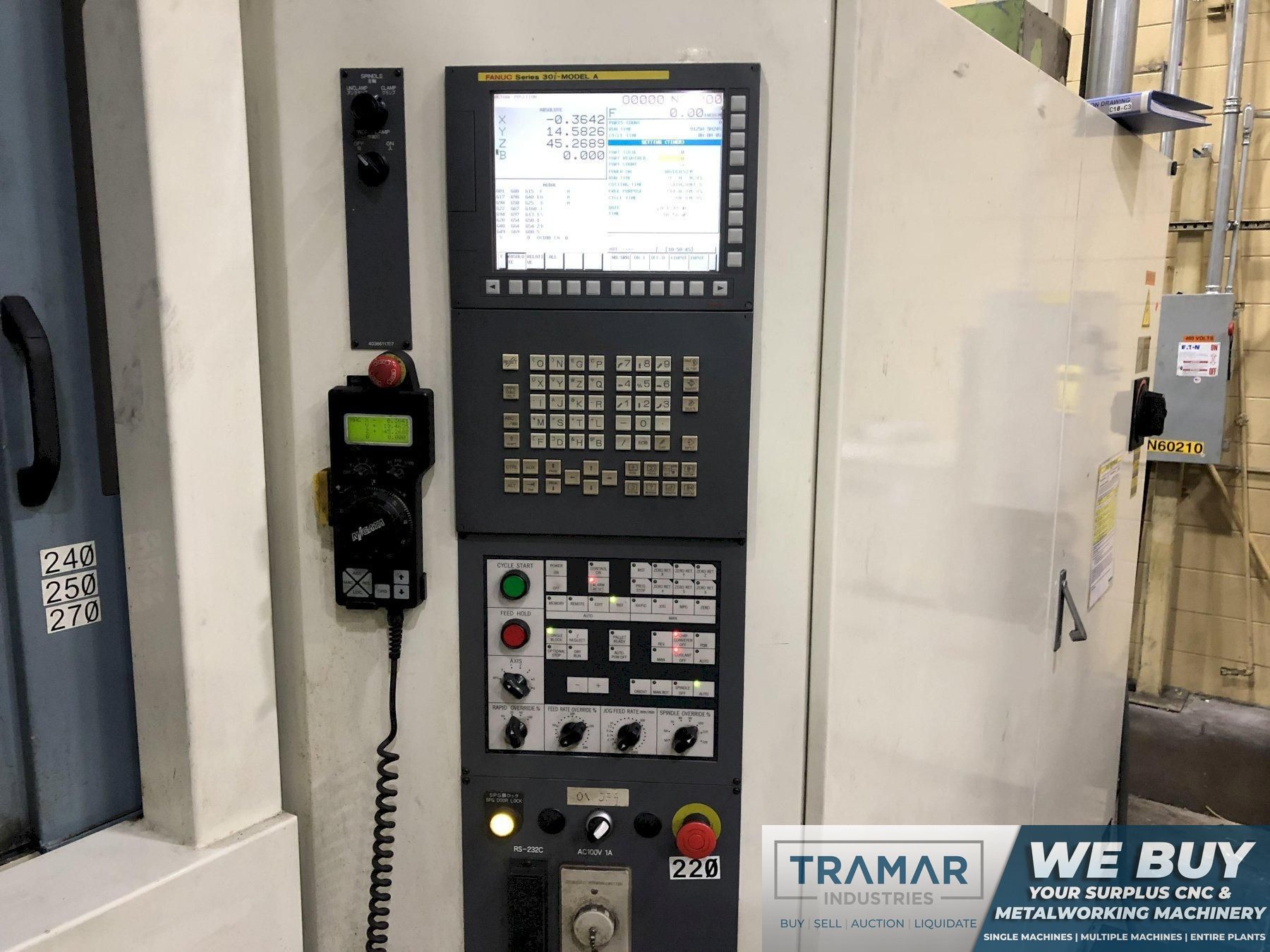

Fanuc 30iA Control

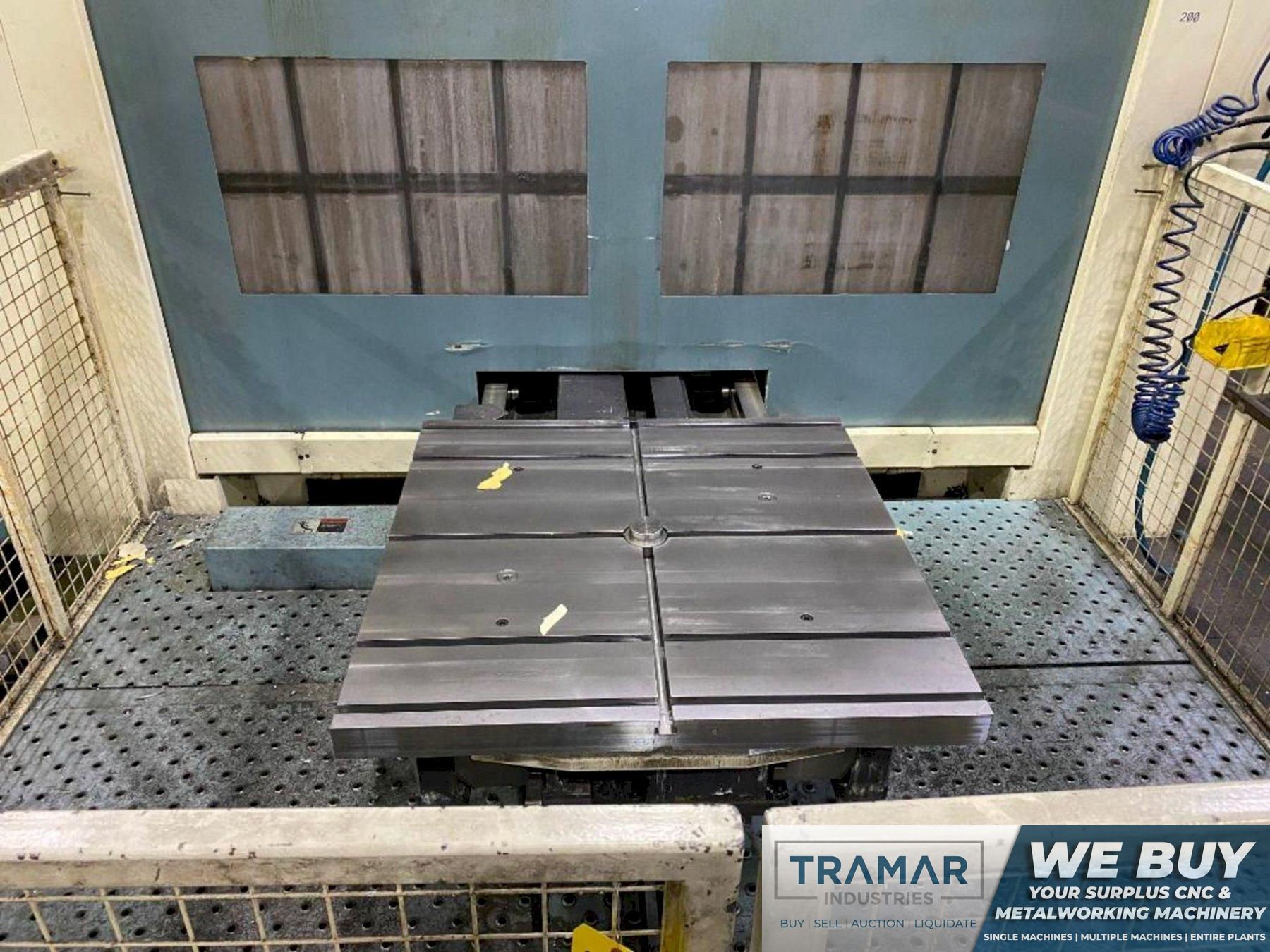

31.4" x 31.4" Pallets
5,511 lbs Load Capacity

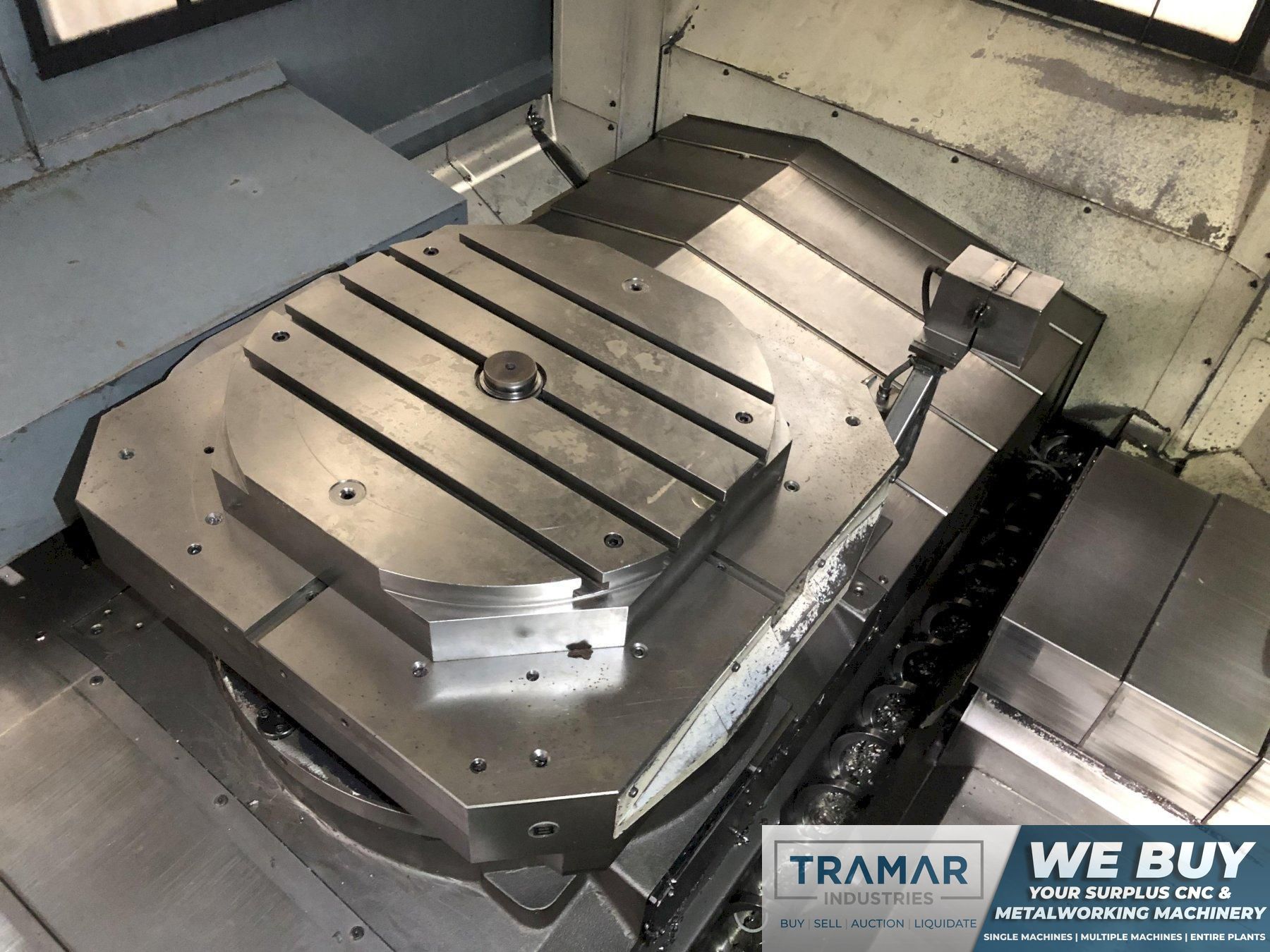

Full 4th B-Axis - 0.001 degrees
Travels (X/Y/Z): 60.3"/48.4"/40.1"

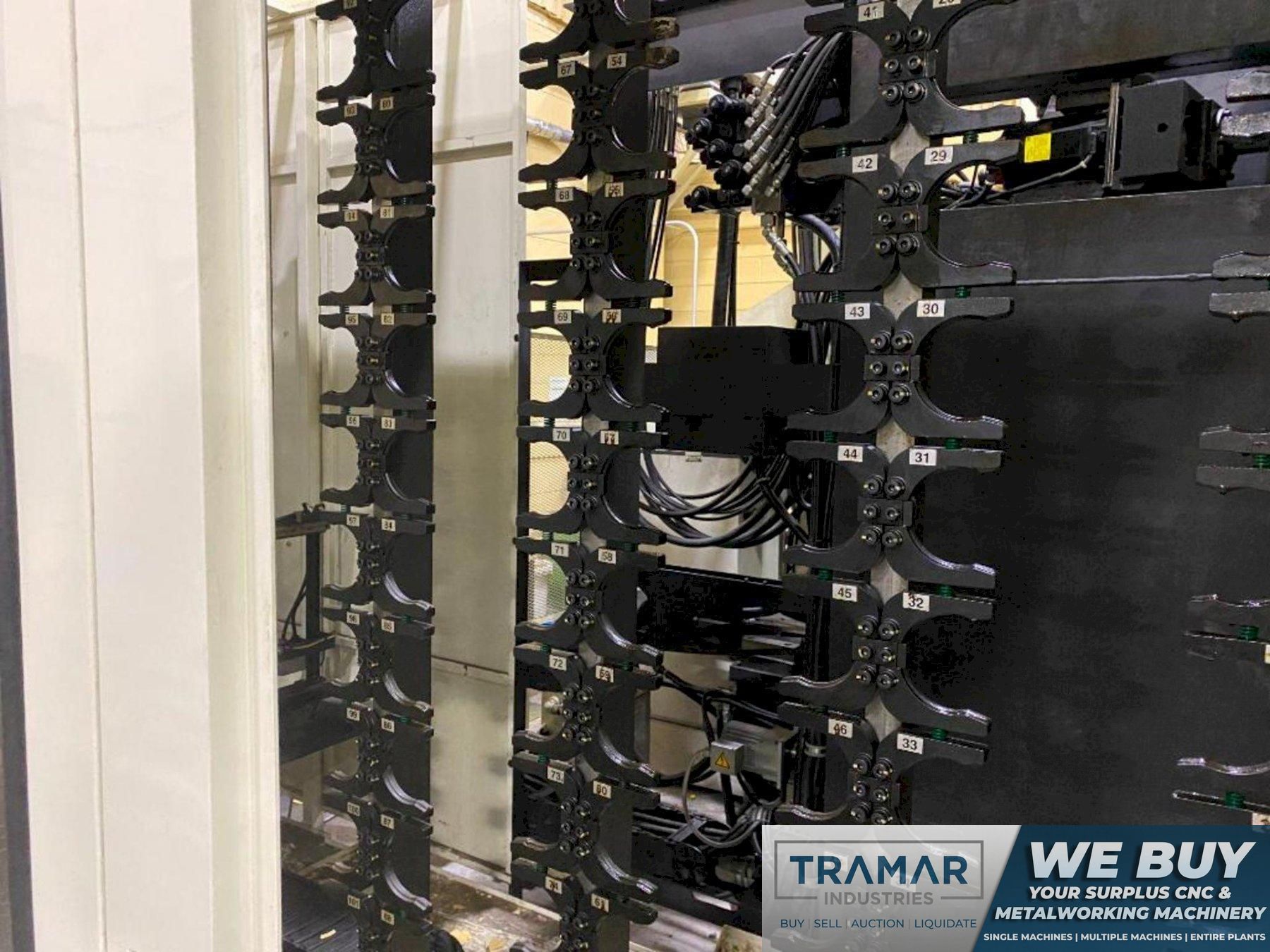

178 Station Tool Changer

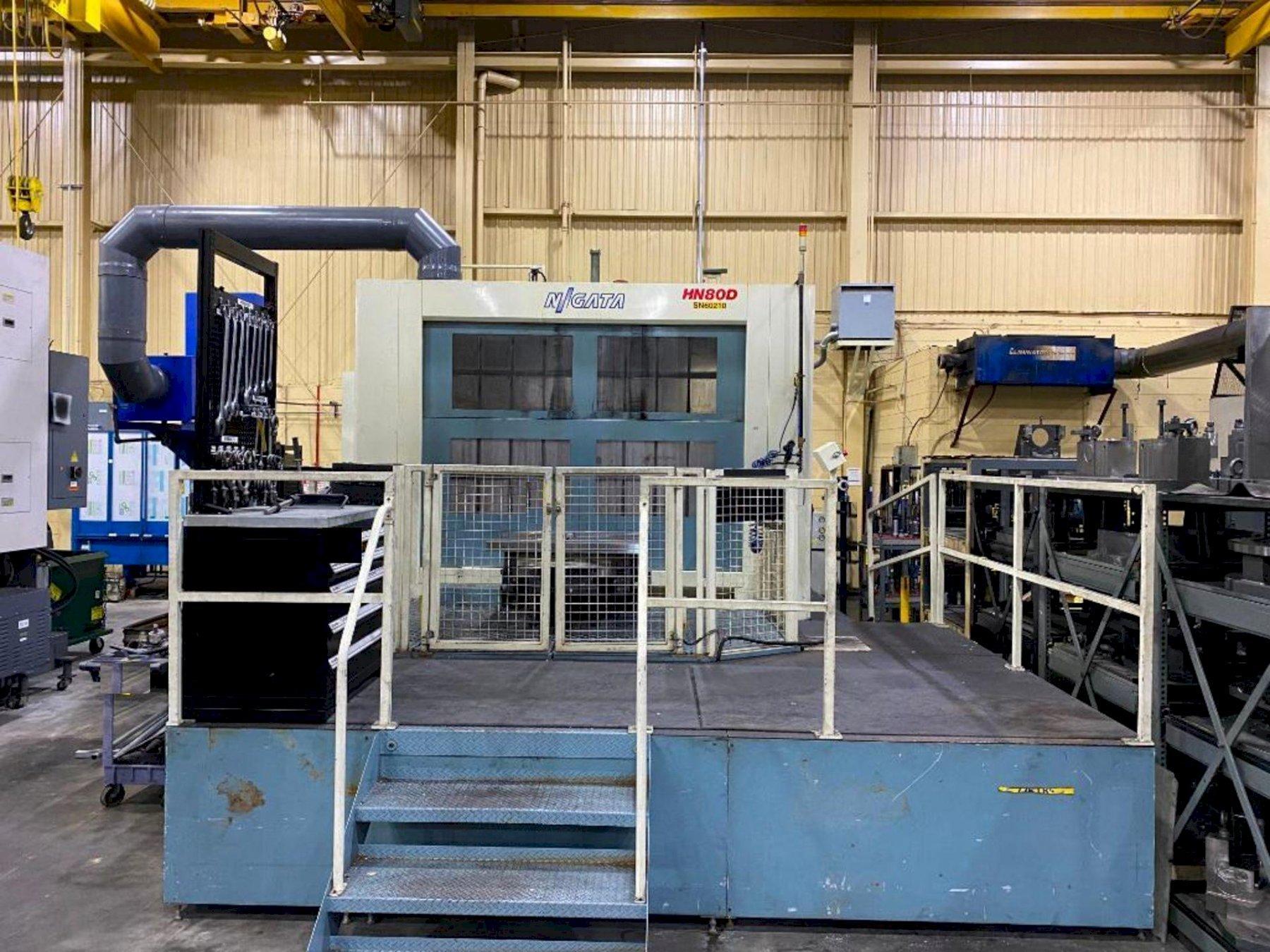

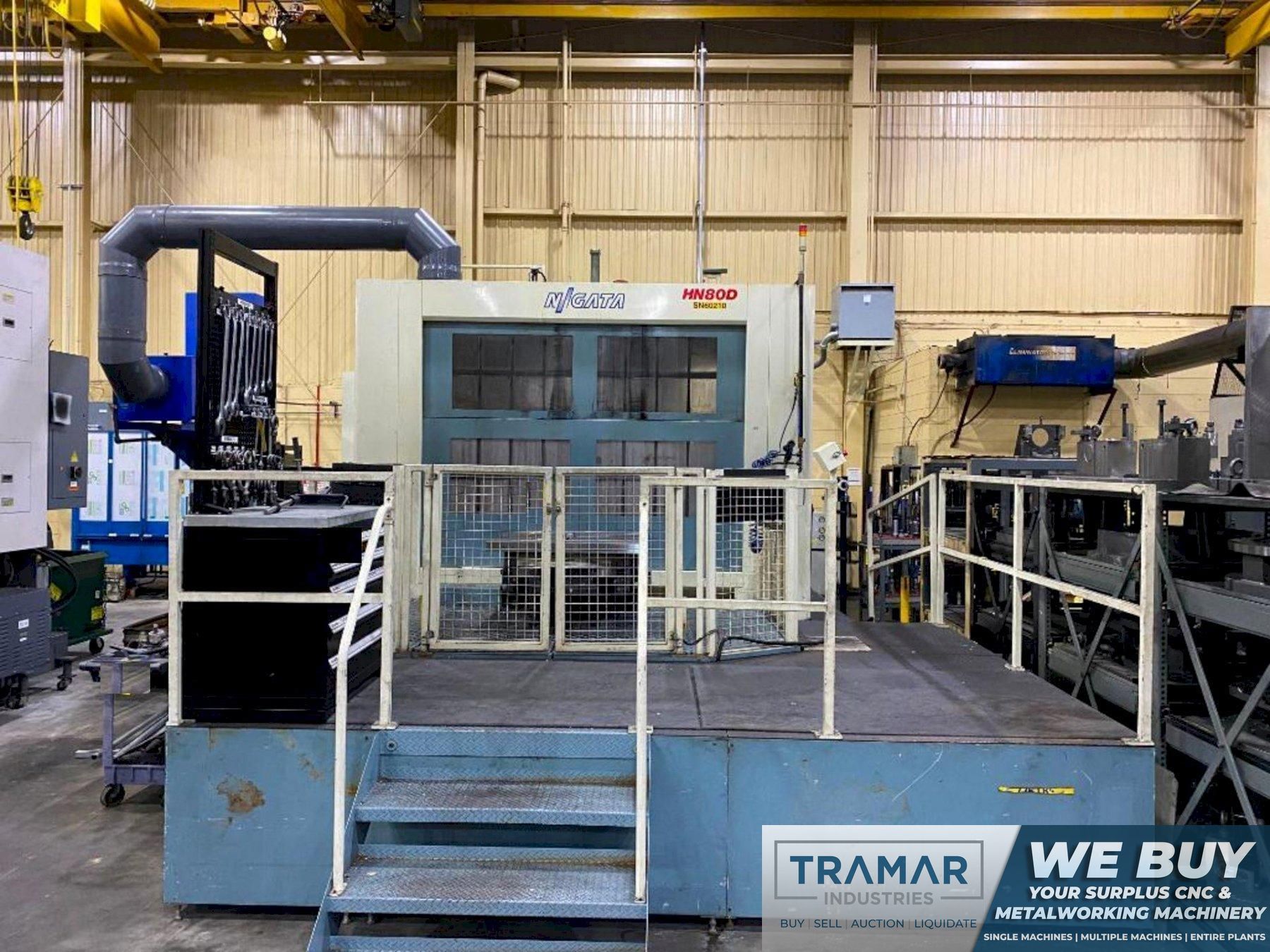

2012 Niigata HN80D CNC Horizontal Machining Center
Machine Specifications
CNC Control
yes
Control Type
Fanuc 30iA
# Axis
4

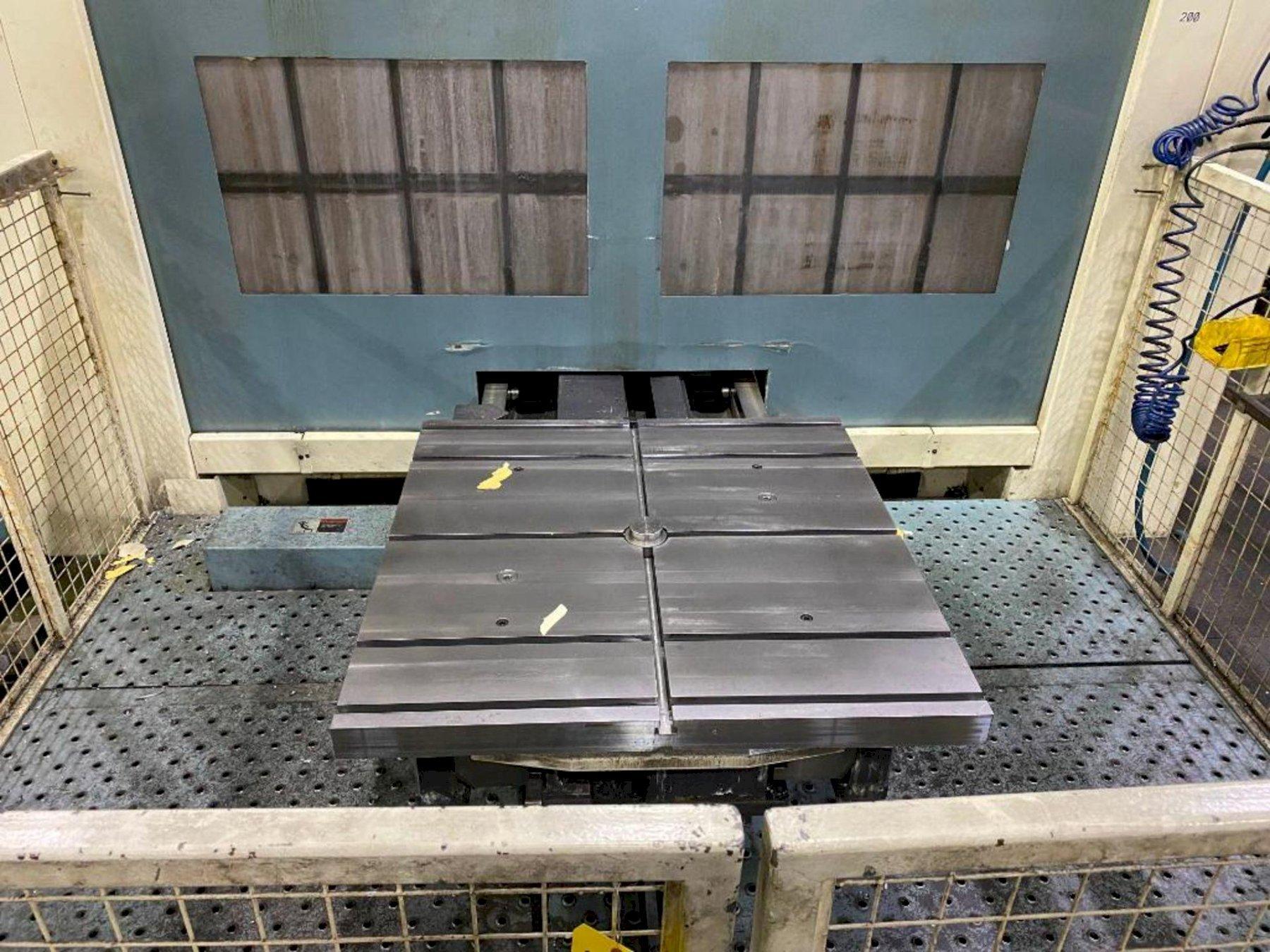

Pallet Length
31.4"
Pallet Width
31.4"
Pallet Load Capacity
5,511 pounds

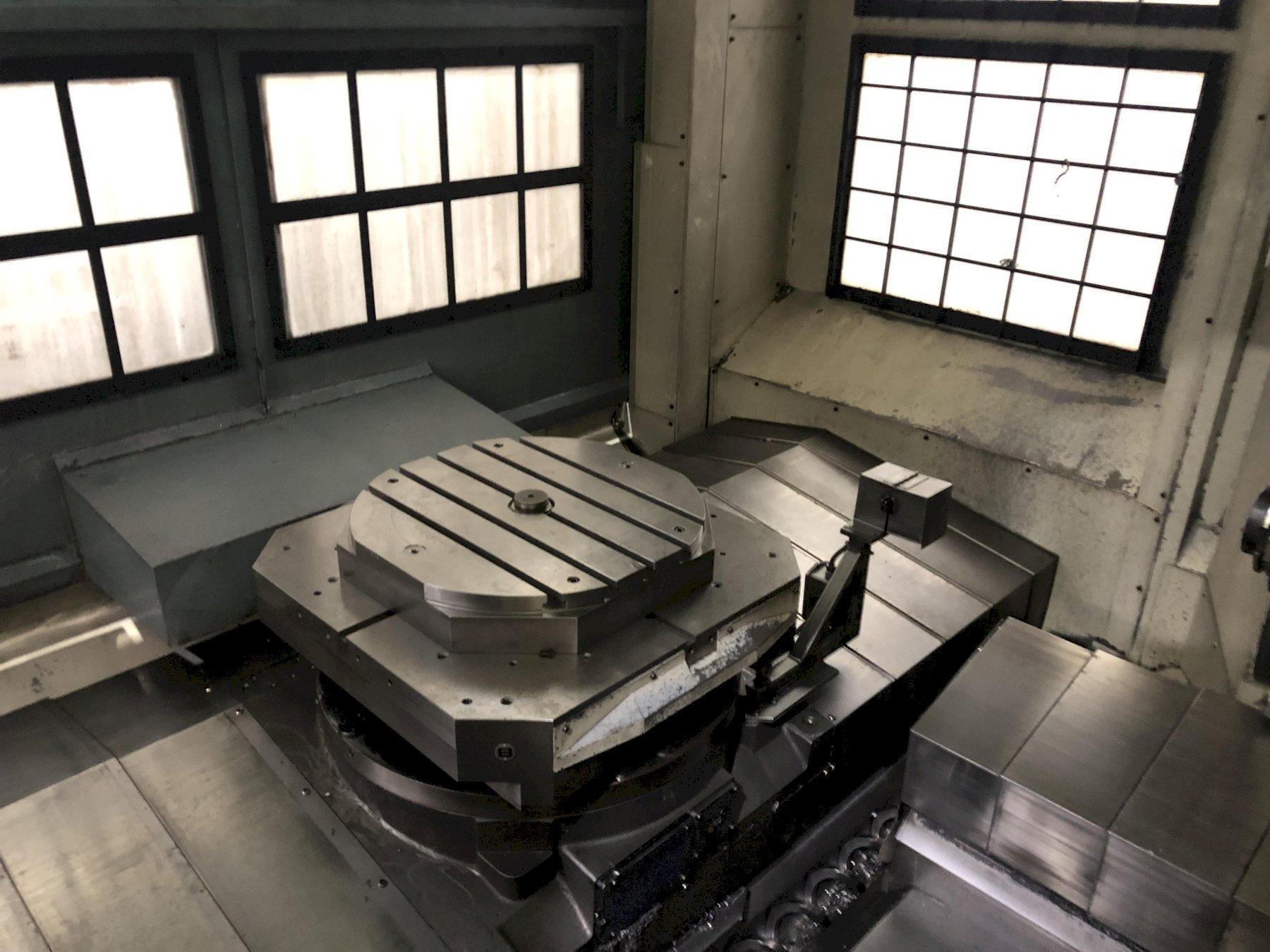

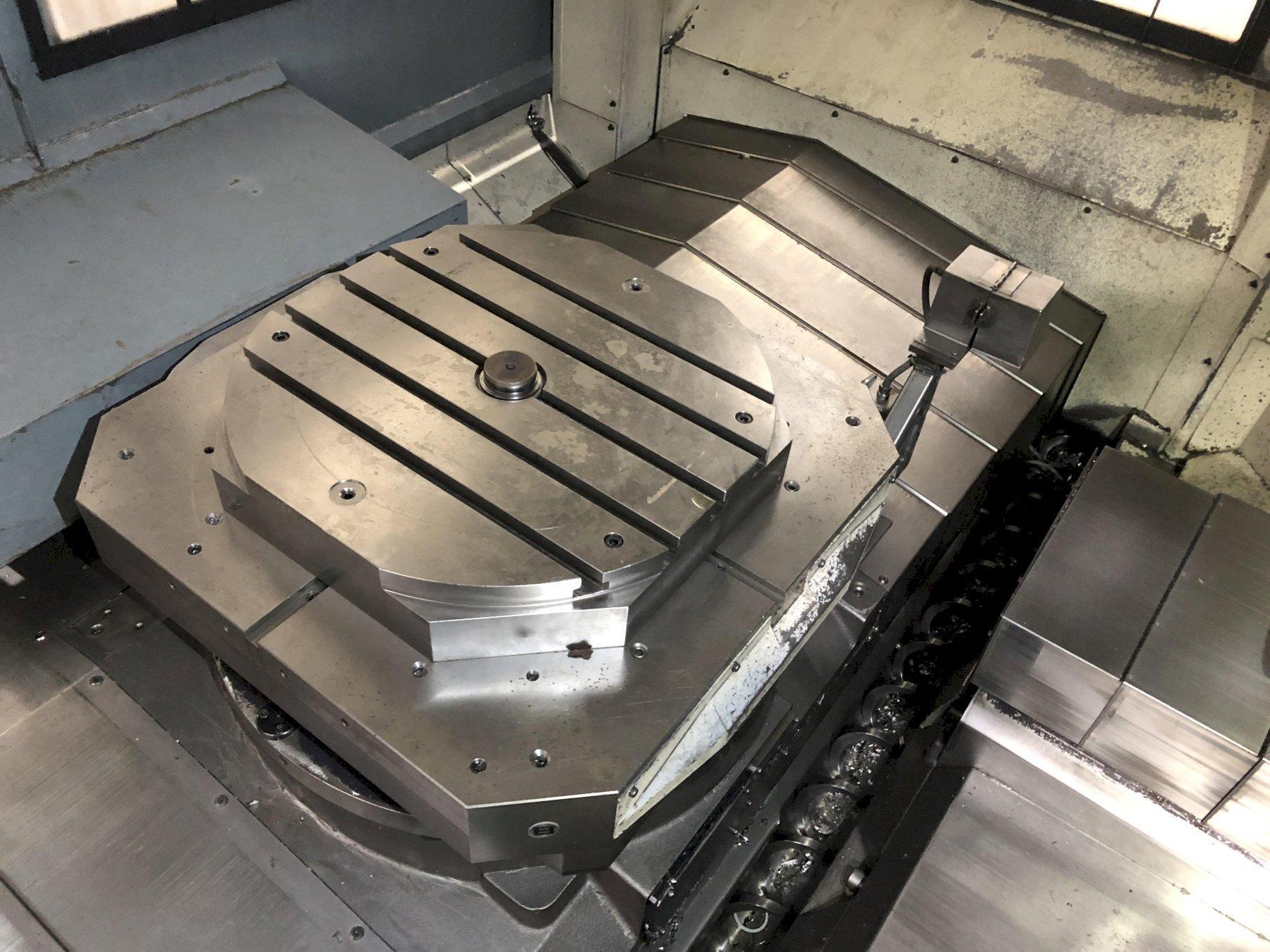

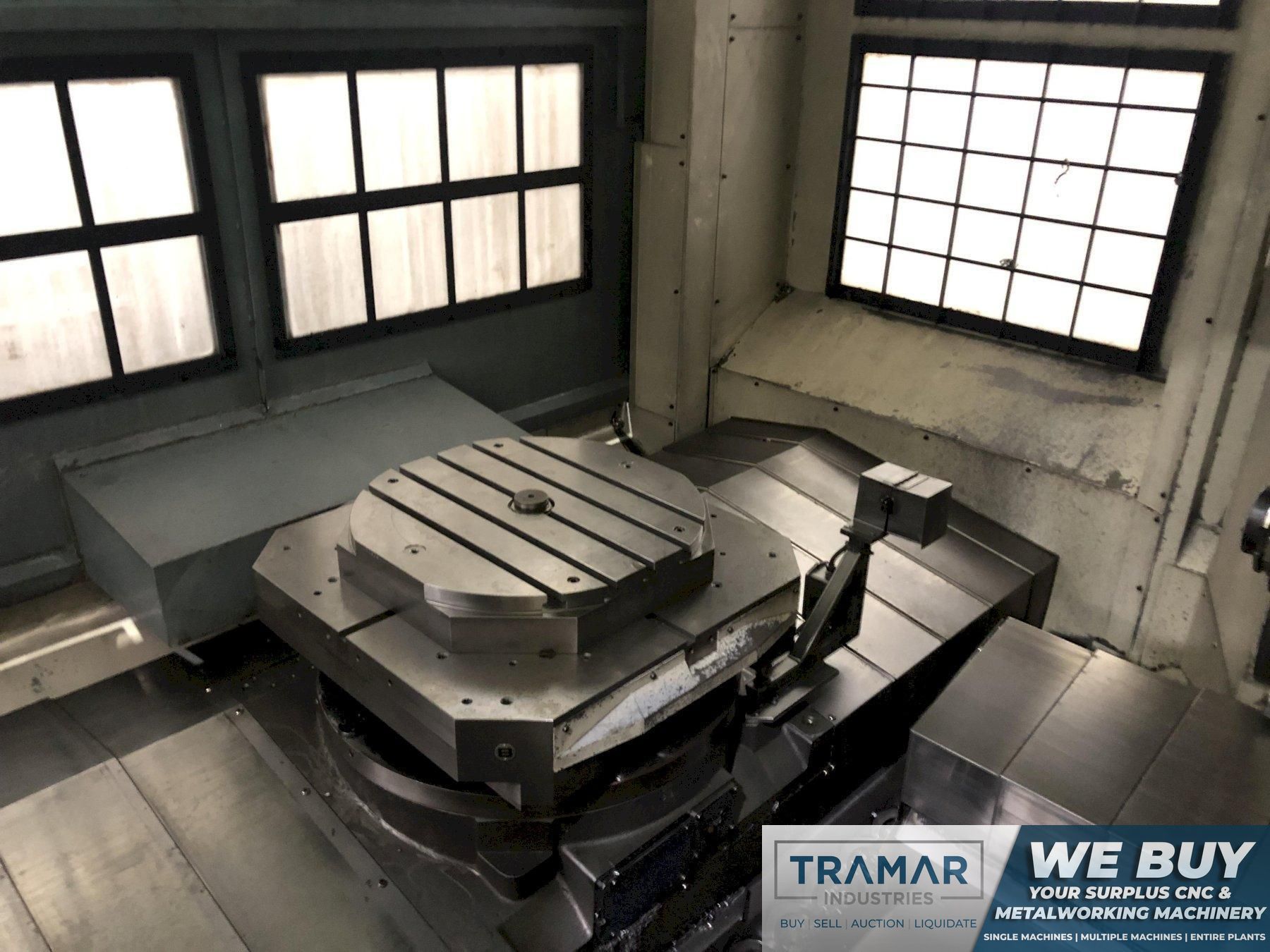

Pallet Indexing (B-Axis)
0.001 deg - Full 4th Axis
X-Axis Travel
60.3"
Y-Axis Travel
48.4"
Z-Axis Travel
40.1"
Rapid Traverse Rate (X/Y/Z)
1,181 ipm

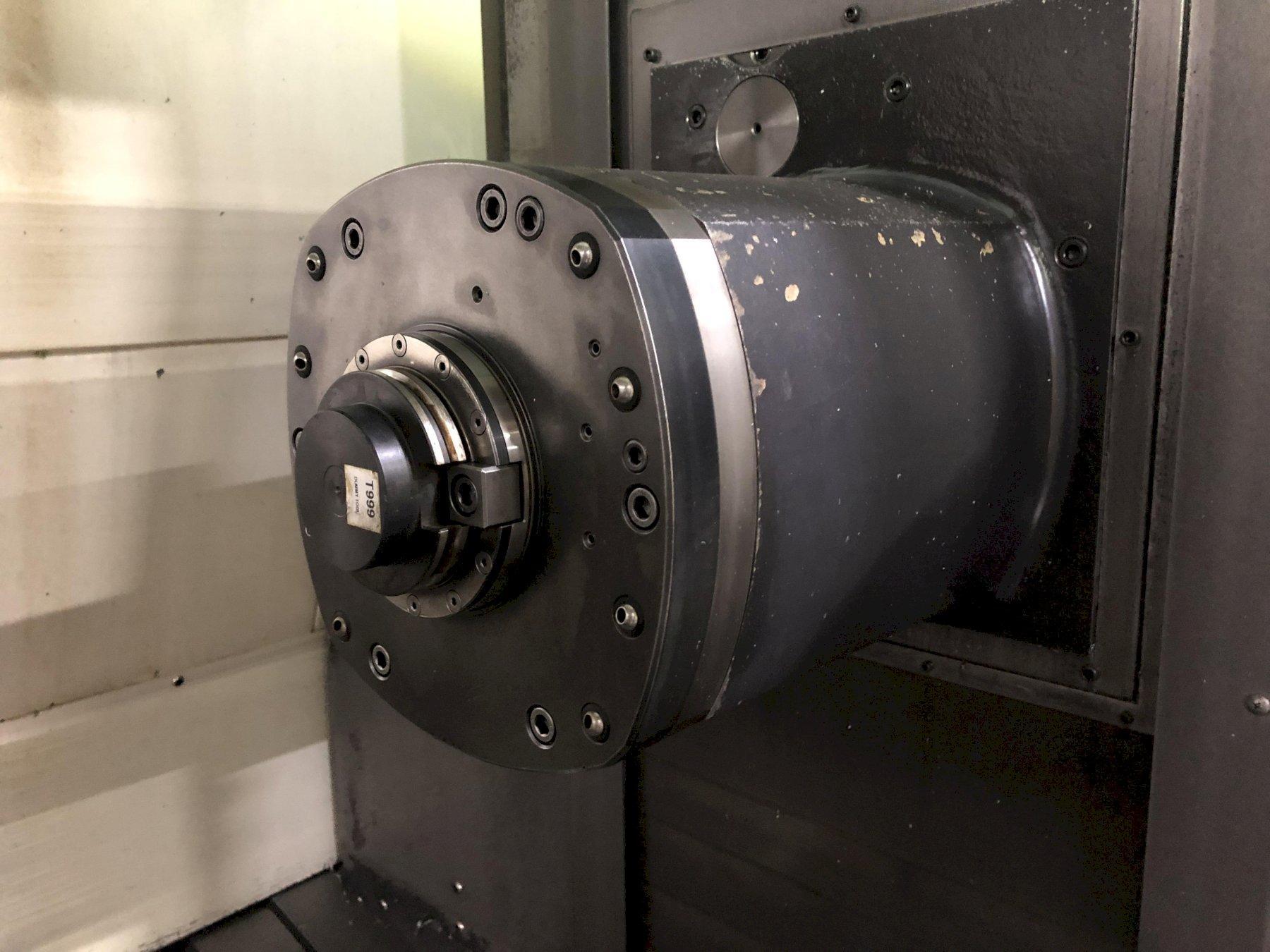

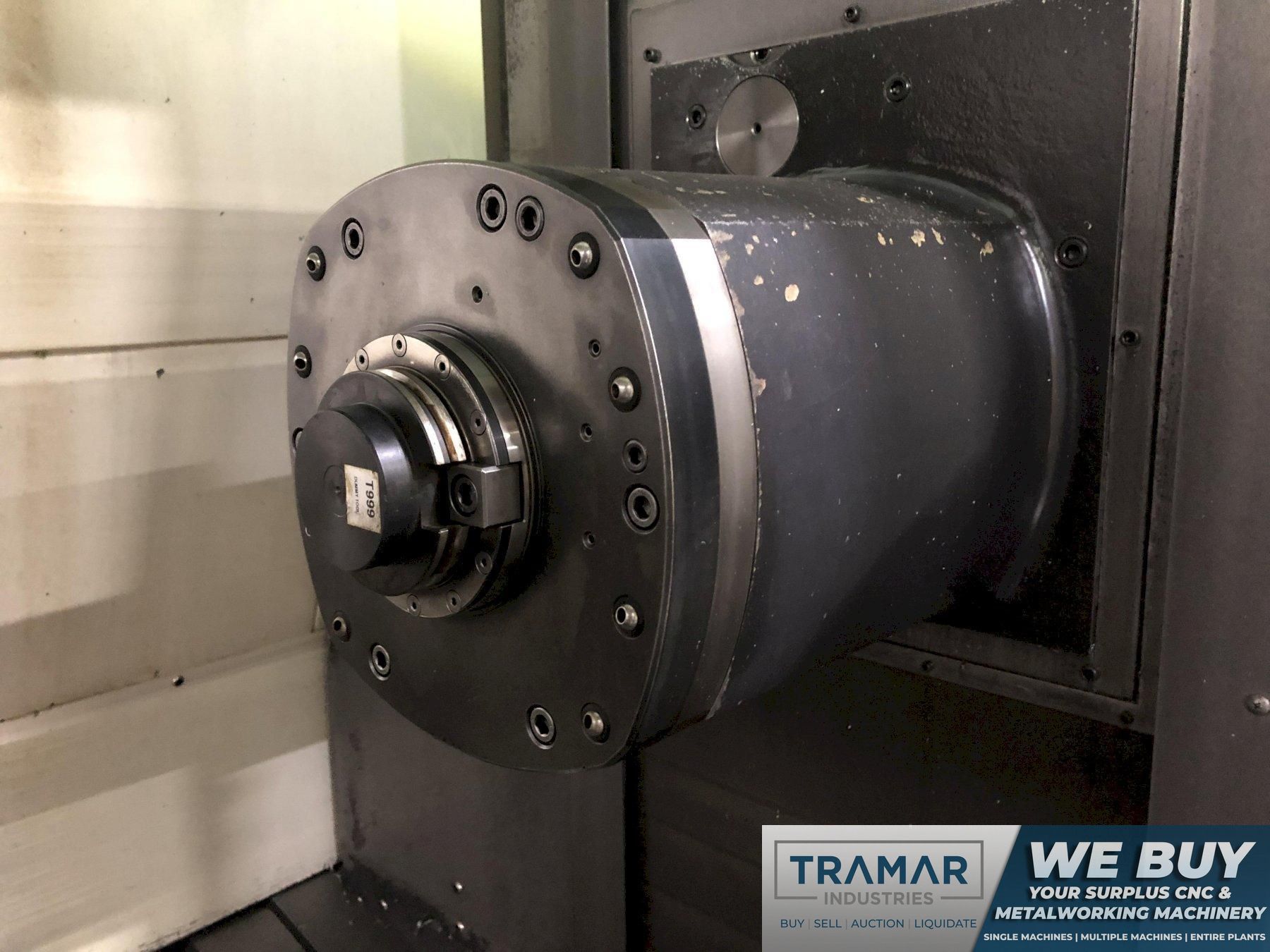

Spindle Taper
CAT 50
Spindle Speed
6,000 rpm
Spindle Motor (HP)
50 hp

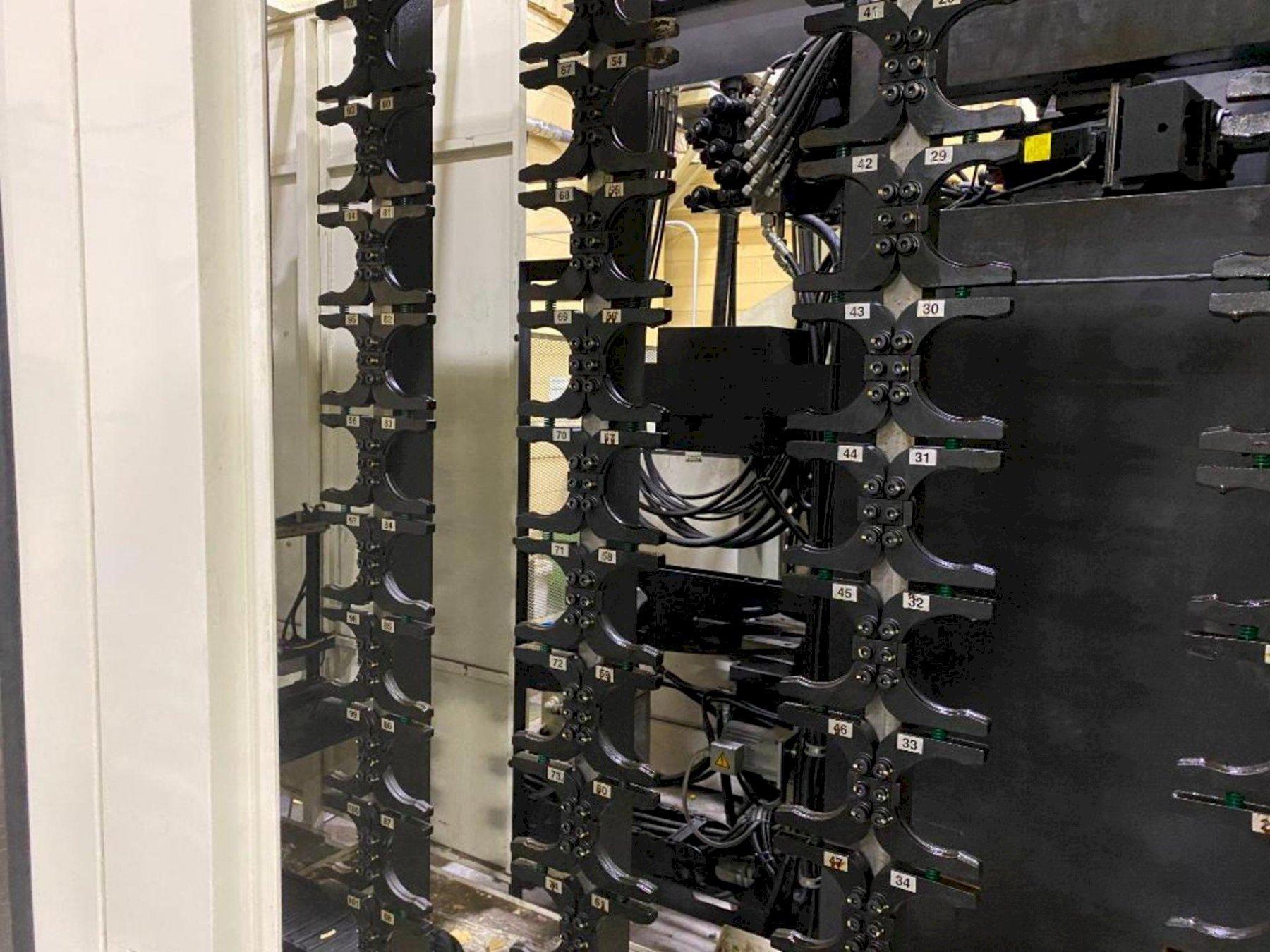

Tool Changer Capacity
178
Coolant Through Spindle
yes
Machine Dimensions
215" x 301" x 165" - Floor Space
Machine Weight
59,000 pounds

Equipped With:

- Fanuc 30iA Control
- Chip Conveyor
- Coolant Tank & Pump
- Full 4th Axis - 0.001 degrees
- Renishaw Probing (Receiver Only - No Tool Probe)
- Big Plus Spindle w/Face Air Blow
- Tool Offset Pairs (999)
- Custom Macro B
- Parts Program Storage (8MB)
- Tool Offset Memory C
- Embedded Ethernet Function (Fast Ethernet Software)
- High Speed Skip Function
- High Speed HRV3 Function
- Rigid Tapping
- AI Contour Control I

The Niigata HN80D is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
