Hankook Protec 9NB - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Protec 9NB
Year: 2012
Stock #: 12944 Sold
Highlights:
Fanuc 21i-TB CNC Control
21" Samchully Chuck
79" Center Distance
6.3" Bar Capacity
Tailstock

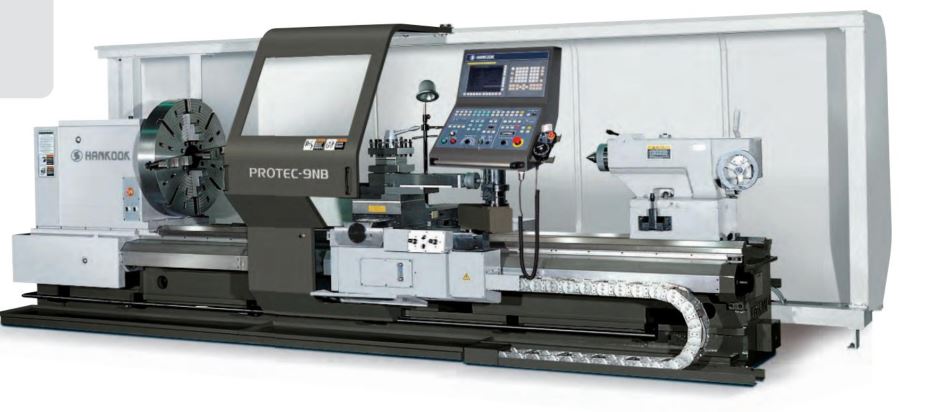

2012 HANKOOK Protec 9NB - CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
Control Type
Fanuc 21i-TB
Chuck Size
21"
Swing
37.4"
Turning Diameter
37.4"
Center Distance
79"
Bar Capacity
6.3"
X Axis Travel
21.1"
Z Axis Travel
73"
Rapid Traverse (X/Z)
236
Spindle Speed (RPM)
800
Main Motor
35 HP
Turret Capacity
8
Y Axis
no
Dimensions
176" x 87" x 73"
Weight
15,500 pounds
Live Tooling
no
Sub Spindle
no
# Axis
2

Equipped With:

- Fanuc 21i-TB Control
- Chip Conveyor
- Coolant Tank
- 21" Samchully Chuck (MH-221)
- 7" Tailstock Quill Diameter
- (8) Station Duplomatic Bolt on Turret
- Available Manuals


The Hankook Protec 9NB is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
