Haas VF-9/40 - Vertical Machining Centers

Share Machine
Specifications Print Specs
Model: VF-9/40
Year: 2011
Stock #: 2011 Sold
Highlights:
- Remote LCD Handheld MPG
- Renishaw Tool Touch Probe
- 5 Axis Trunion Table (Model TR310)
- 40 Station Sidemount ATC
- 10,000 RPM | 30HP Spindle Upgrade
- Travels (X/Y/Z): 84"/40"/30"

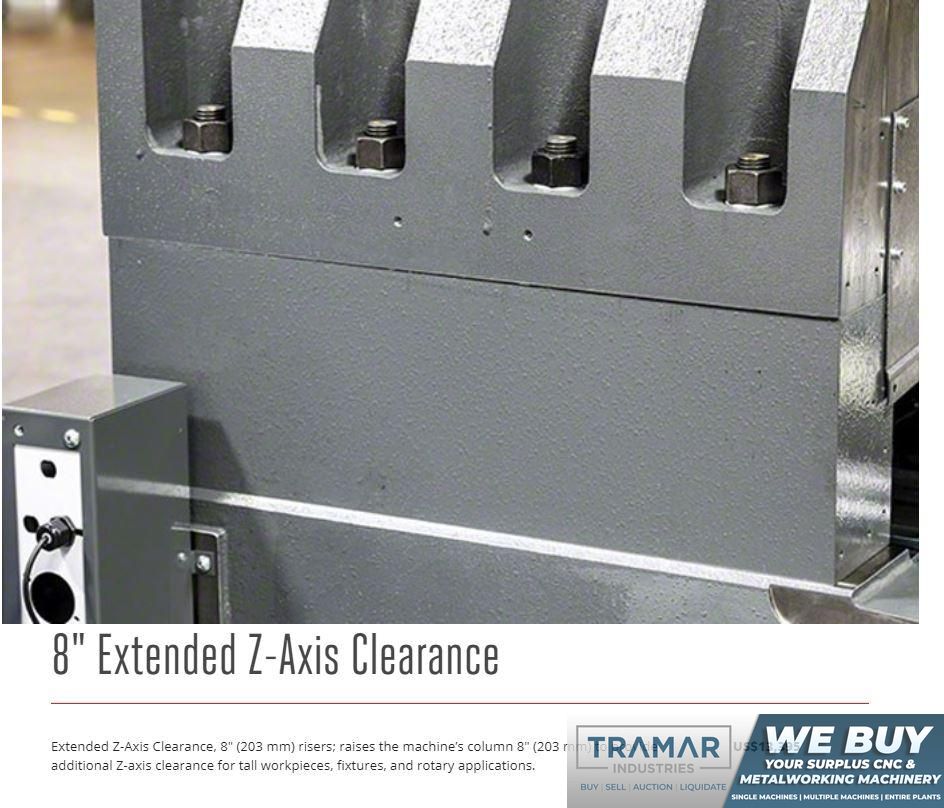

- 8" Extended Z Axis Clearance

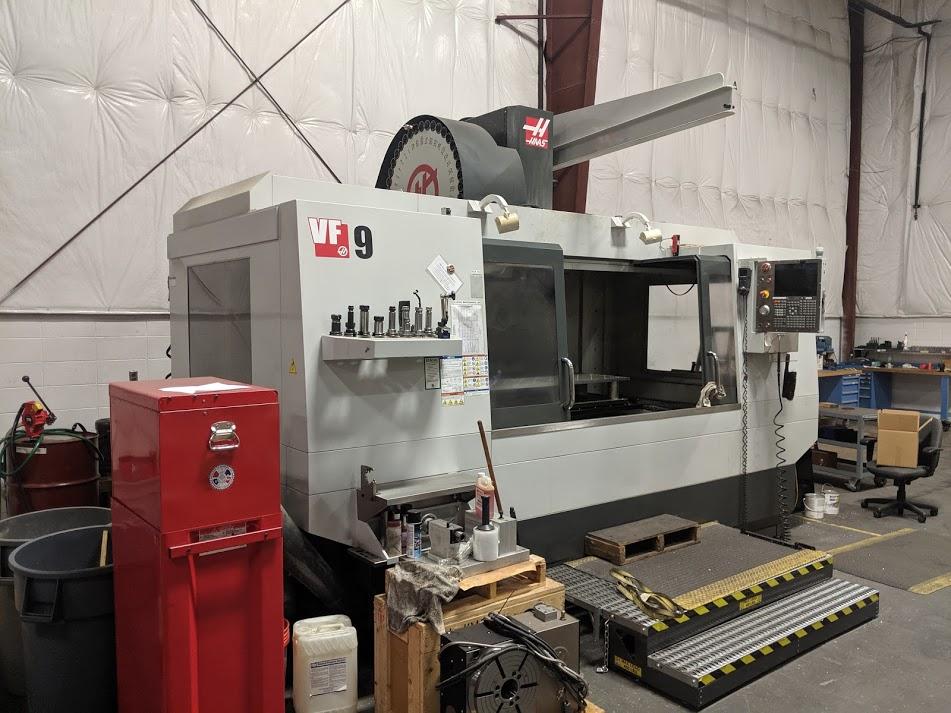

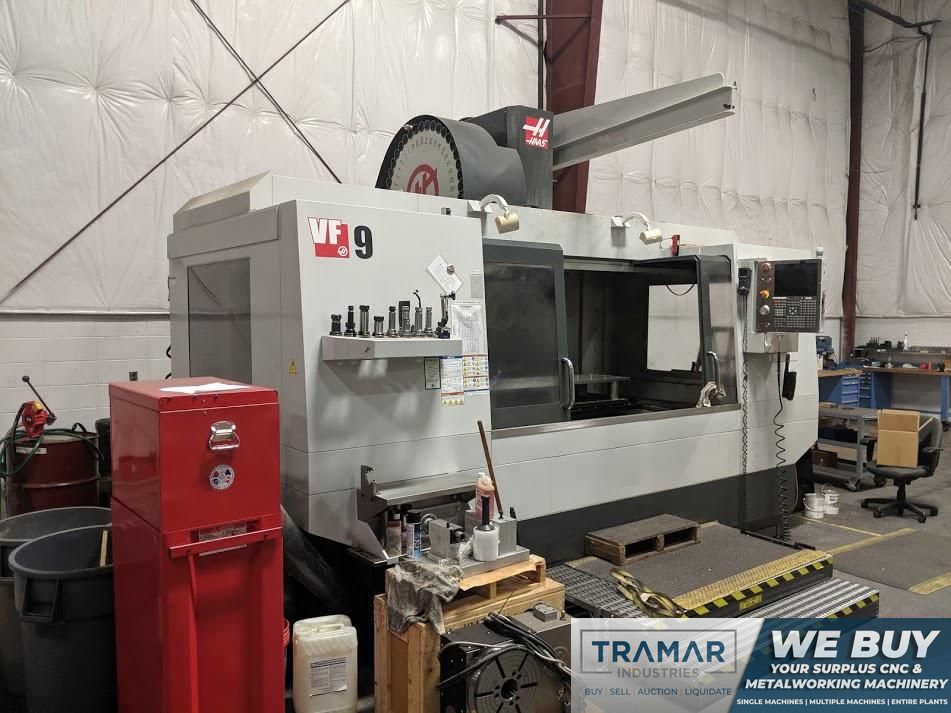

2011 Haas VF-9/40 w/Haas TR310 5 Axis Trunion - Vertical Machining Center
Machine Specifications
# Axis
5
CNC Control
yes
Control Type
Haas

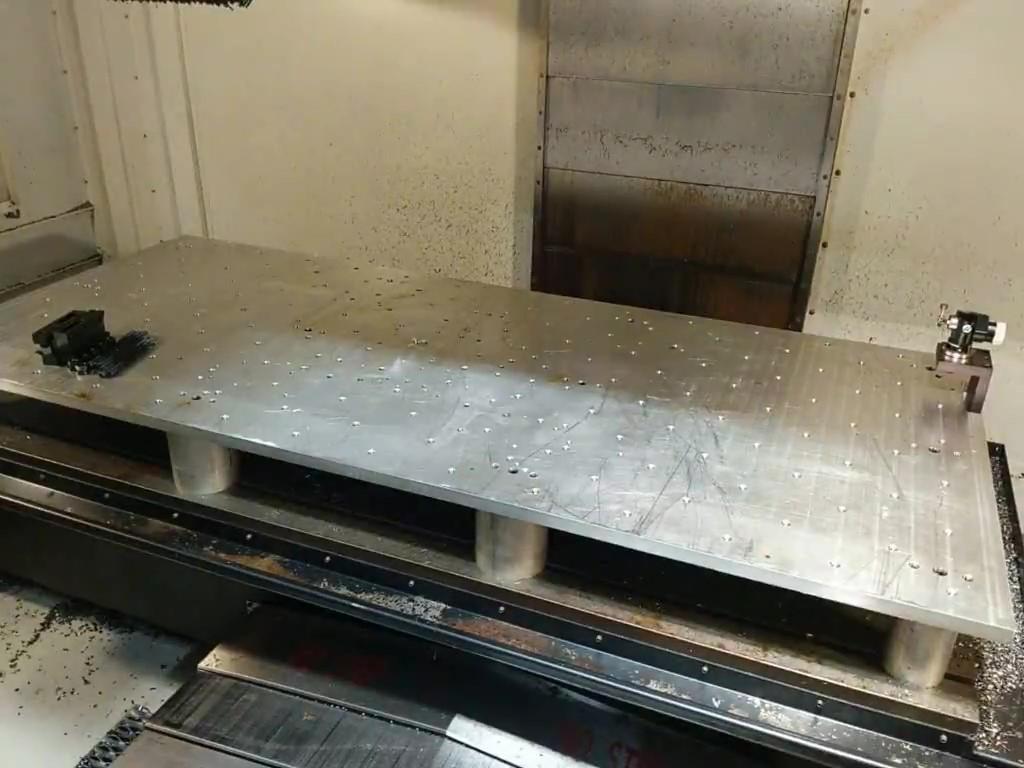

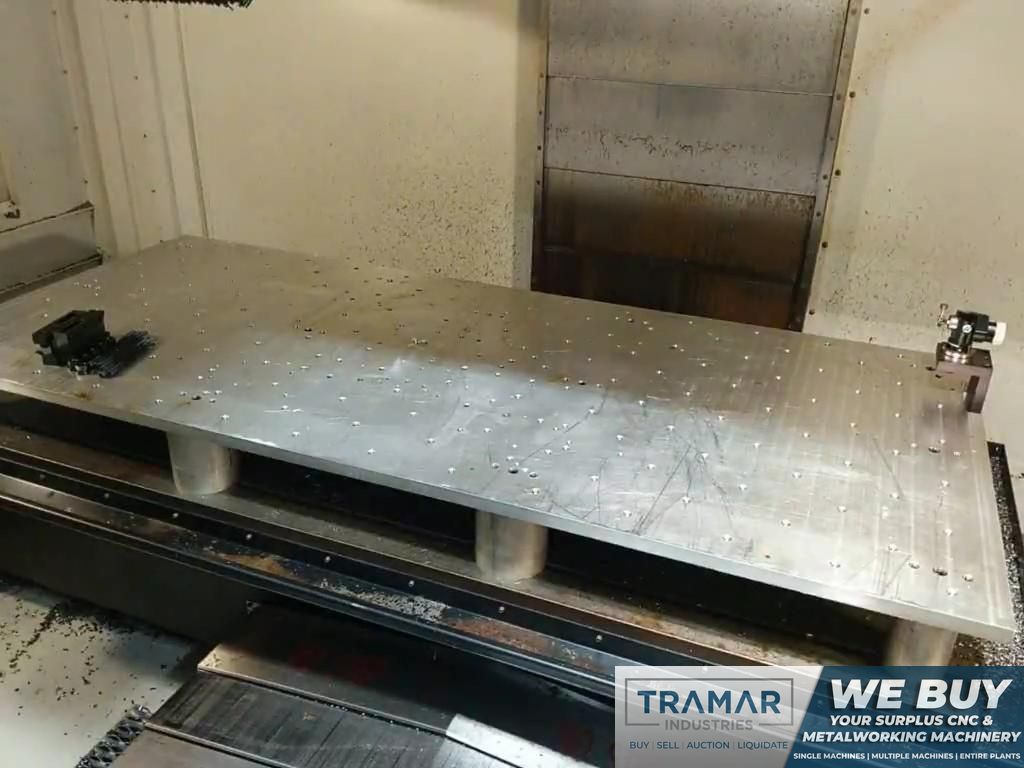

Table Size
84" x 36"
Table Capacity
4,000 pounds
X-Axis Travel
84"
Y-Axis Travel
40"
Z-Axis Travel
30"
Spindle Speed (RPM)
10,000
Spindle Taper
CAT 40
Spindle Motor
30 HP
Tool Changer Capacity
40
Coolant Thru Spindle
yes
Weight
28,300 pounds

Equipped With:

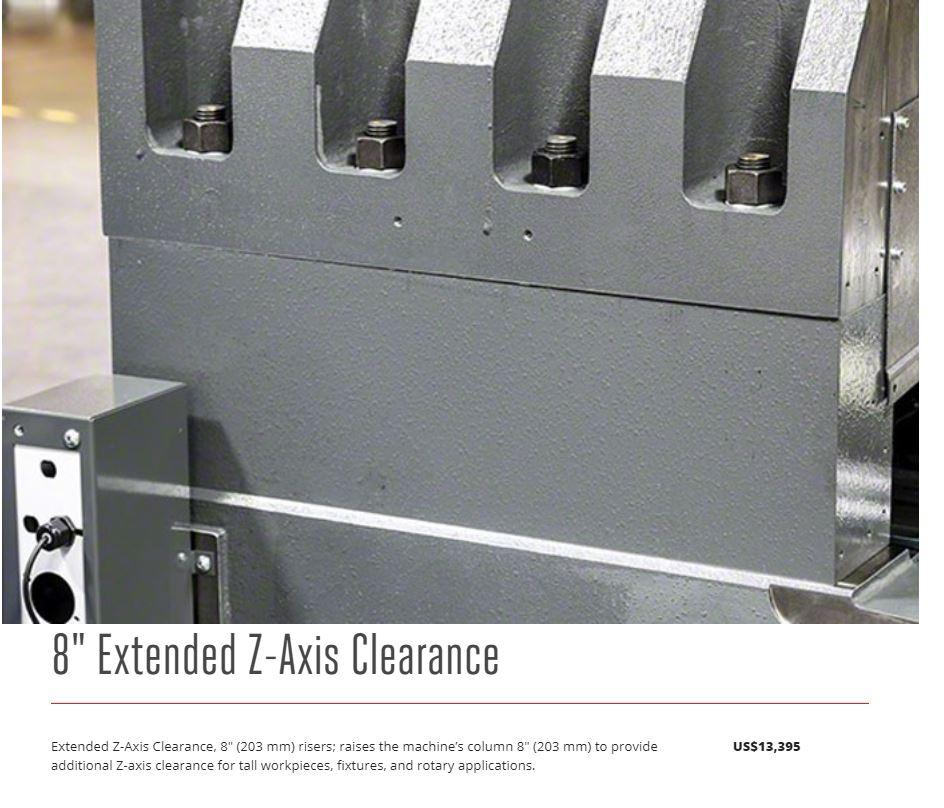

- 8" Extended Z Axis Clearance
- Haas 5 Axis Trunion Table (Model: TR310)

- 40 Station Side Mount Tool Changer
- Ethernet Interface w/ USB Port
- Rigid Tap
- Tool Life Management
- Tool Load Monitoring
- Visual Part Programming System
- Macro Programming
- Spindle Orientation
- Coordinate, Rotation and Scaling
- 10,000 RPM 30 HP Spindle
- High Speed Machining
- Automatic Air Nozzle
- Wireless Intuitive Probing System- Renishaw
- High Intensity Lighting
- 4th Axis Drive and Wiring
- 5th Axis Drive and Wiring

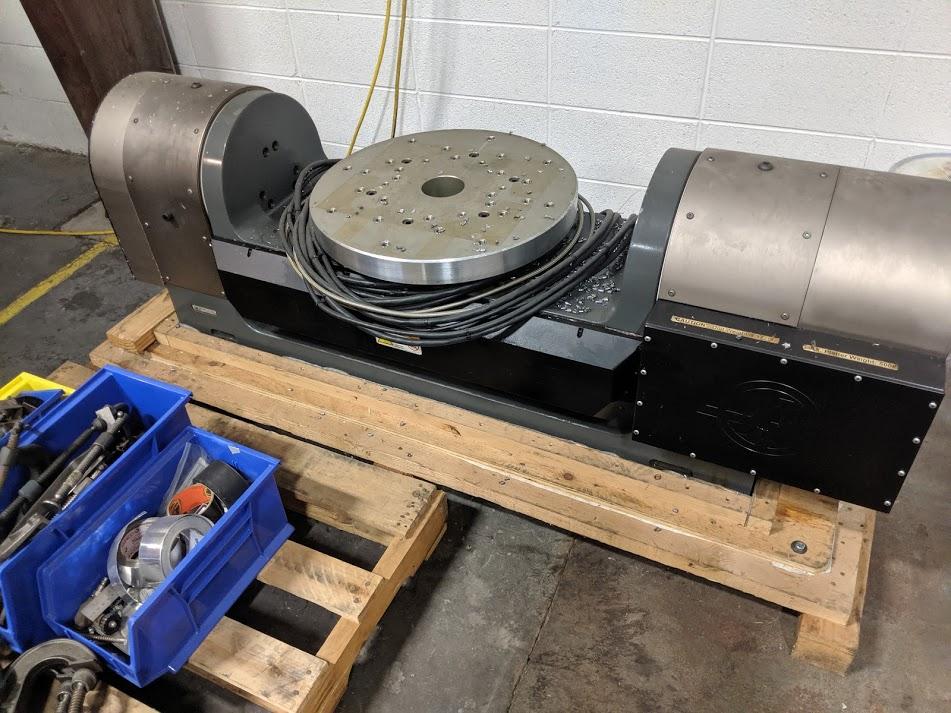

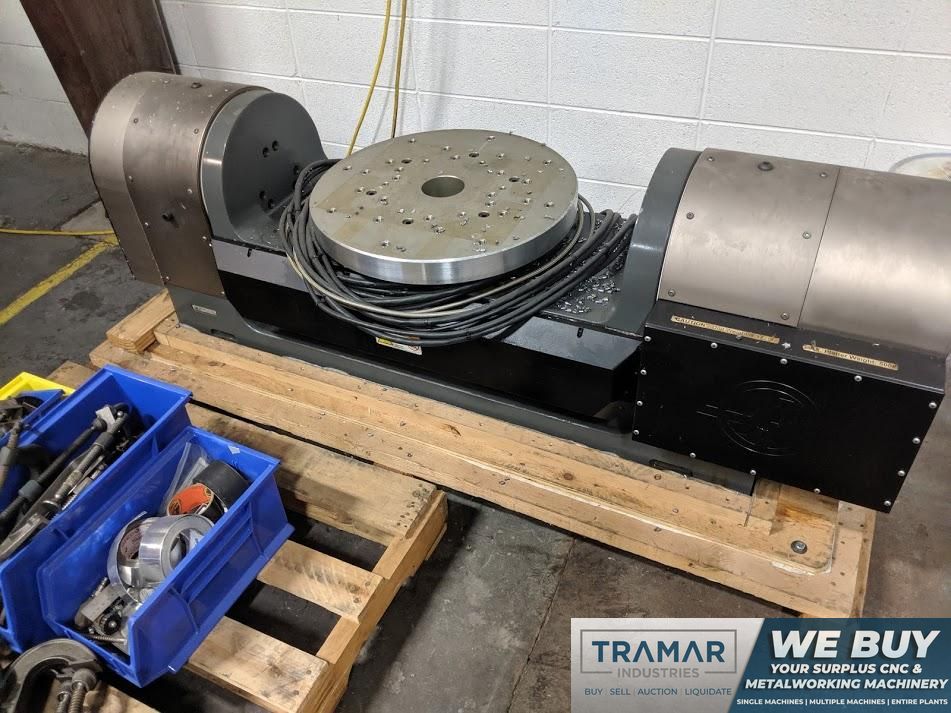

- Haas 5 Axis Trunion Model:TR310, 310MM Tilting 2-Axis Trunnion Rotary Table

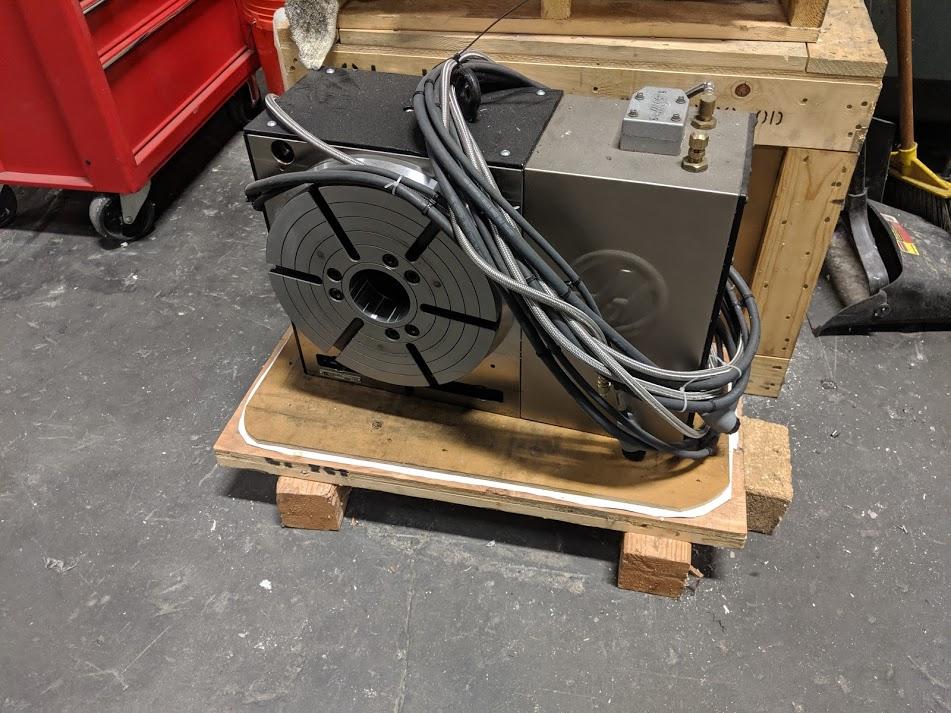

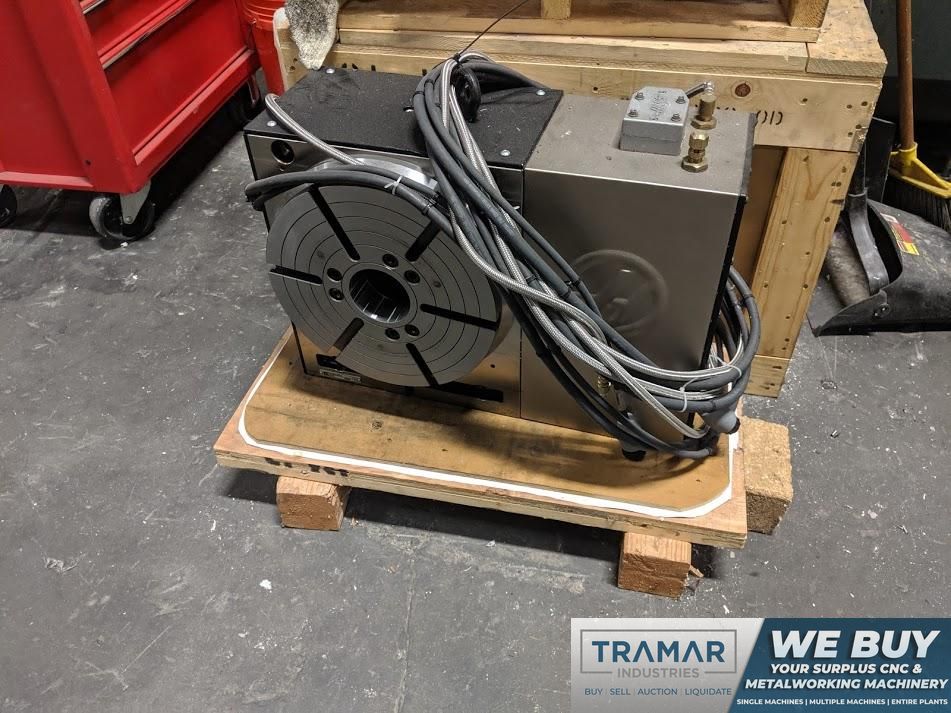

- Haas HRT-210 4th Axis Rotary Table
- Overhead Loading Crane
- High Pressure Coolant Through Spindle











The Haas VF-9/40 is an exclusive part of our Vertical Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
