Doosan Puma 300C - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Puma 300C
Year: 2011
Stock #: 13634 Sold
Highlights:
Fanuc i Series Control
Tailstock
Tool Presetter

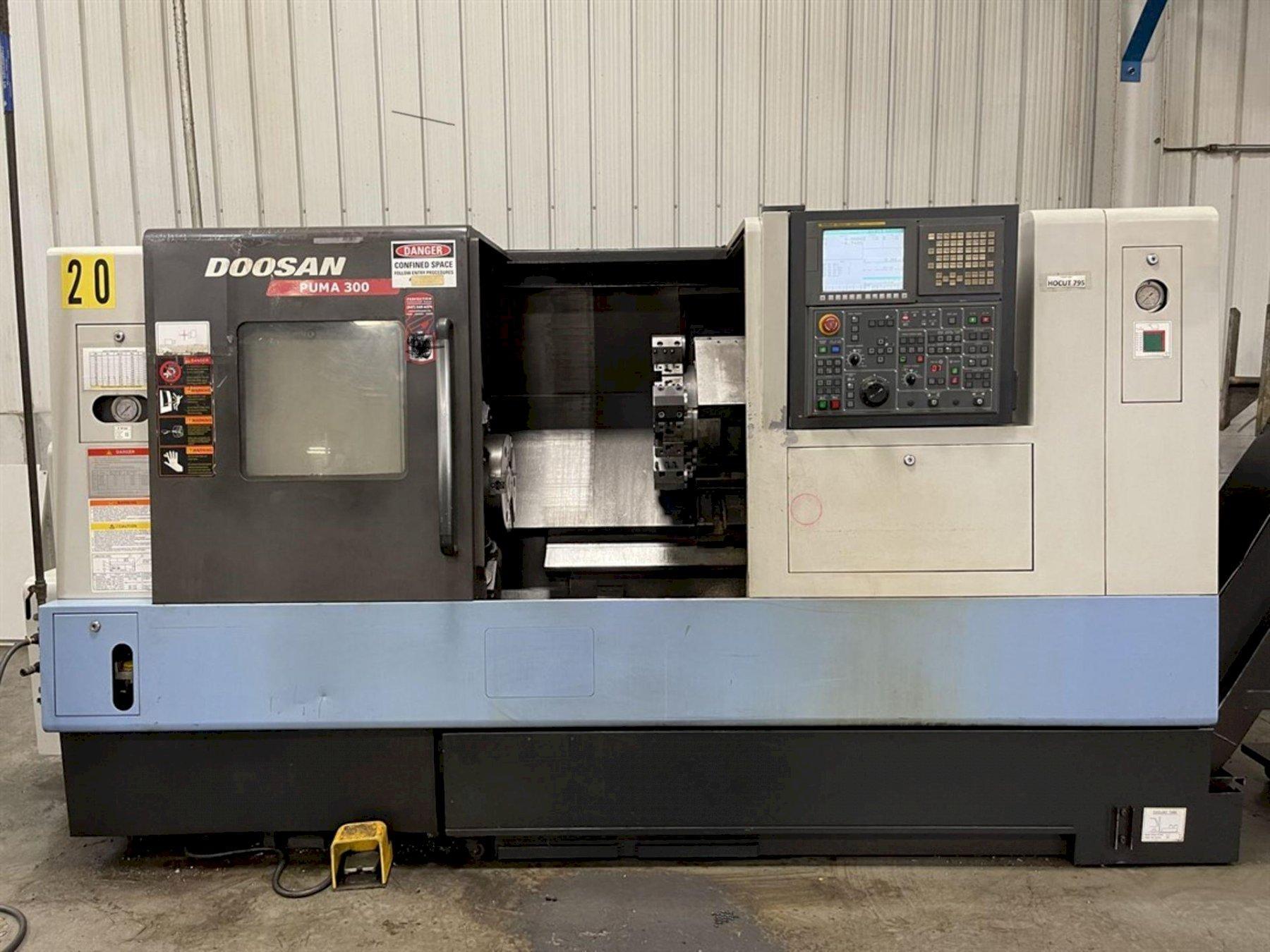

2011 Doosan Puma 300C CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
CNC Control
Fanuc i Series
# Axis
2
Swing
23.23"
Turning Diameter
15.74"
Center Distance
24.8"

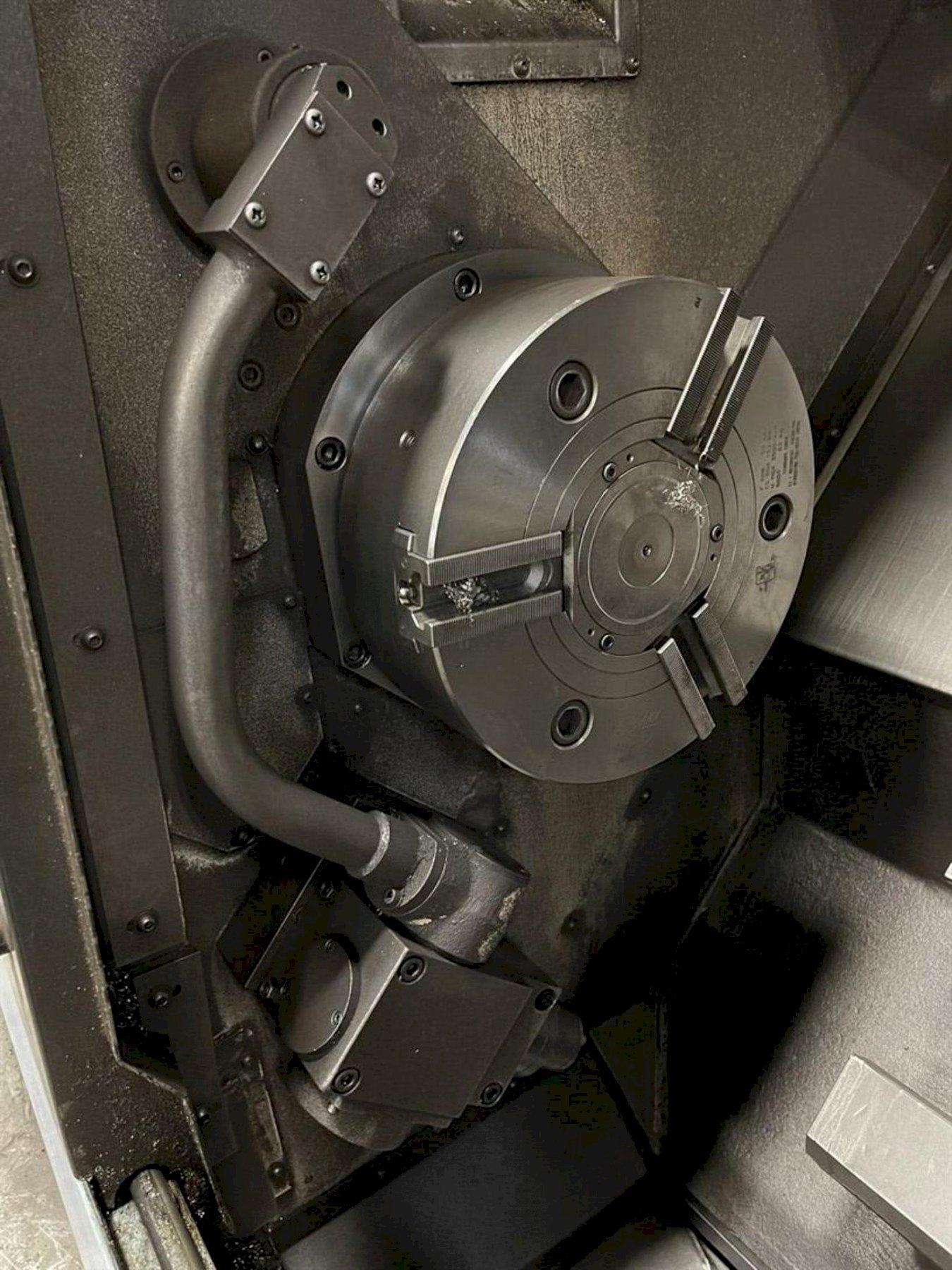

Chuck Size
12"
Bar Capacity
4.06"
X Axis Travel
11.1"
Z Axis Travel
25.6"
Rapid Traverse (X/Z)
630/787 ipm
Spindle Nose
A2-11
Spindle Speed
2,800 rpm
Main Motor
30 hp

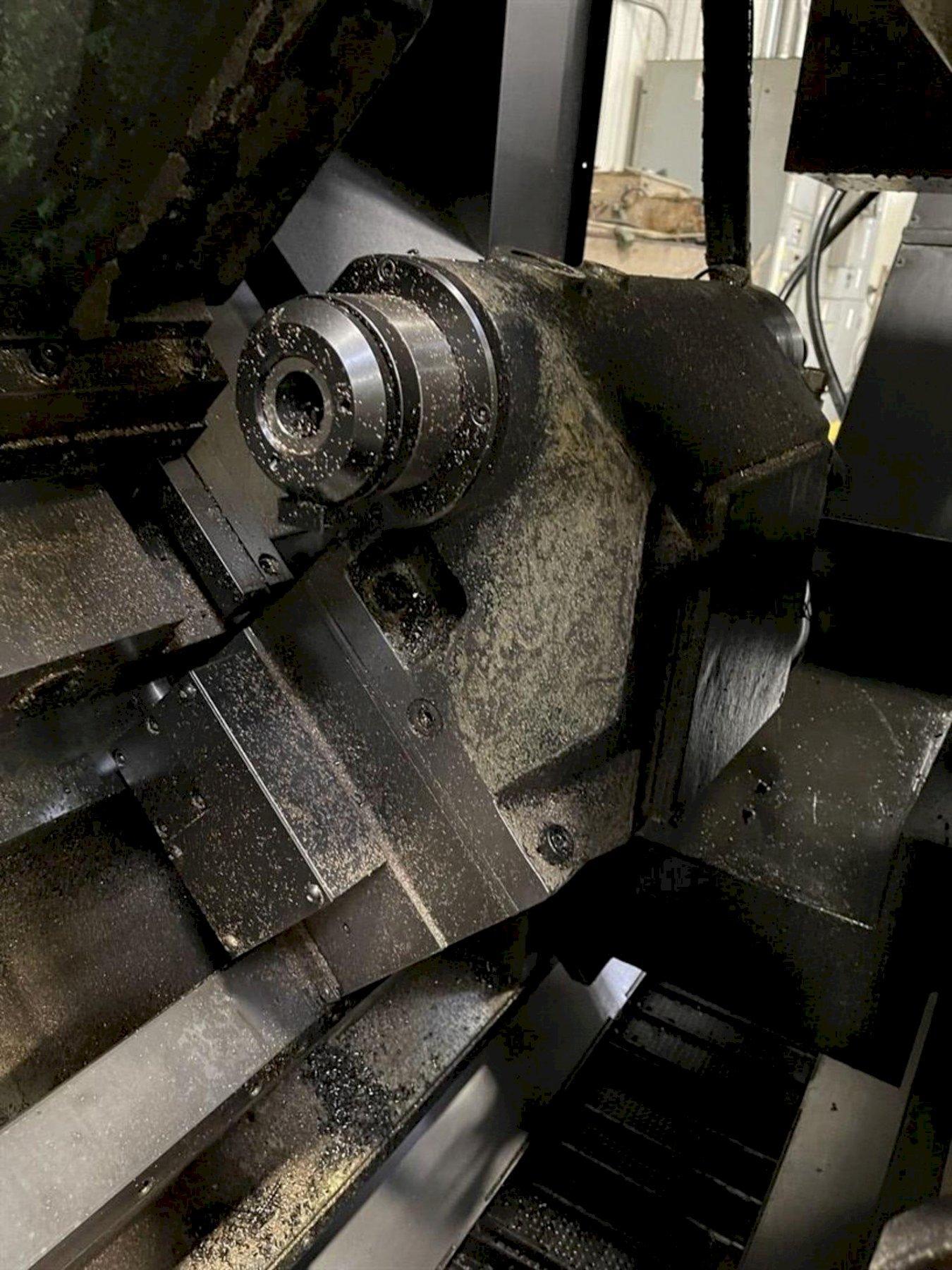

Tailstock
yes
Live Tooling
no
Y Axis
no
Sub Spindle
no

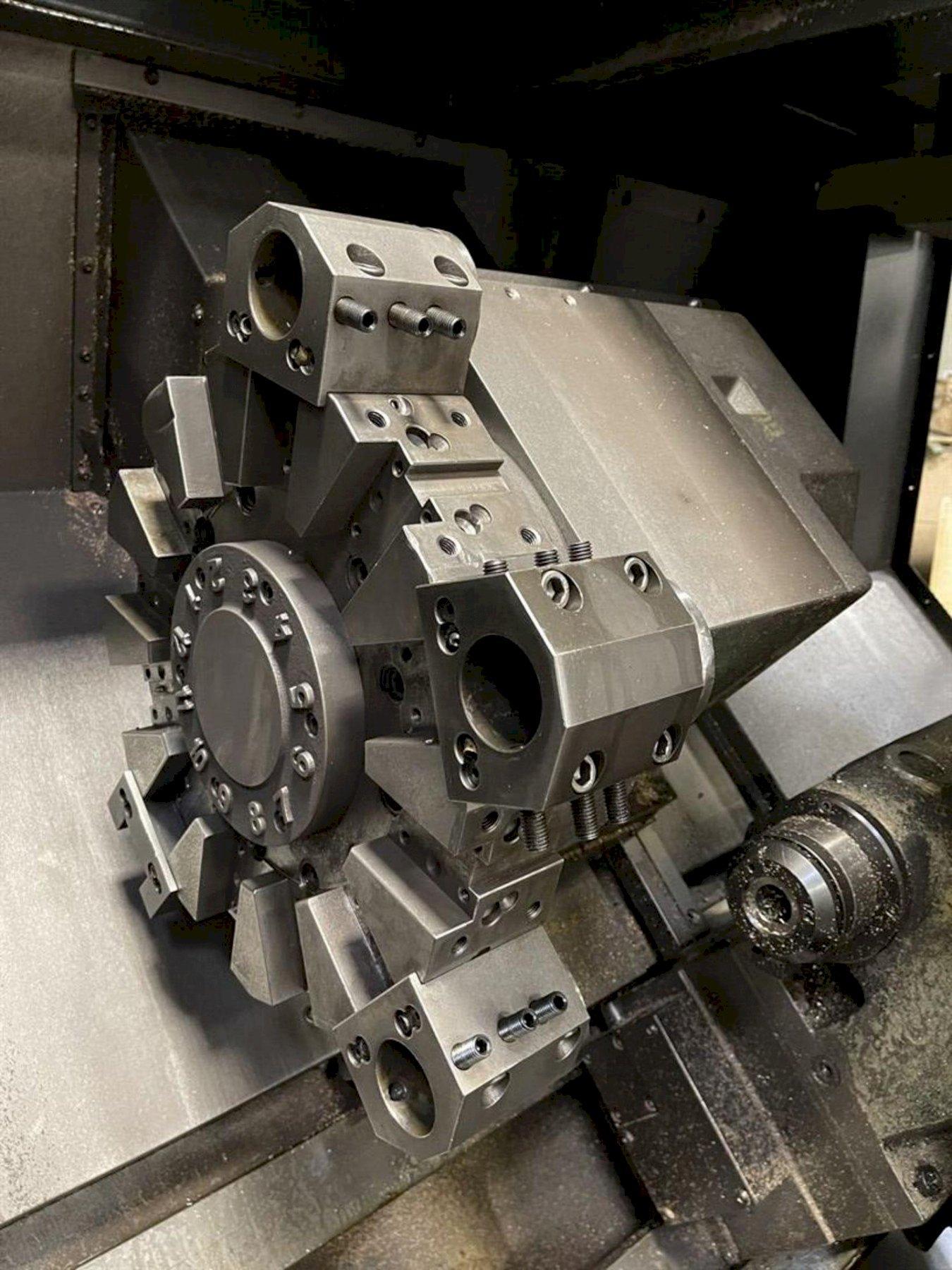

Turret Capacity
12
Machine Dimensions
180" x 85" x 91"
Machine Weight
14,750 pounds

Equipped With:

- Fanuc i Series Control
- Chip Conveyor
- Coolant Tank
- Tool Presetter
- Tailstock

The Doosan Puma 300C is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
