Doosan Puma 280LM - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Puma 280LM
Year: 2008
Stock #: 13101 Sold
Highlights:
Fanuc 21i-TB CNC Control
Live Tooling
Manual Guide i
Tailstock

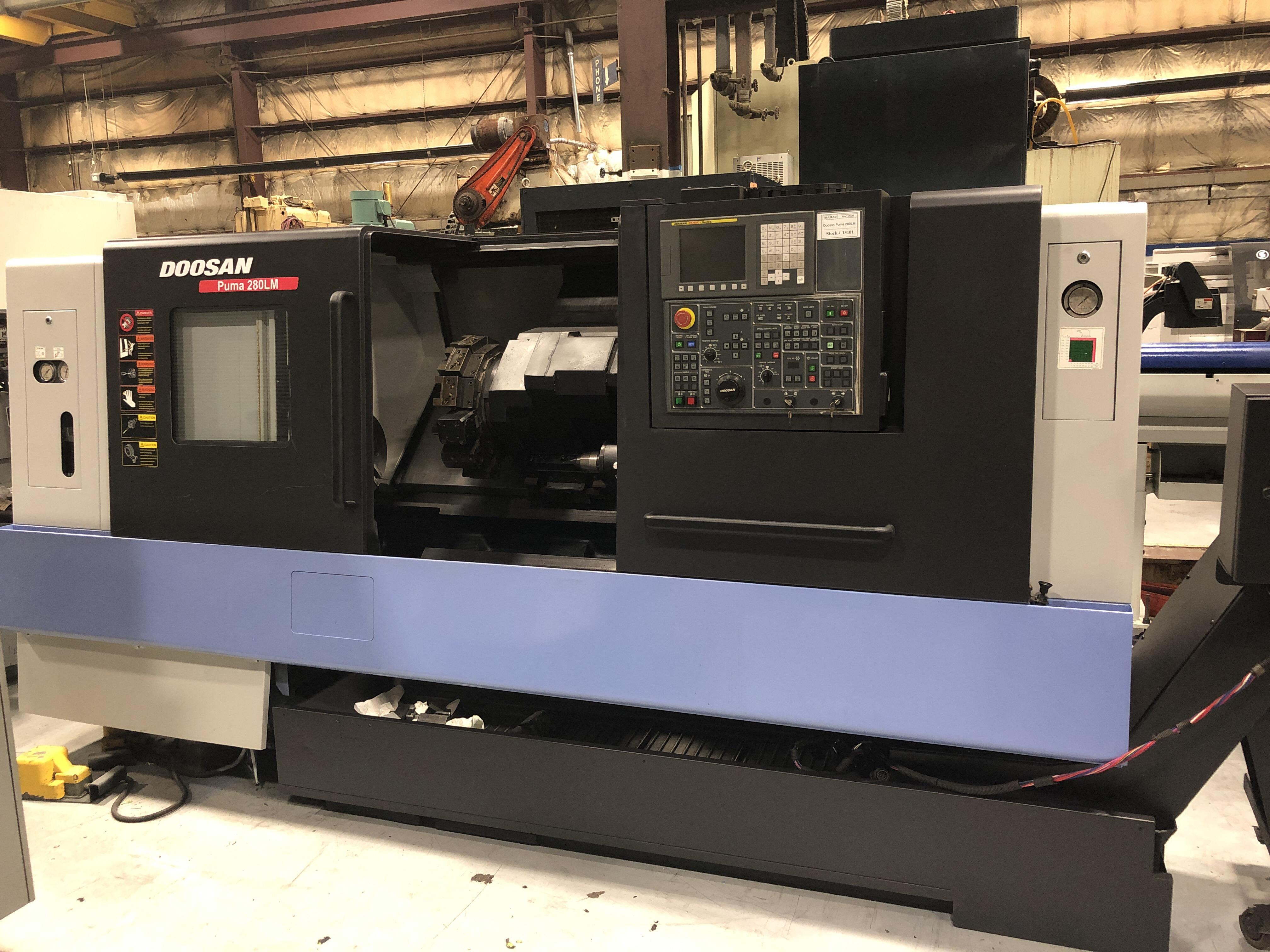

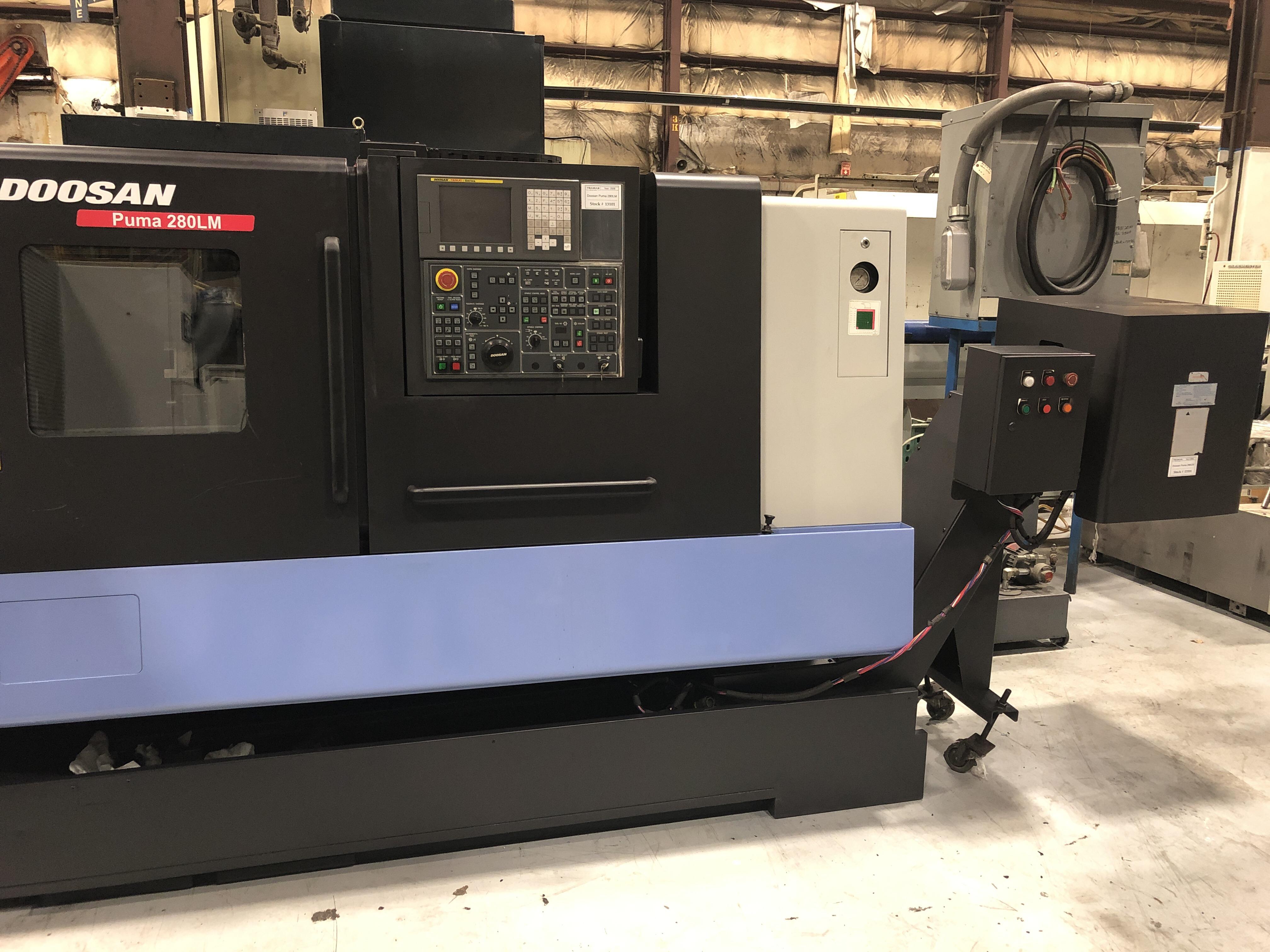

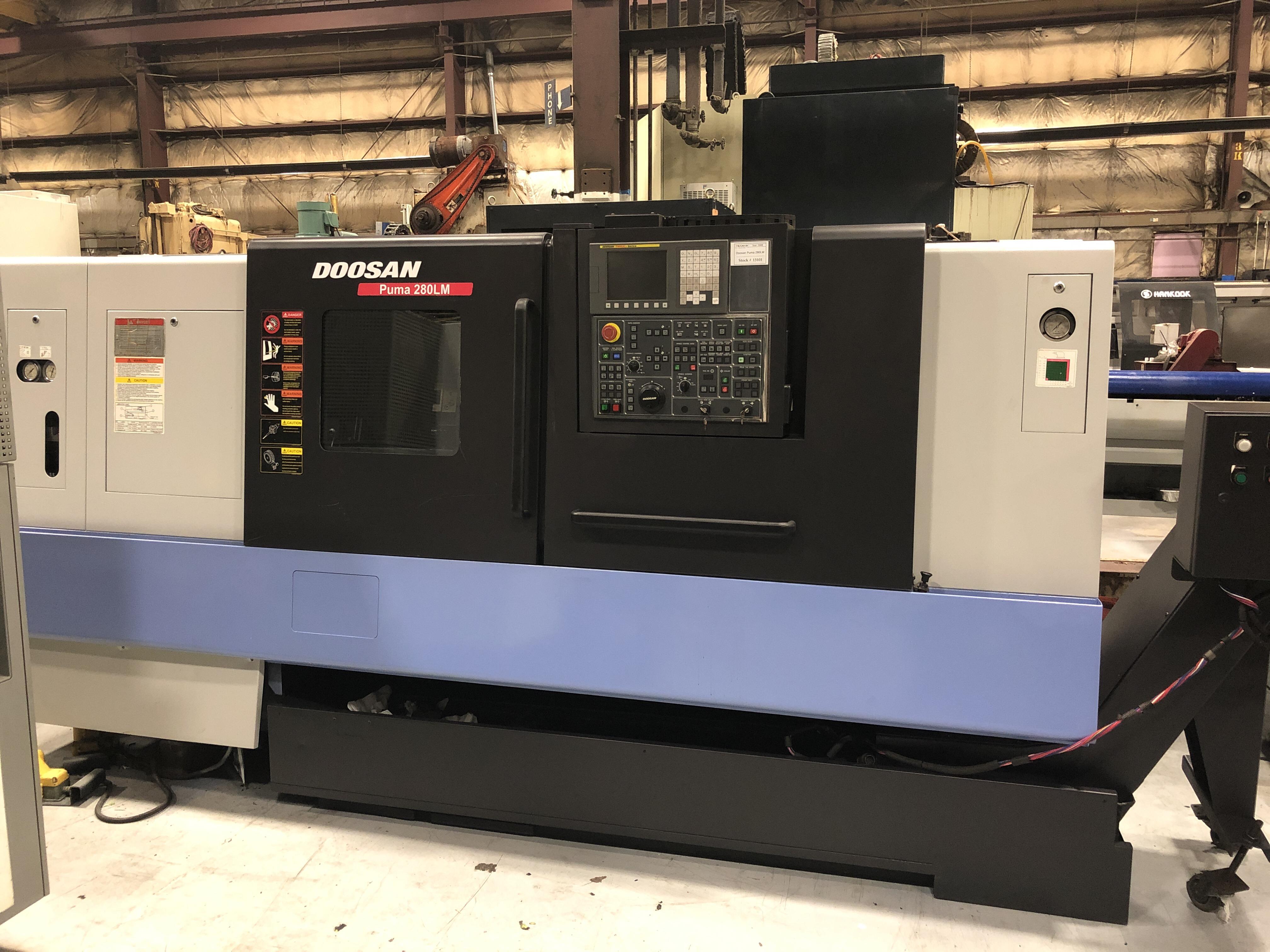

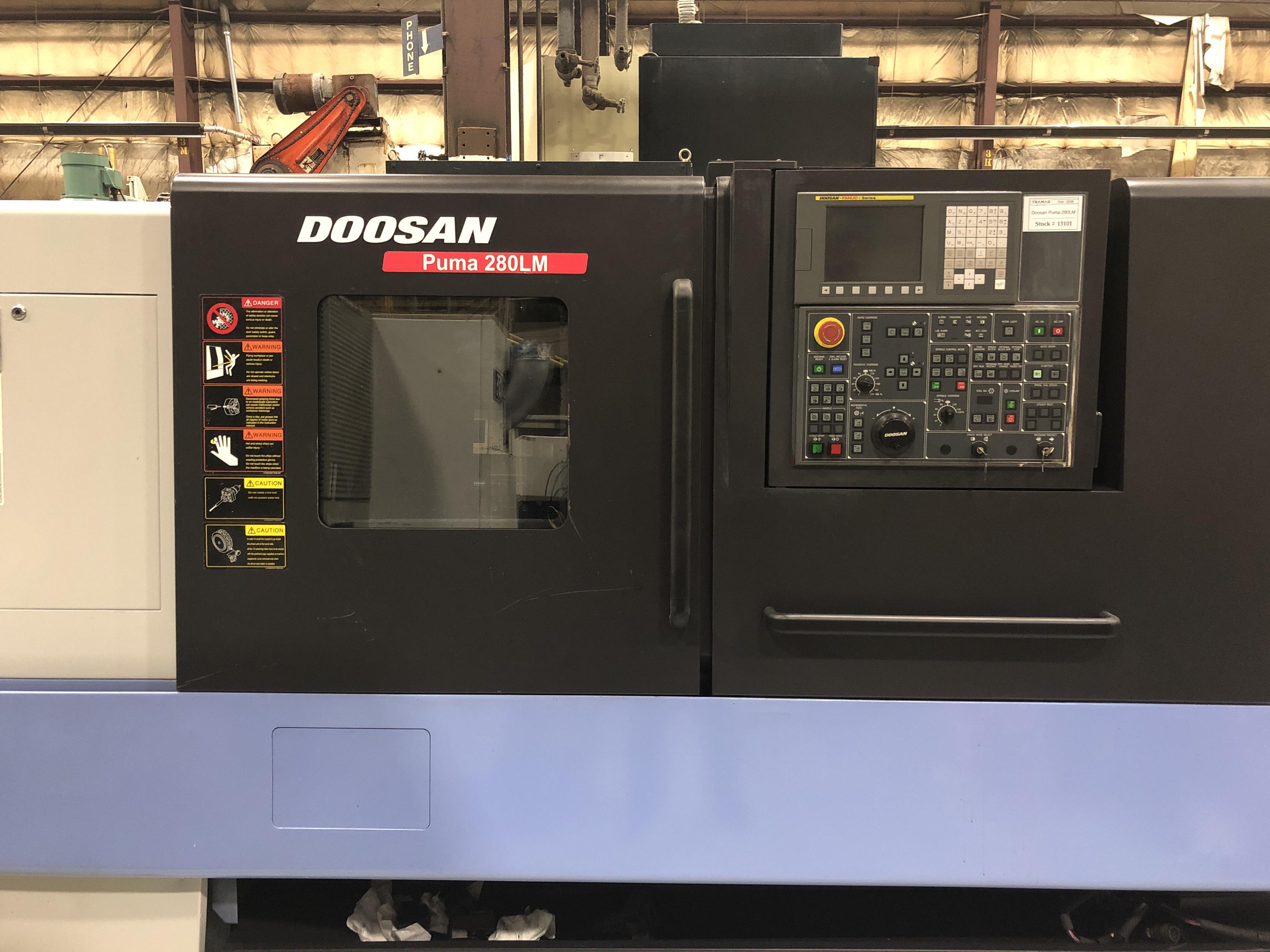

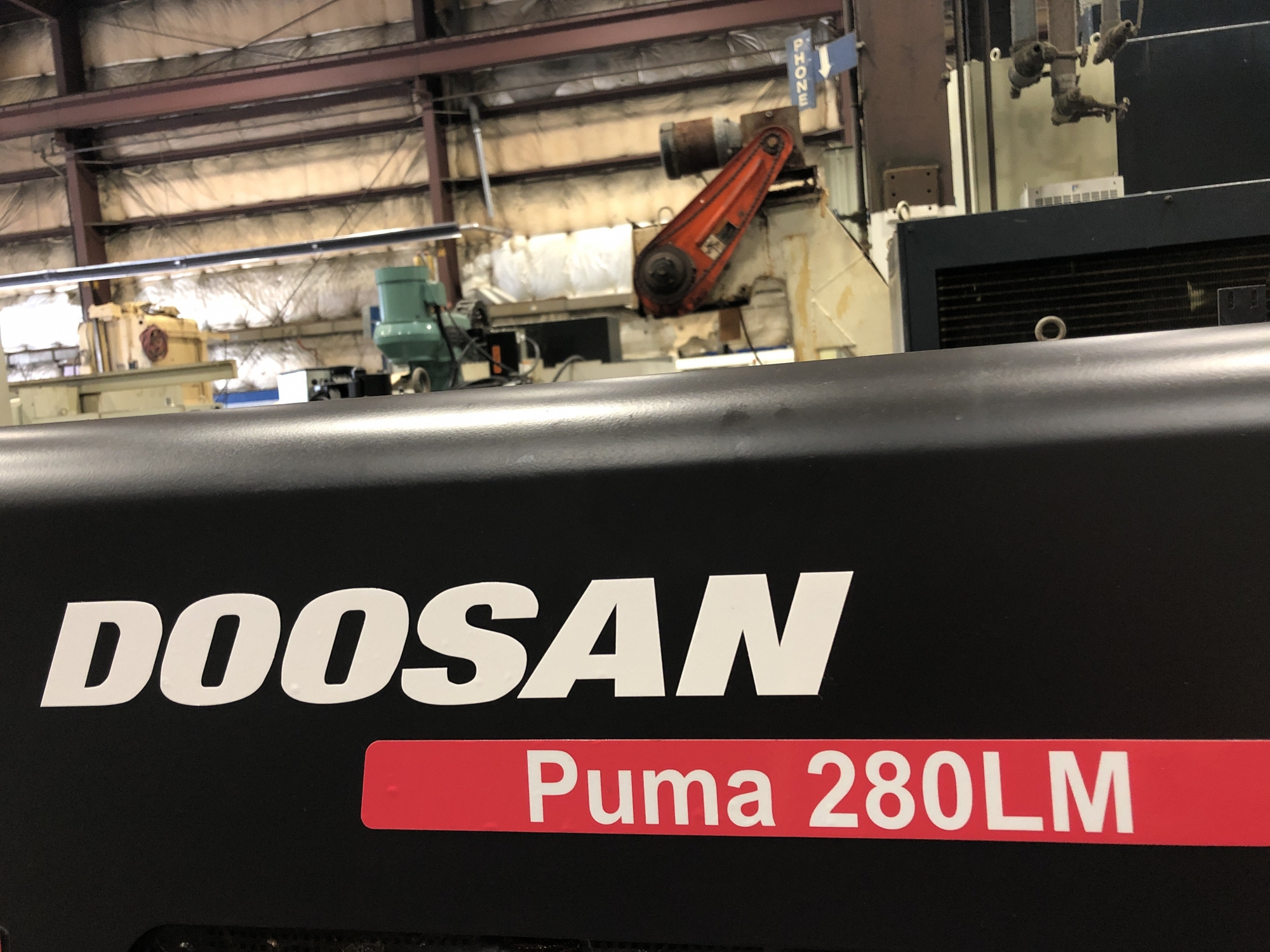

2008 DOOSAN Puma 280LM - CNC Horizontal Lathe
Machine Specifications
# Axis
3
CNC Control
yes
Control Type
Fanuc 21i-TB
Swing
24.8"
Turning Diameter
16.14"
Center Distance
40.5"
Chuck Size
10"
Bar Capacity
2.99"
X Axis Travel
9.53"
Z Axis Travel
944"
C Axis Index
0.001°
Rapid Traverse (X/Z)
944 IPM
Spindle Nose
A2-8
Spindle Speed (RPM)
3,500
Spindle Motor
30 HP
Live Tooling
yes
Live Tooling Speed
5,000 RPM
Live Tooling Motor
5.5 HP

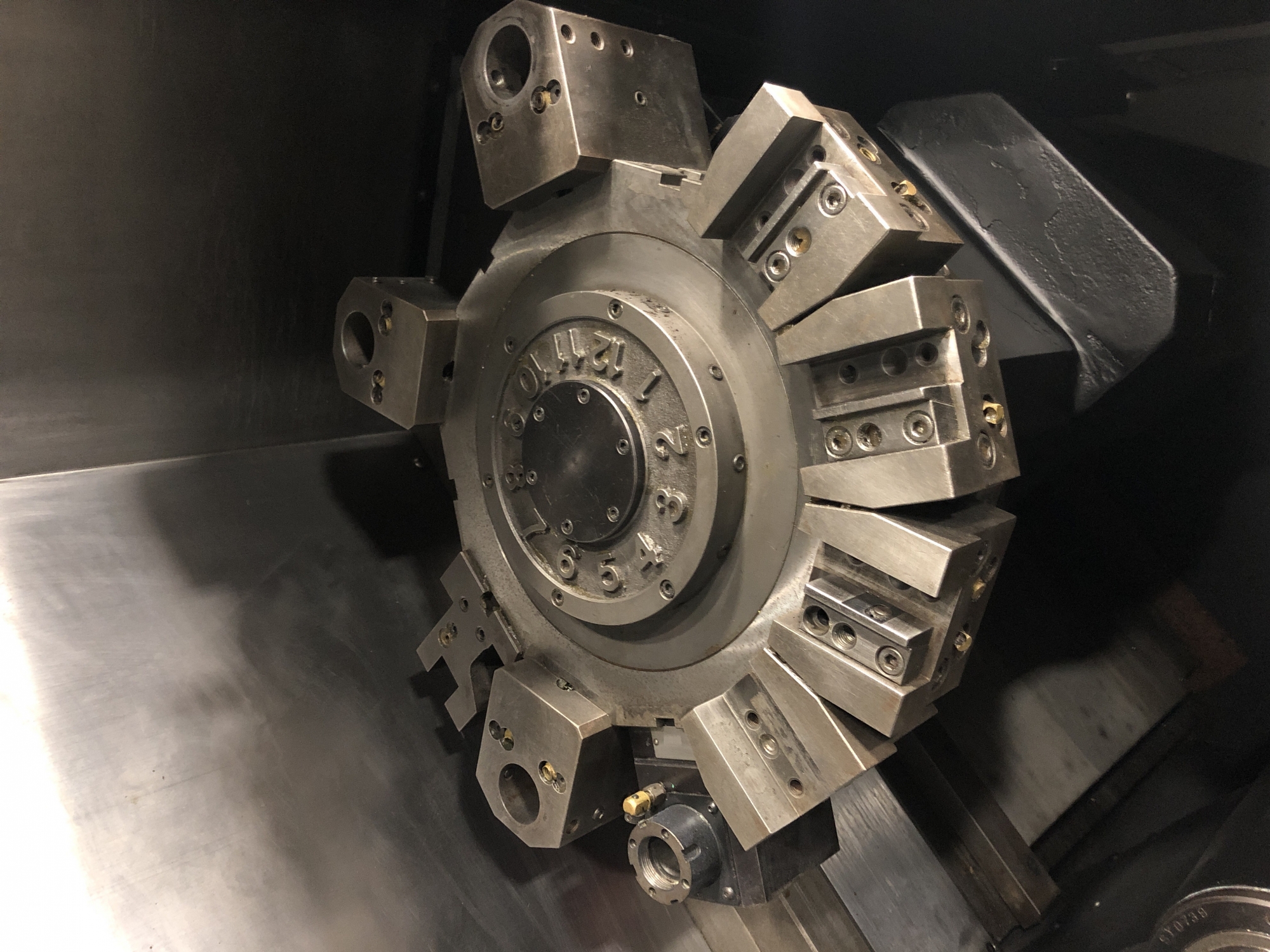

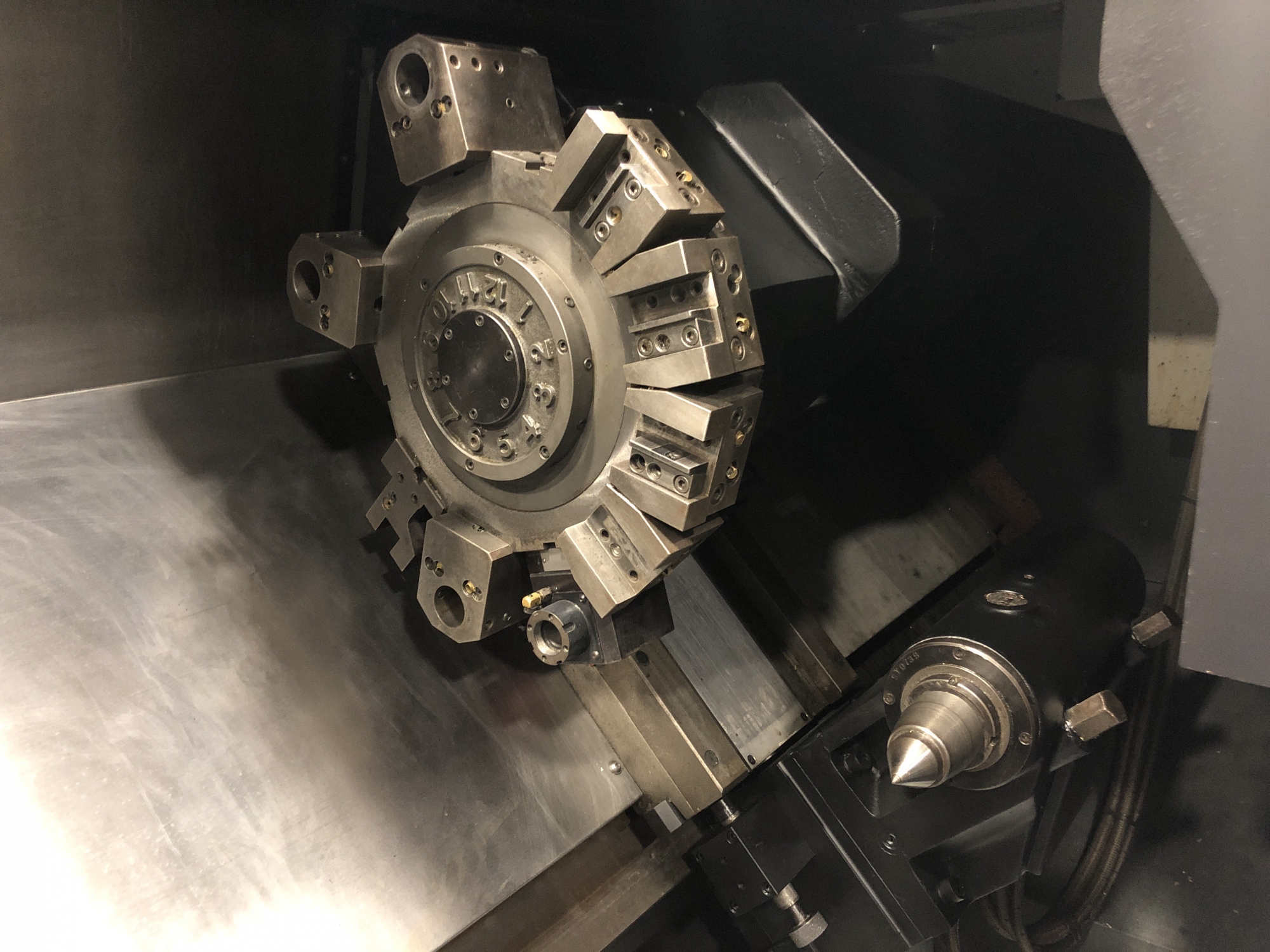

Turret Capacity
12
Tailstock
yes
Y Axis
no
Sub Spindle
no
Dimensions
152" x 66" x 69"
Weight
12,200 pounds

Equipped With:

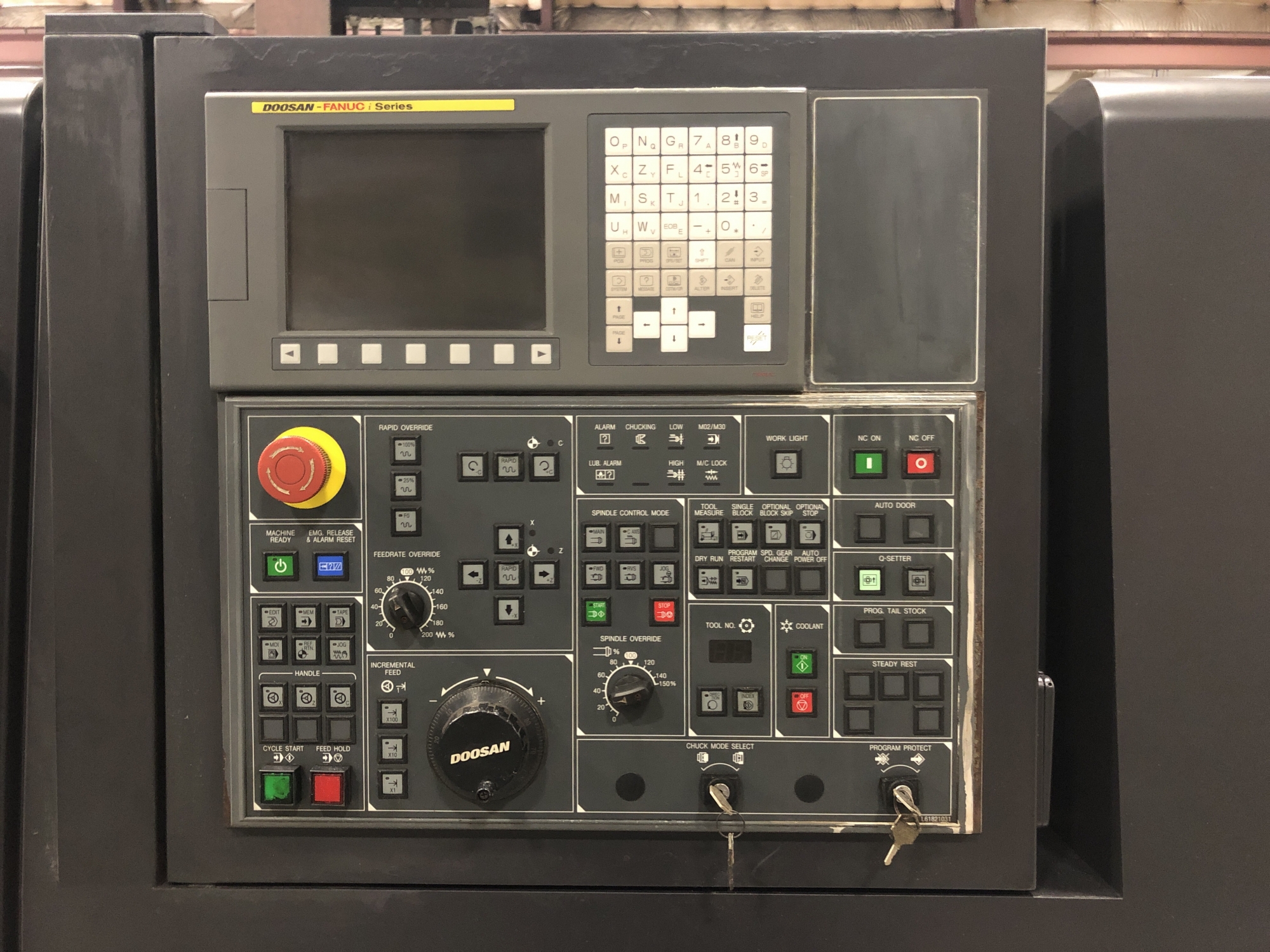

- Fanuc 21i-TB Control
- Chip Conveyor

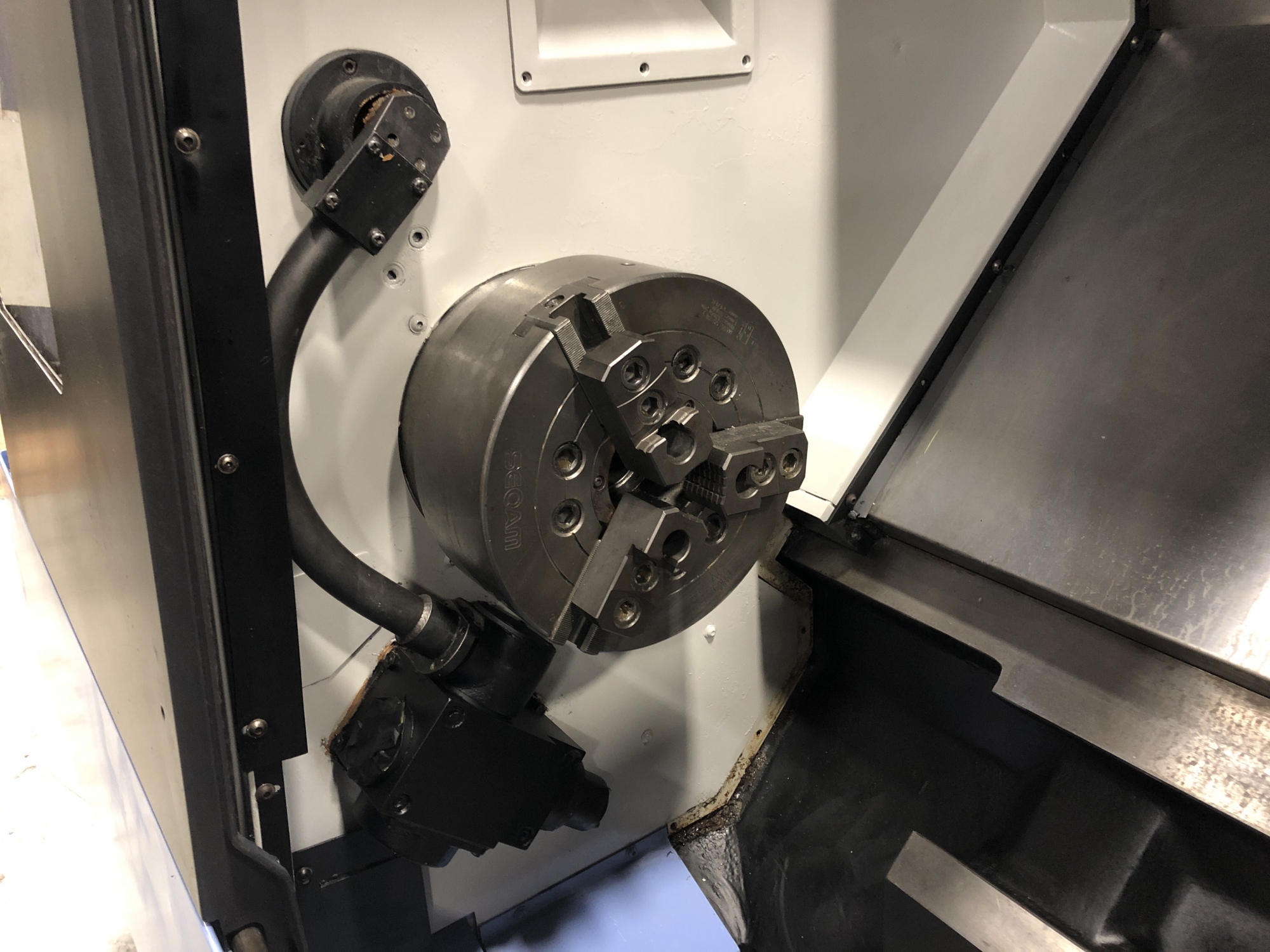

- 10" Seoam Hydraulic Chuck
- Coolant Tank & Pump
- Tailstock
- Live Tooling
- Manual Guide i
- Misc. Tooling Available
- Available Manuals

The Doosan Puma 280LM is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
