CST 42240 CNC Flatbed Lathe - Horizontal Lathes

Share Machine
Specifications Print Specs

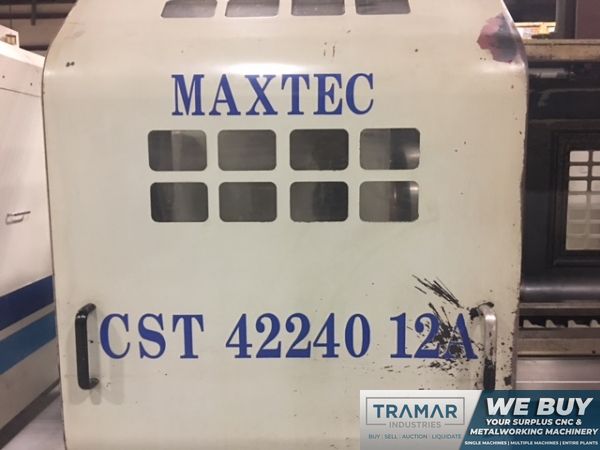

Model: CST 42240 CNC Flatbed Lathe
Year: 2006
Stock #: 12801 Sold
Highlights:

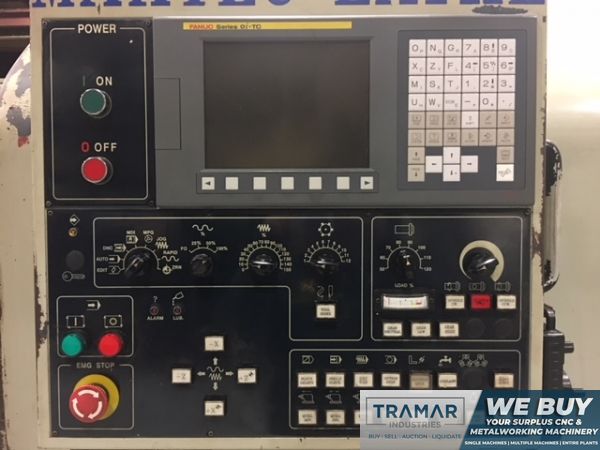

- Fanuc 0i-TC Control
- 28" 4 Jaw Chuck | 12" Bar Capacity
- Full Cutting Enclosure

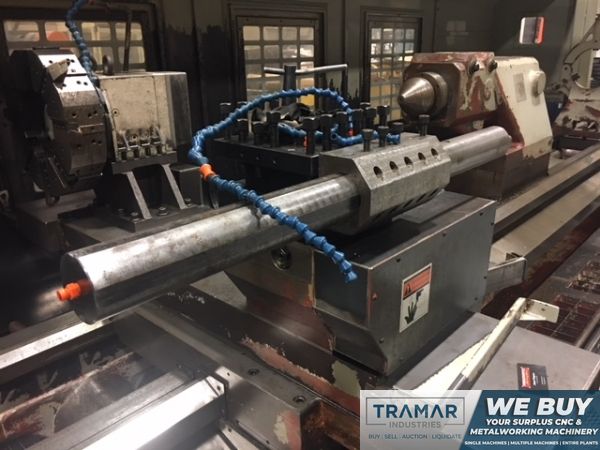

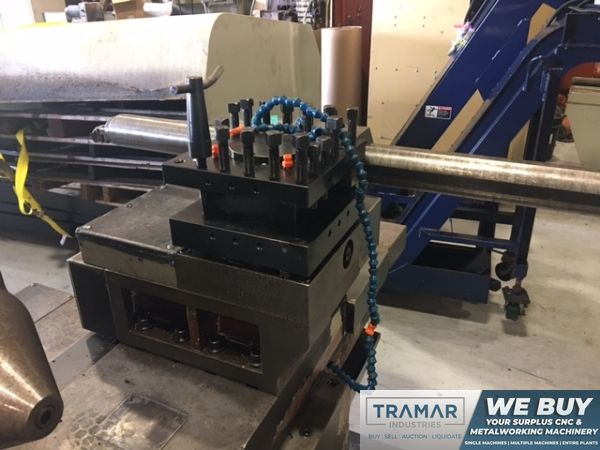

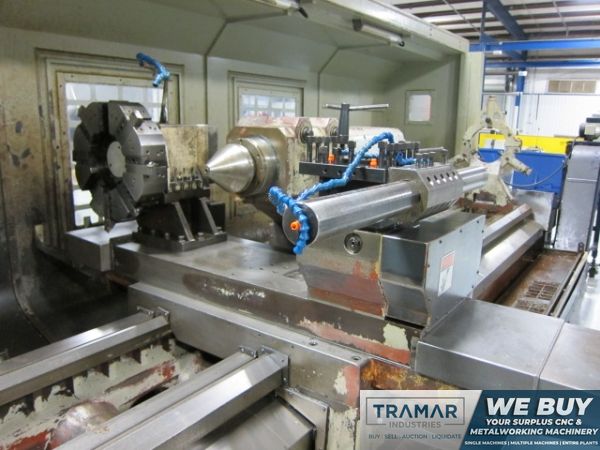

- 4 Post (Boring Bar Style) Tool Post
- *** Model HP-250 ***
- 8 Station Regular Turret
(2) Steady Rests

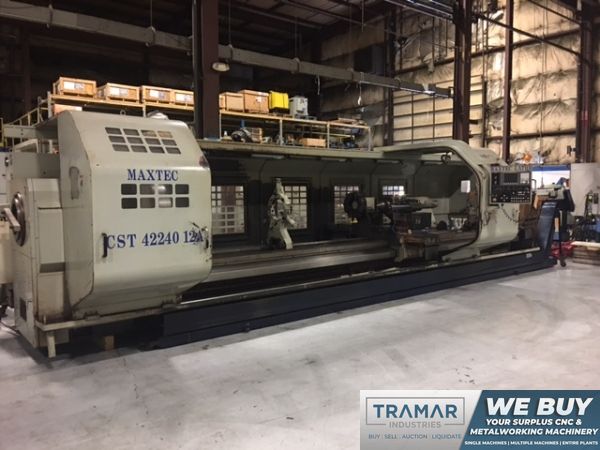

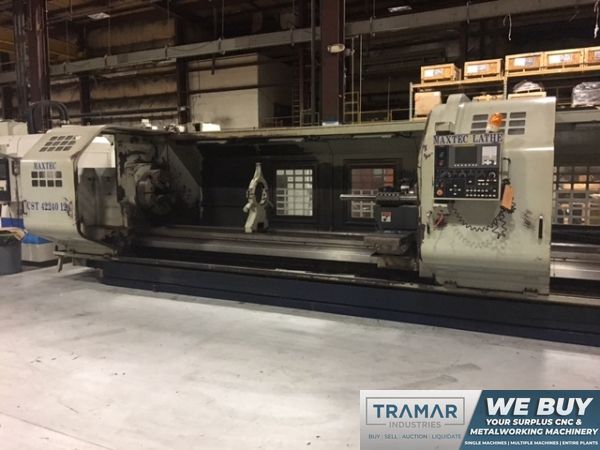

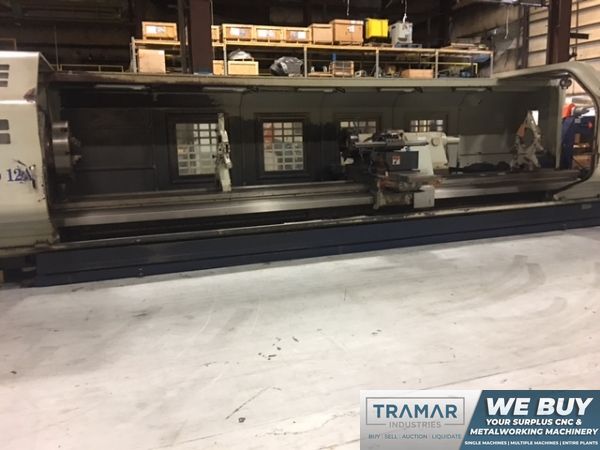

2006 SUNFIRM CST 42240 CNC Flatbed Lathe
Machine Specifications
# Axis
2
CNC Control
yes
Control Type
Fanuc 0i-TC
Swing
42"
Turning Diameter
31"
Center Distance
240"
Chuck Size
28"
Bar Capacity
12"
X Axis Travel
26"
Z Axis Travel
210"
Rapid Traverse (X/Z)
393 IPM
Spindle Nose
A2-20
Spindle Speed (RPM)
680
Spindle Motor
35 HP

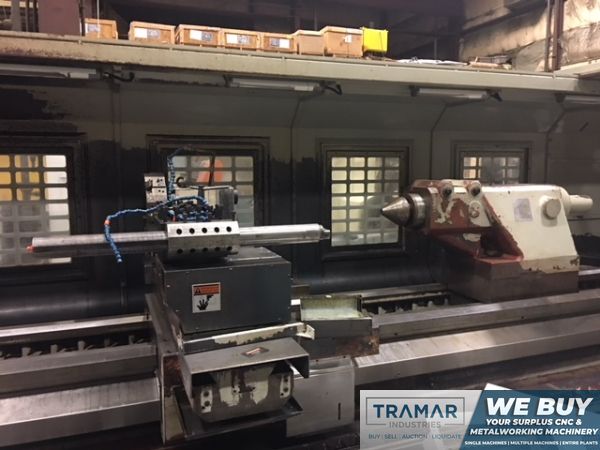

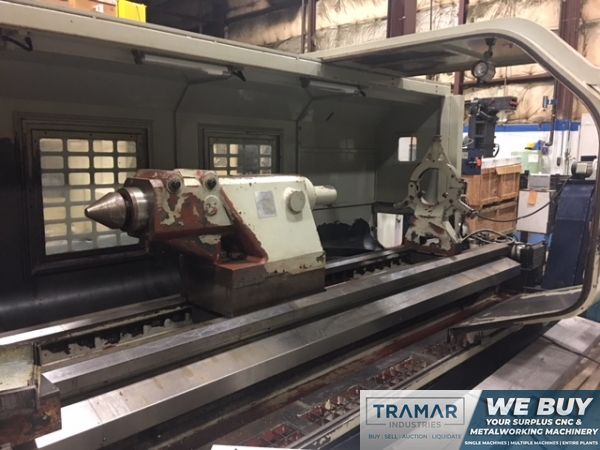

Tailstock
yes
Tailstock Taper
Mo. # 6
Y Axis
no
Live Tooling
no
Sub Spindle
no
Dimensions
360" x 108" x 96"
Machine Weight
38,000 lbs

Equipped With:

- Fanuc 0i-TC Control

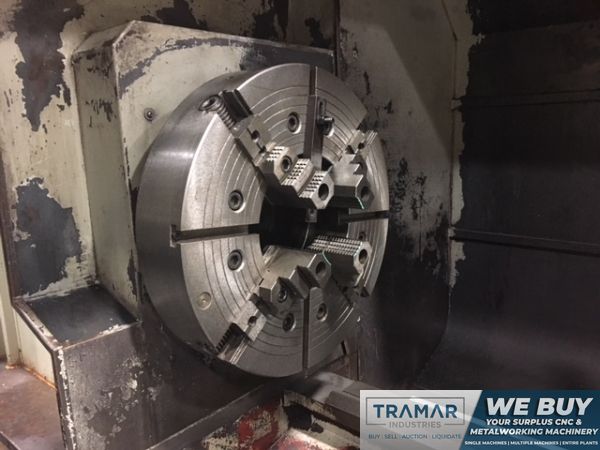

- 28" 4 Jaw Manual Chuck
- Full Enclosure

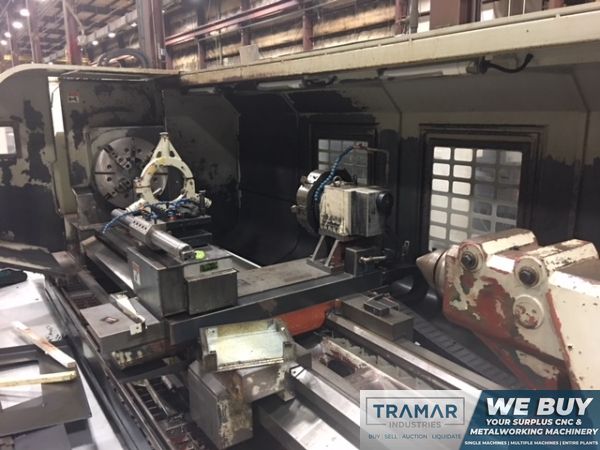

- 4 Post (Boring Bar Style) Turret
*** Model HP-250 ***

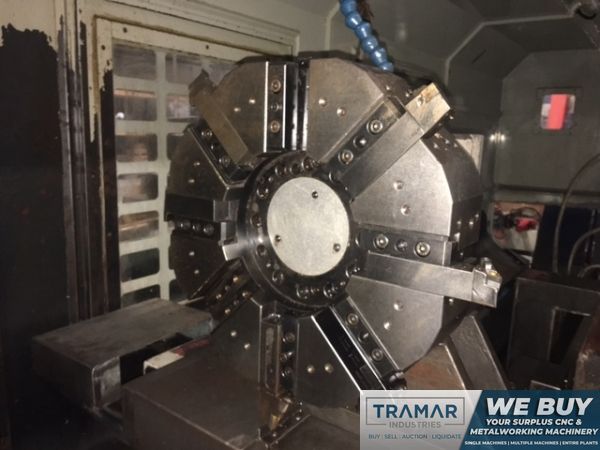

- 8 Station Regular Turret
- Boring Bar Attachment Holders
- (2) Chip Conveyors (Jorgensen) Front & Rear
- Coolant Tank & Pump

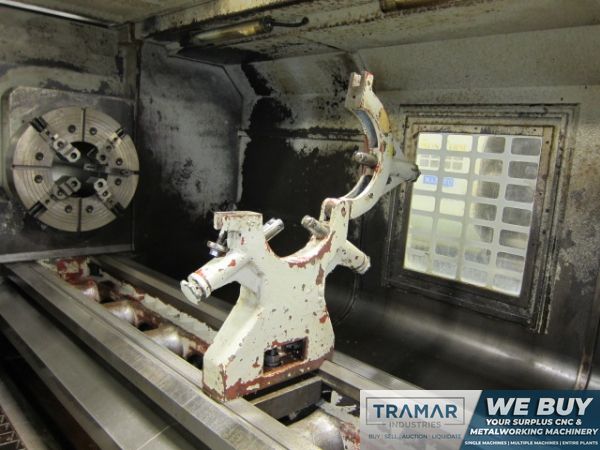

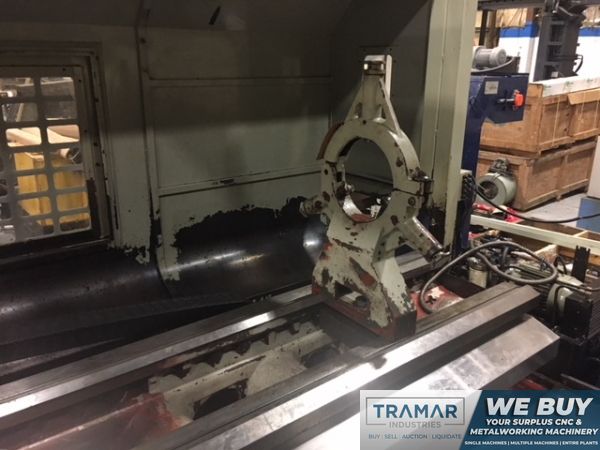

- (2) Steady Rests (Manual)
- 2 Stage Gear Box (Hi/Lo)
- Tailstock

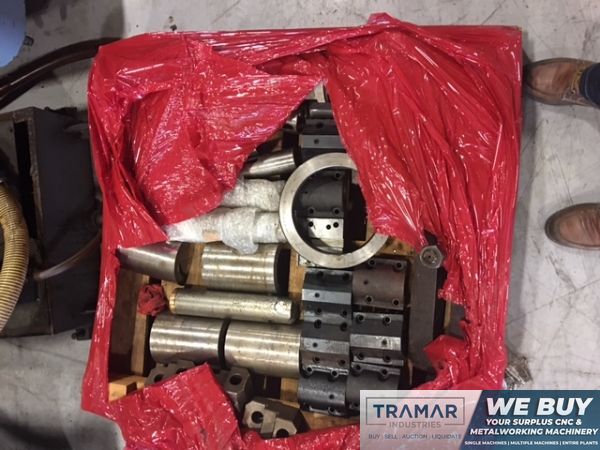

- Miscellaneous Tooling Available

The CST 42240 CNC Flatbed Lathe is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
