Okuma V80R - Vertical Lathes

Share Machine

Specifications Print Specs

Model: V80R

Year: 2006

Stock #: 13528 Sold

Type: Vertical Lathes

Manufacturer: Used Okuma Machines

Highlights:
- Fanuc 18i-TB Control
- Chip Conveyor
- 25" Chuck

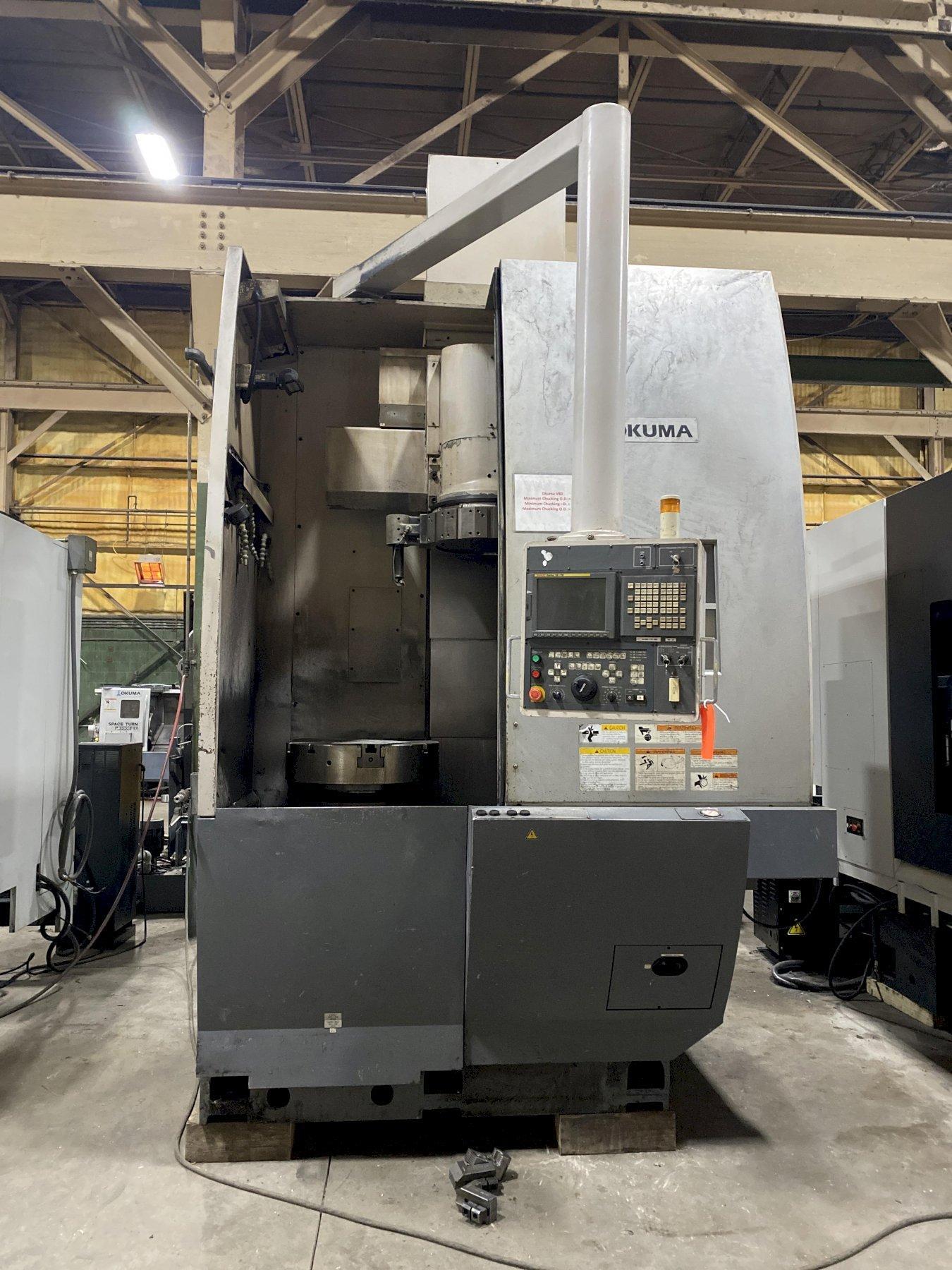

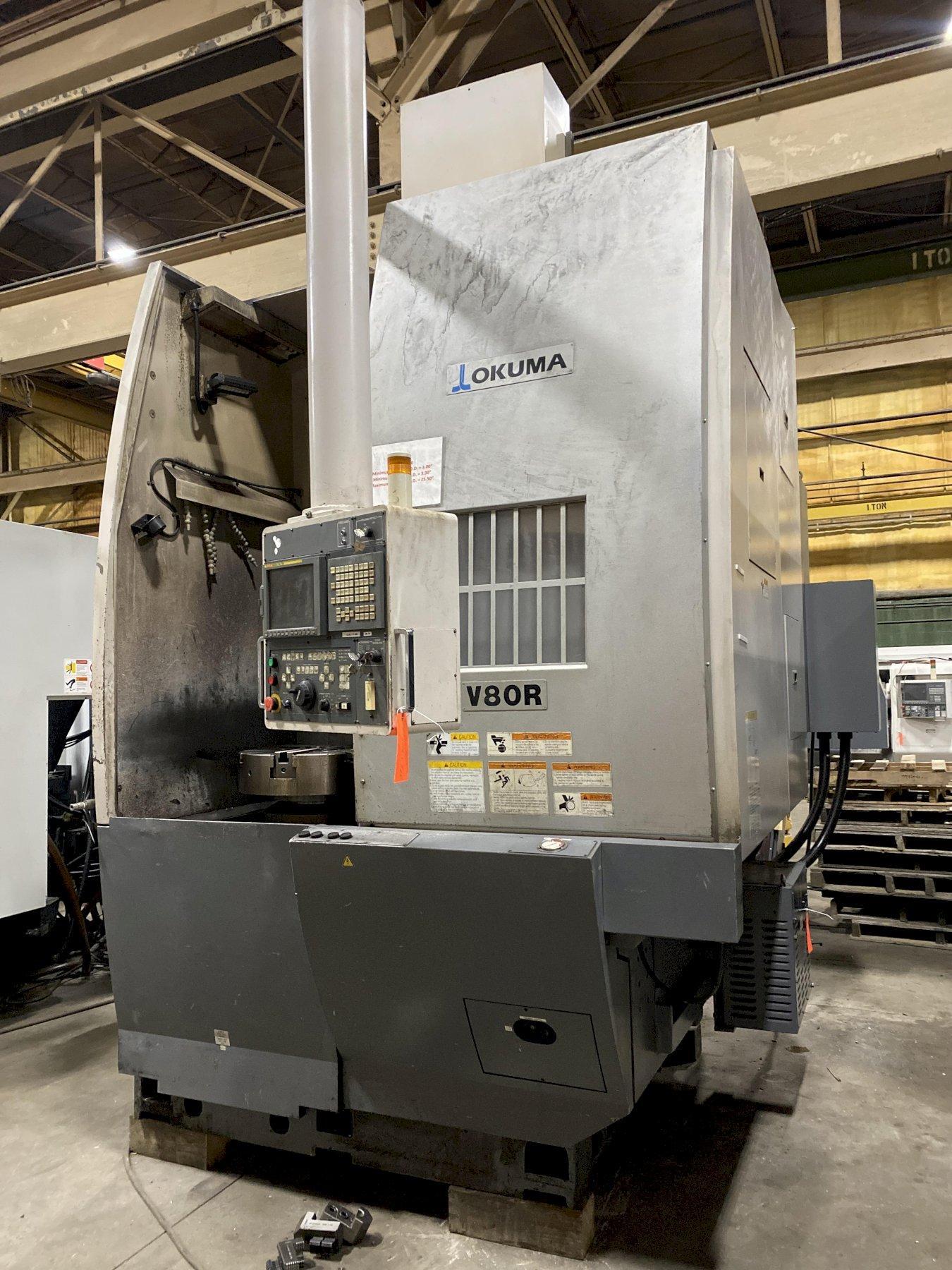

2006 Okuma V80R CNC Vertical Turret Lathe

Equipped With:

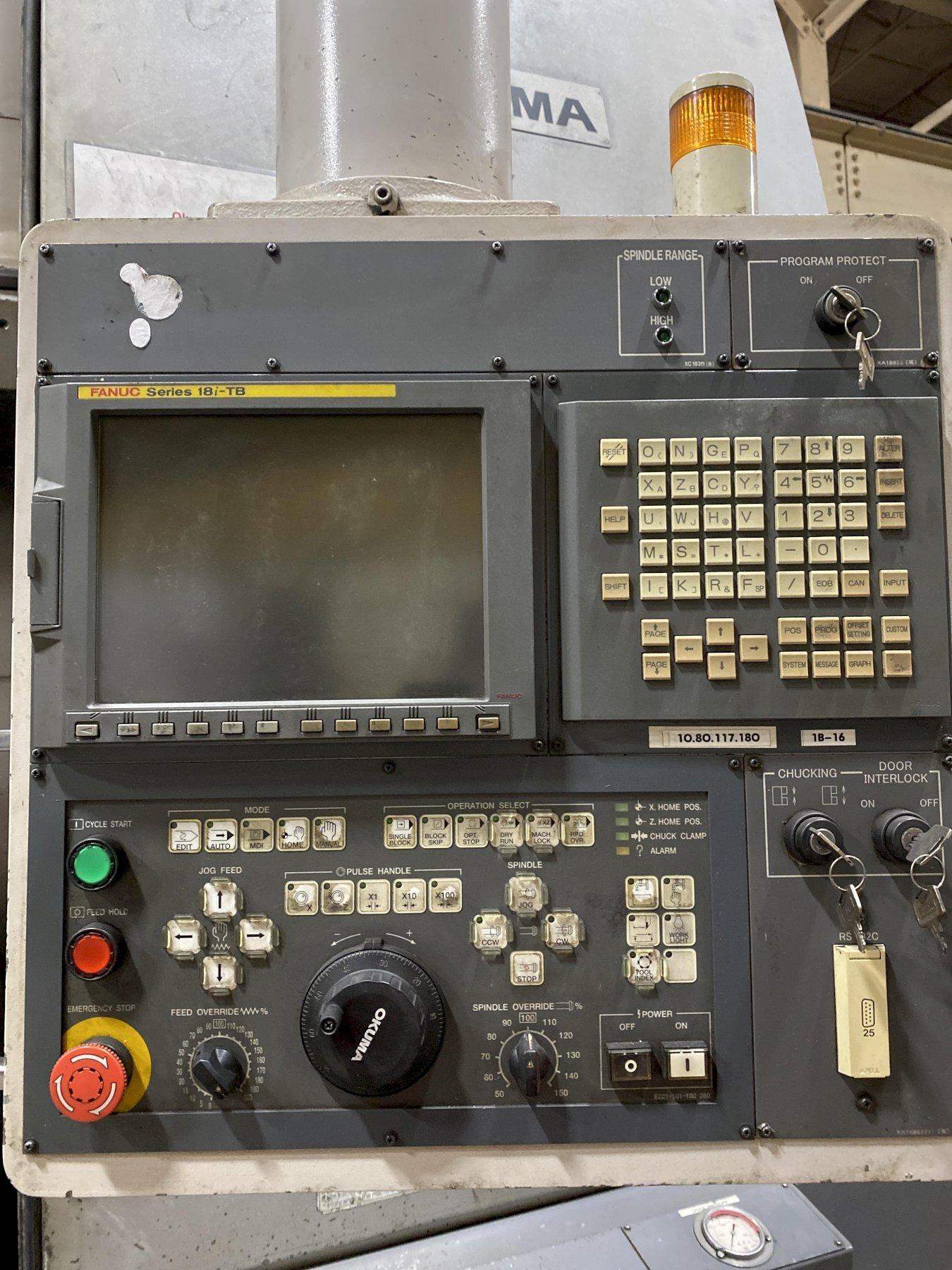

- Fanuc 18i-TB CNC Control
- Chip Conveyor
- Coolant Tank

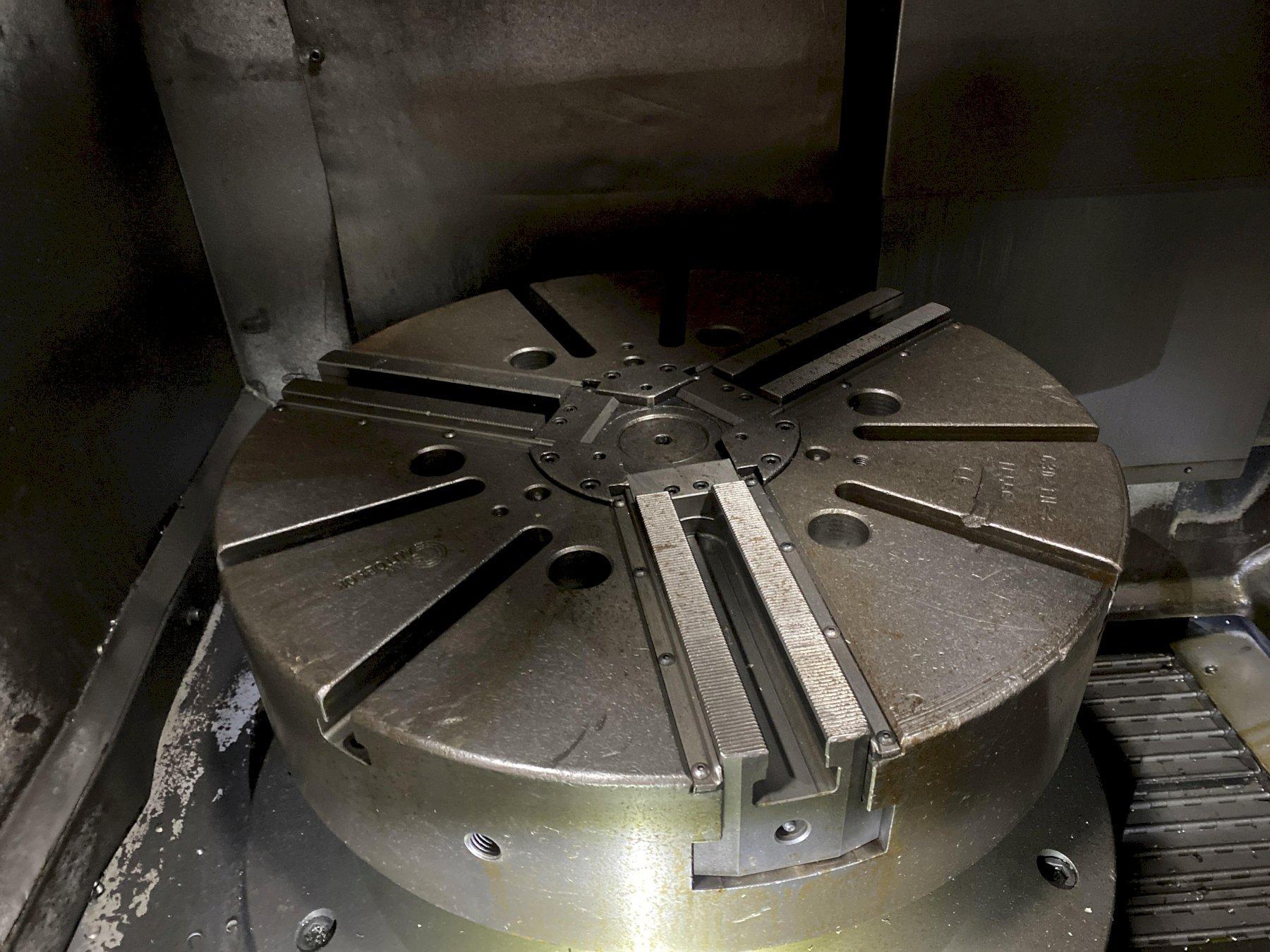

- 25" Hydraulic Chuck

** Video Click Here **

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 18i-TB

Swing

39.37"

Turning Diameter

31.5"

Max Turning Length

33.07"

Chuck Size

25"

Max Table Load

1,760 pounds

X-Axis Travel

18.31"

Z-Axis Travel

33.07"

Rapid Traverse (X/Z)

945 ipm

Spindle Nose

A2-11

Spindle Speed

2,000

Spindle Motor

40 horsepower

Live Tooling

Turret Capacity

Machine Dimensions

126" x 90" x 160" - FloorSpace

Weight

25,300 pounds

Equipped With:

- Fanuc 18i-TB CNC Control
- Chip Conveyor
- Coolant Tank
- 25" Hydraulic Chuck

** Video Click Here **

The Okuma V80R is an exclusive part of our Vertical Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
