Nakamura-tome Super NTY3 150 - Lathes (3-Axis or More)

Request Quote

Share Machine

Specifications Print Specs

Model: Super NTY3 150

Year: 2006

Stock #: 15049

Type: Lathes (3-Axis or More)

Manufacturer: Used Nakamura-tome Machines

Highlights:

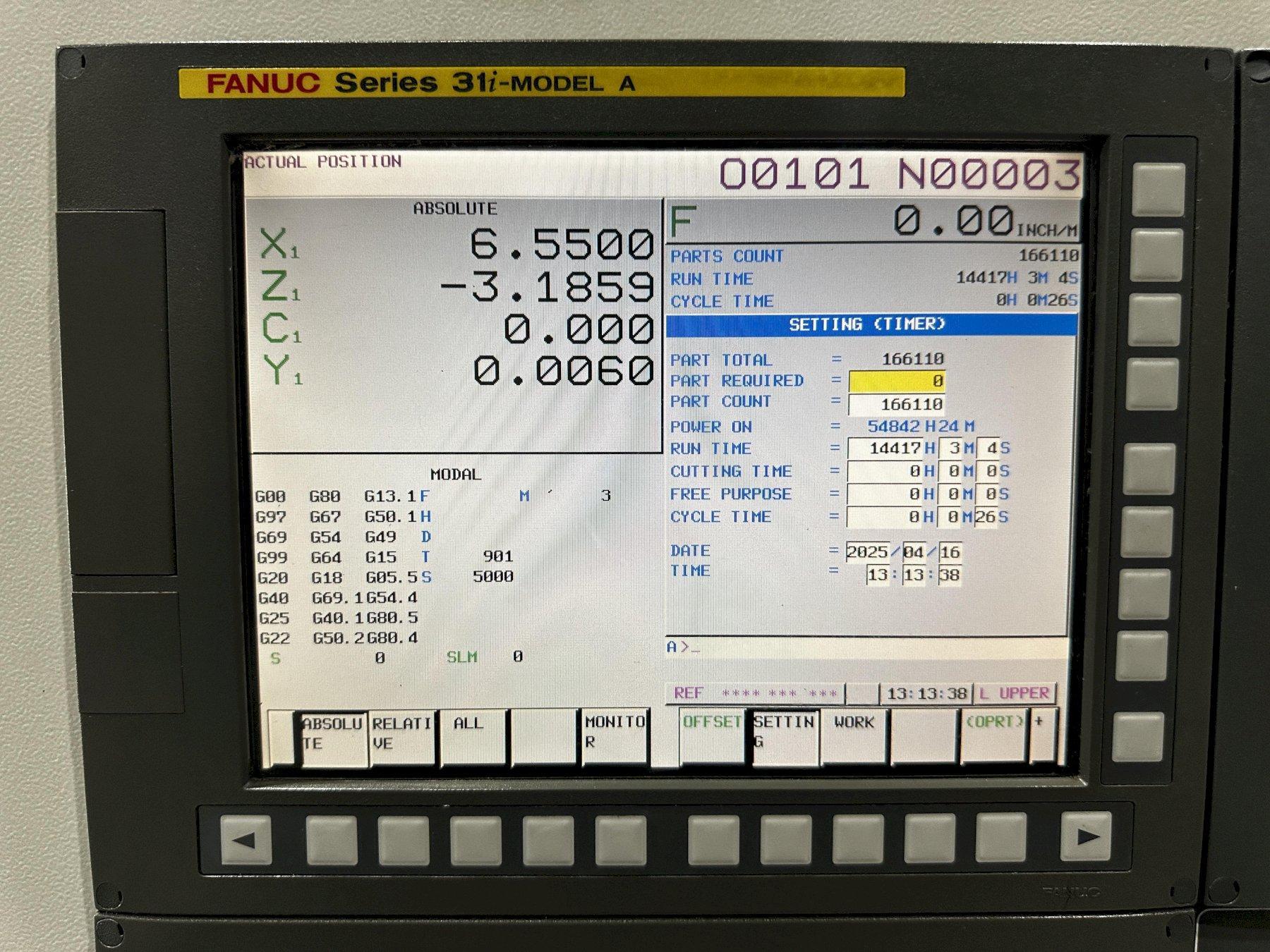

Fanuc 31i-Model A CNC Control
High Pressure coolant
Dual Upper Turrets
Lower Turret
Tool Pre-setter
LNS Conveyor

2006 Nakamura Tome Super NTY3 150 Used CNC Lathe For Sale

Equipped With:

- Fanuc 31i-Model A CNC Control
- Y Axis on 3 Turrets
- (3) Turrets Total
* 2 Upper Turrets
* 1 Lower Turret
- High Pressure Coolant
- Parts Catcher
- Chip Conveyor
- Live Tooling

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 31i- Model A

# Axis

Swing

32.2"

Turning Diameter

6.9"

Center Distance

32"

Chuck Size

Bar Capacity

1.7"

X Axis Travel

5.1"

Y Axis Travel

2.4"

Z Axis Travel

9.7"

B Axis Travel (Sub Spindle)

24.4"

C1/C2 Axis Index

0.001°

Spindle Speed

5,000 rpm

Main Motor

15 hp

Tailstock

Y Axis

yes

Live Tooling

yes

Live Tooling Speed

5,000 rpm

Live Tooling Motor

10 hp

Sub Spindle

yes

Sub Spindle Chuck

Sub Spindle Bar Capacity

1.7"

Sub Spindle Speed

5,000 rpm

Turret Capacity

(2) Upper Turrets - 24 Station/ea

Turret Capacity

Lower Turret - 24 Stations

Machine Dimensions

150" x 90" x 89"

Machine Weight

18,000 pounds

Equipped With:

- Fanuc 31i-Model A CNC Control
- Y Axis on 3 Turrets
- (3) Turrets Total
* 2 Upper Turrets
* 1 Lower Turret
- High Pressure Coolant
- Parts Catcher
- Chip Conveyor
- Live Tooling

The Nakamura-tome Super NTY3 150 is an exclusive part of our Lathes (3-Axis or More) inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
