Haas EC-1600 4X - Horizontal Machining Centers

Share Machine
Specifications Print Specs
Model: EC-1600 4X
Year: 2005
Stock #: 12950 Sold
Highlights:
Coolant Through Spindle (Hi Pressure)

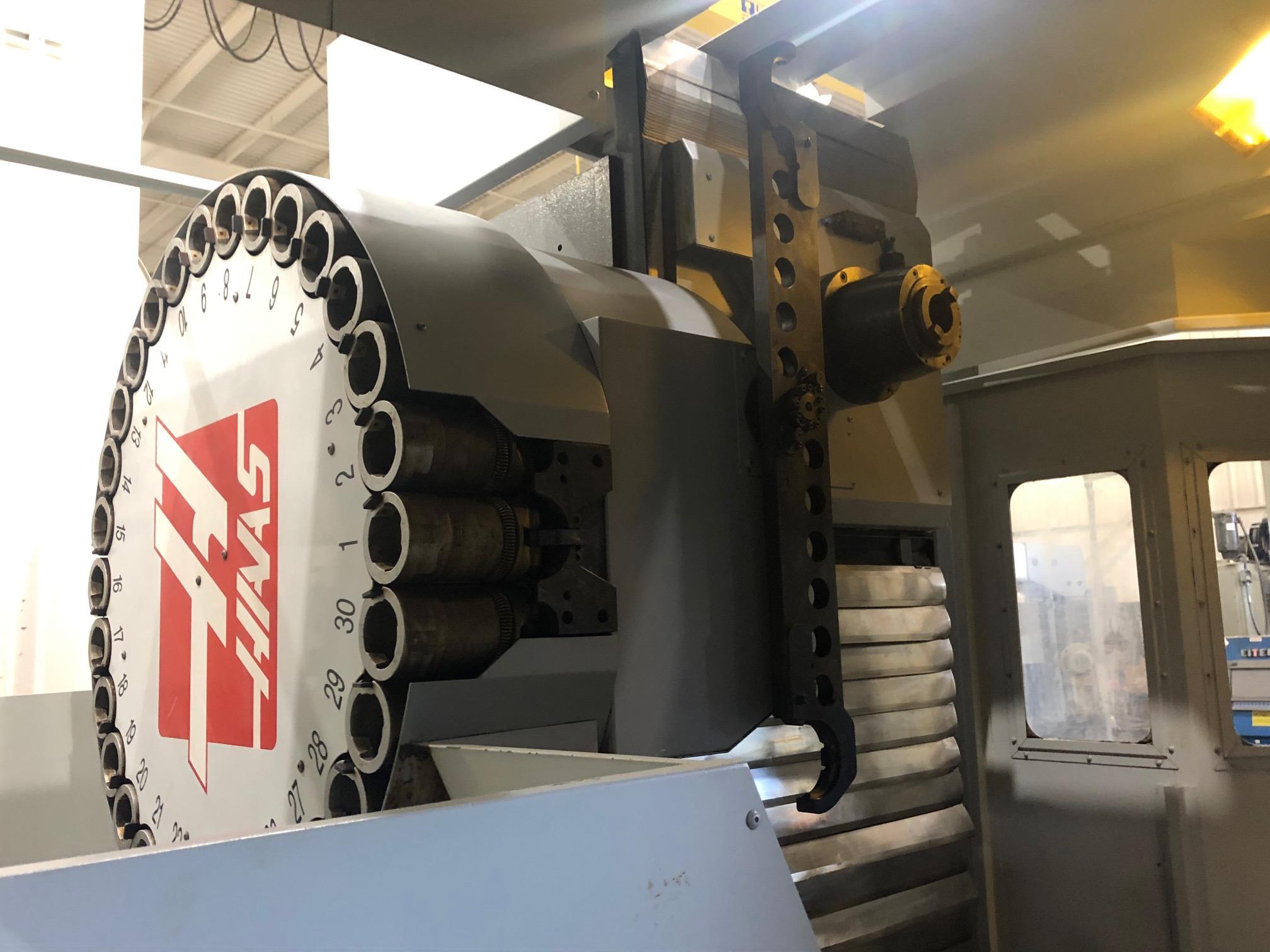

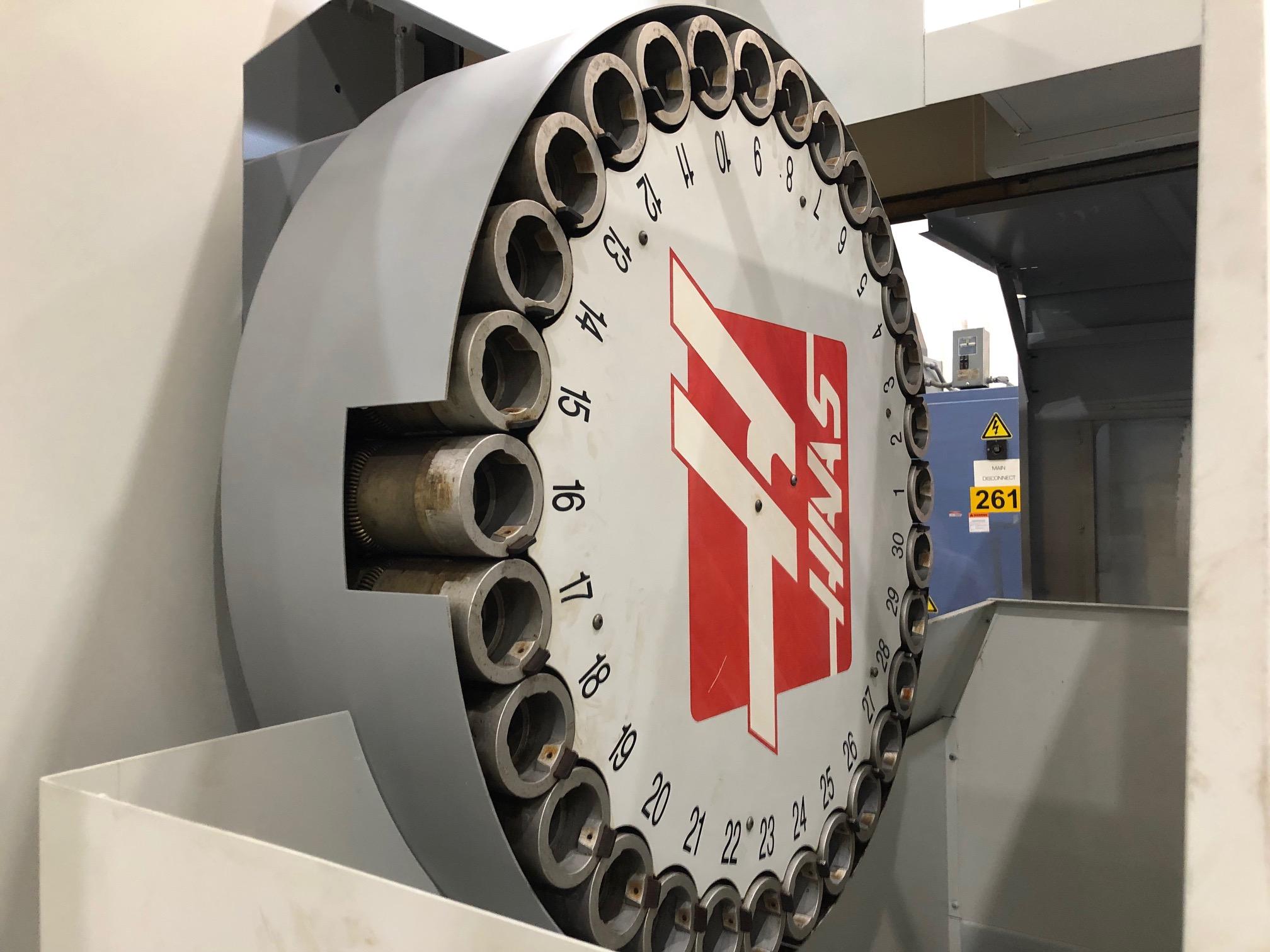

30 Station Tool Changer

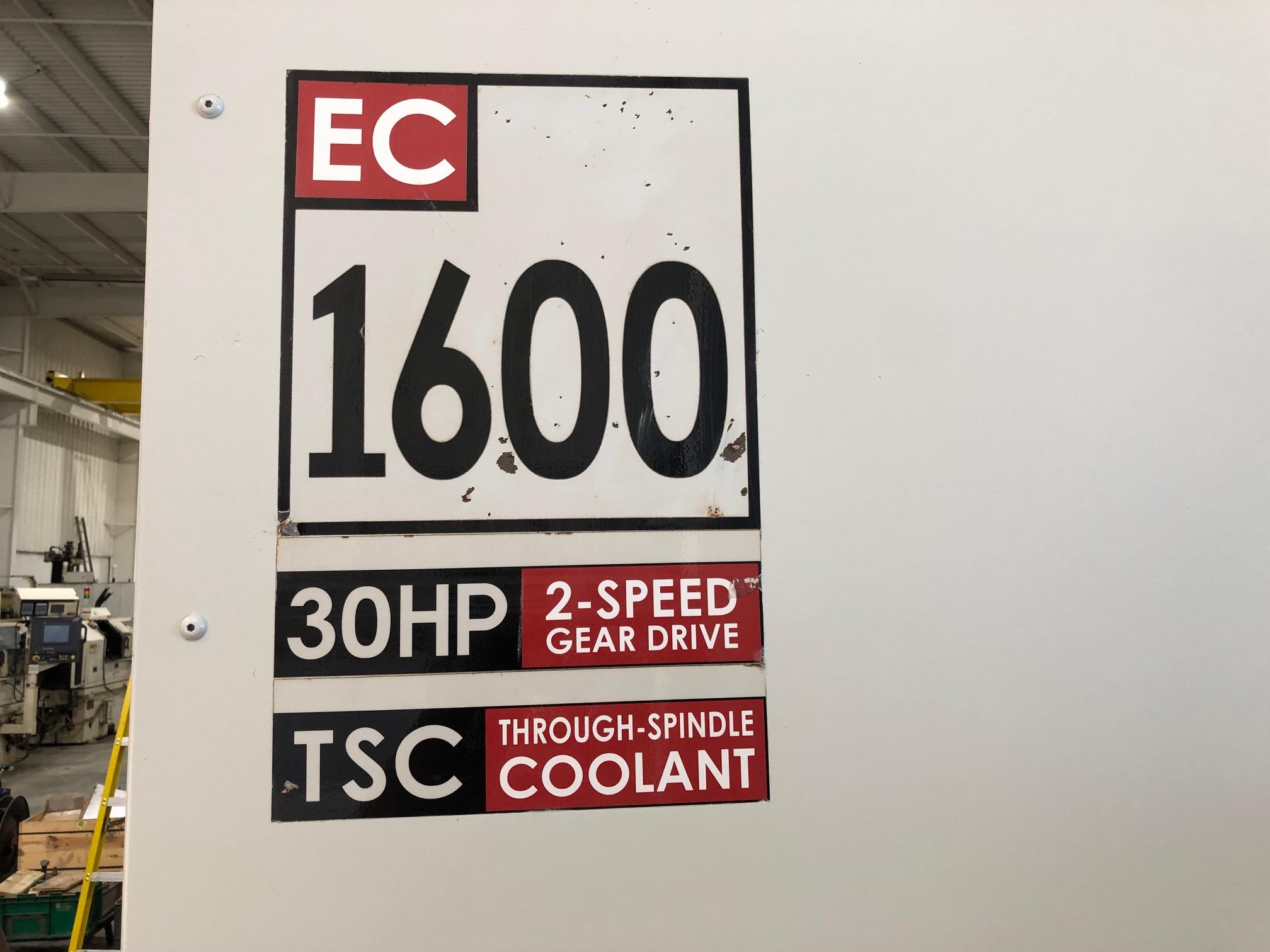

Gear Box | 50 Taper | 30HP
Travels (X/Y/Z) 64"/40"/32"
Pallet Indexing (B Axis): 0.001°

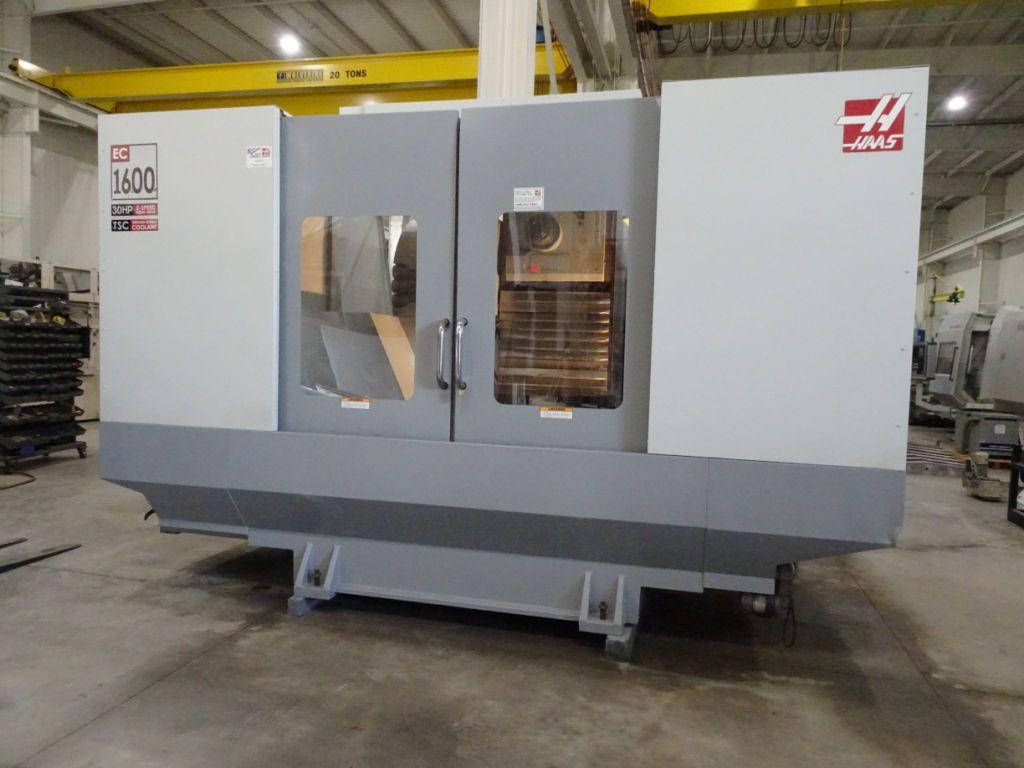

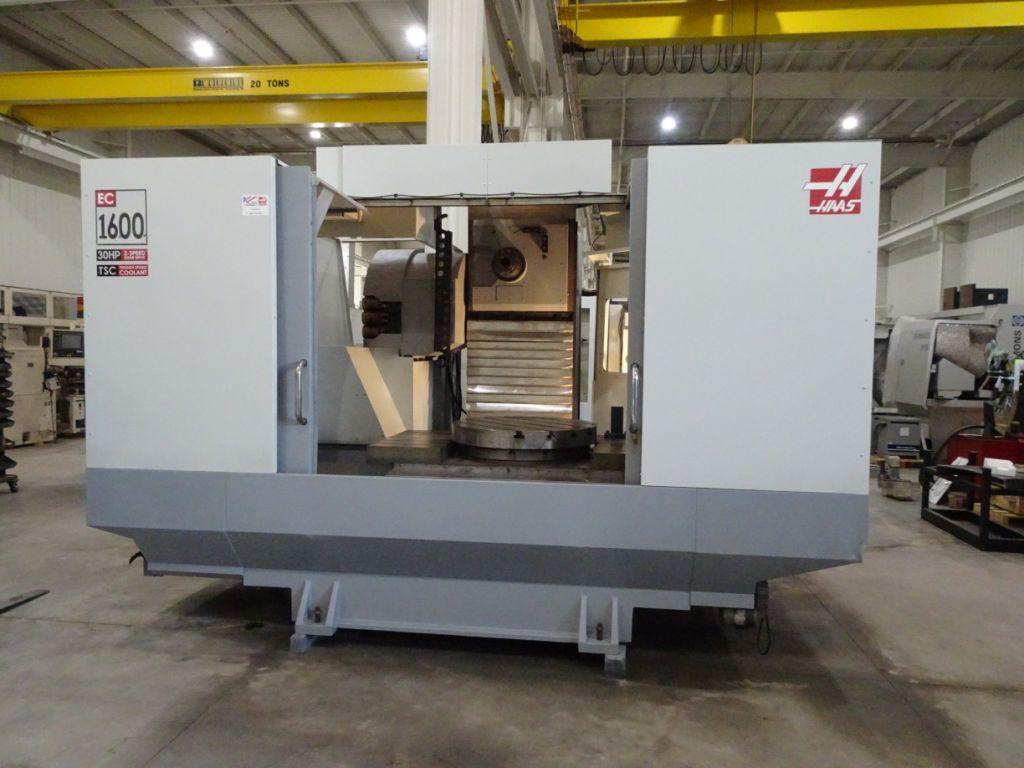

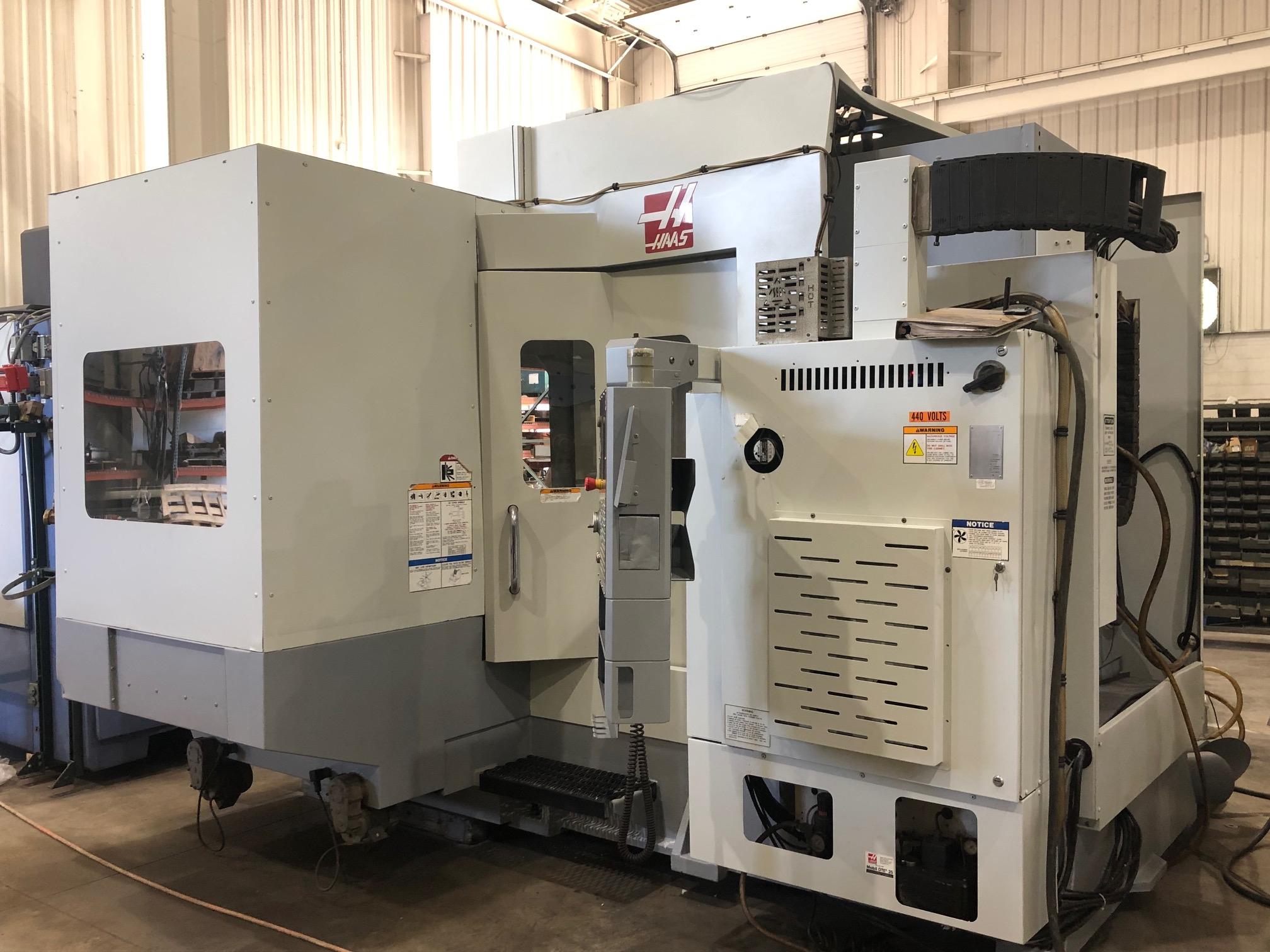

2005 HAAS EC-1600 4X - CNC Horizontal Machining Center
Machine Specifications
CNC Control
yes
Control Type
Haas
# Axis
4

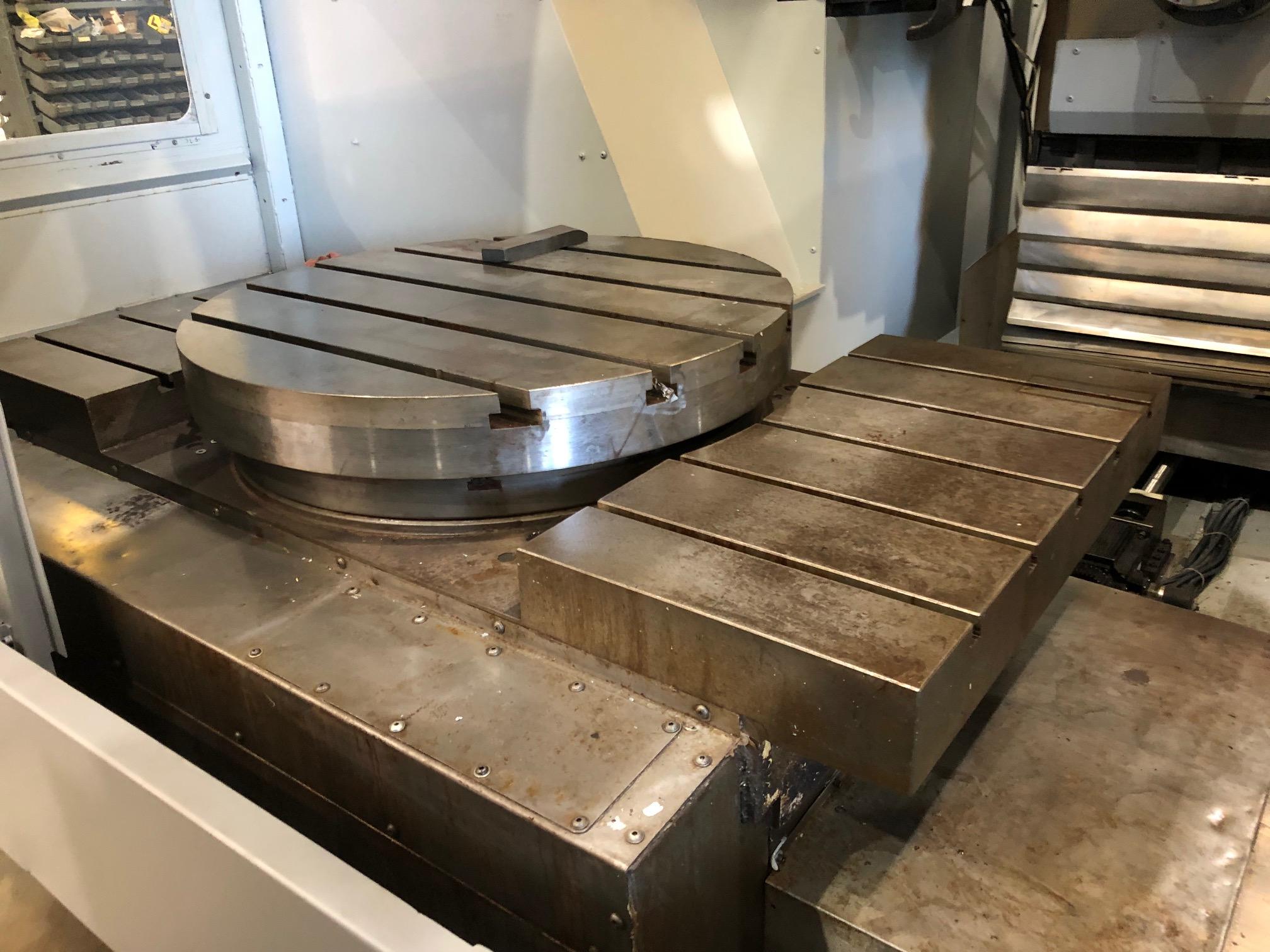

Pallet Length
64"
Pallet Width
36"
Pallet Load Capacity
10,000 pounds

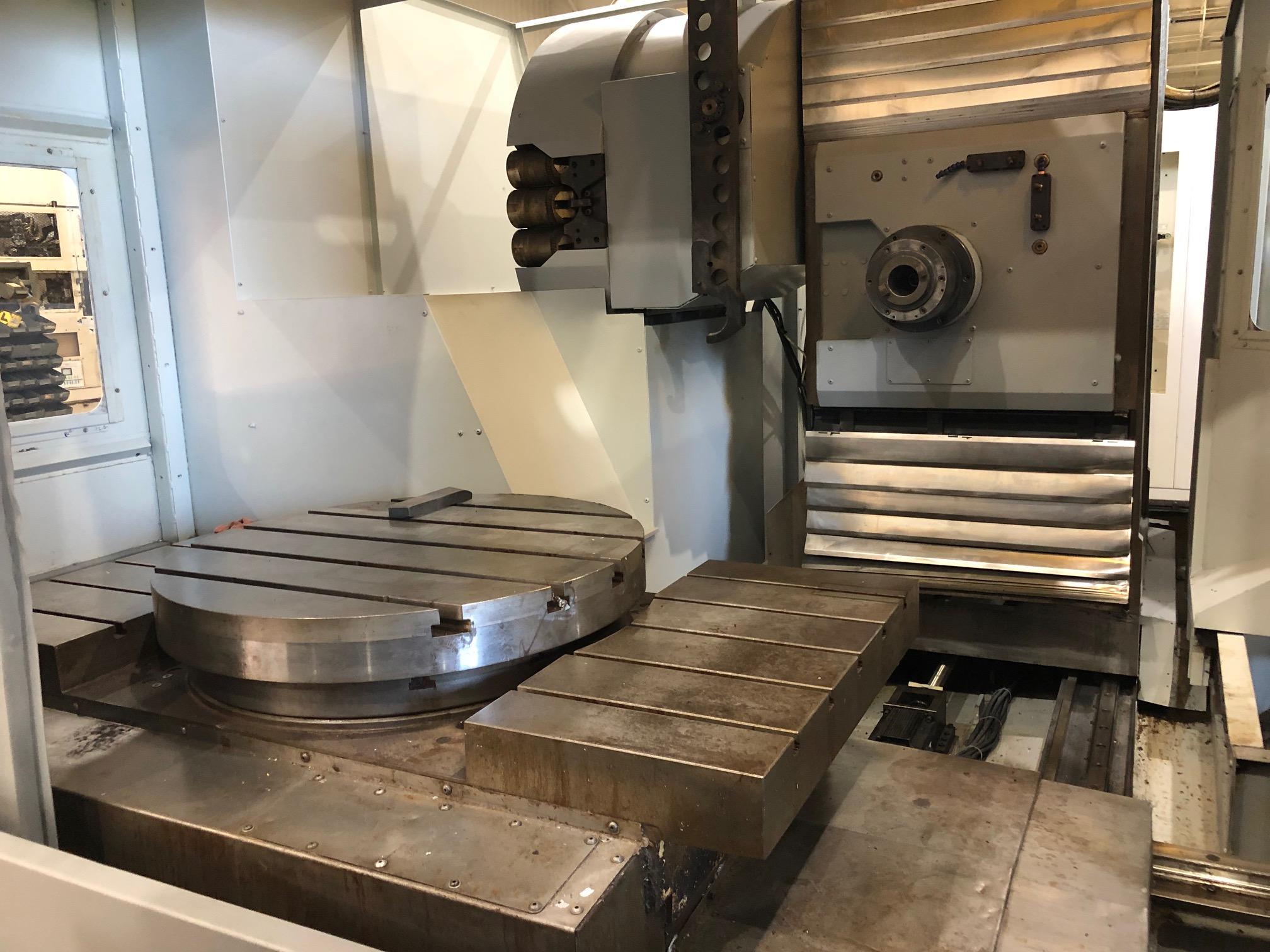

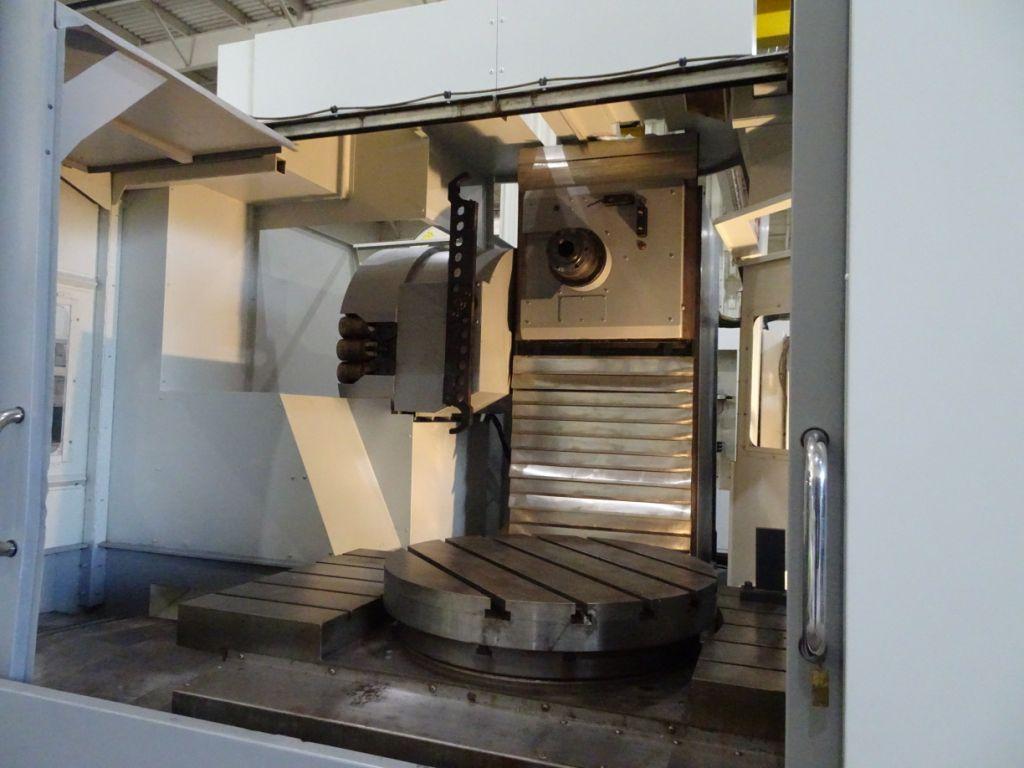

Pallet Indexing (B-Axis)
0.001°
X-Axis Travel
64"
Y-Axis Travel
40"
Z-Axis Travel
32"
Spindle Taper
CAT 50
Spindle Speed (RPM)
7,500
Spindle Motor (HP)
30 horsepower
Tool Changer Capacity
30
Coolant Through Spindle
yes
Dimensions
194" x 147" x 133"
Weight
32,000 pounds

Equipped With:

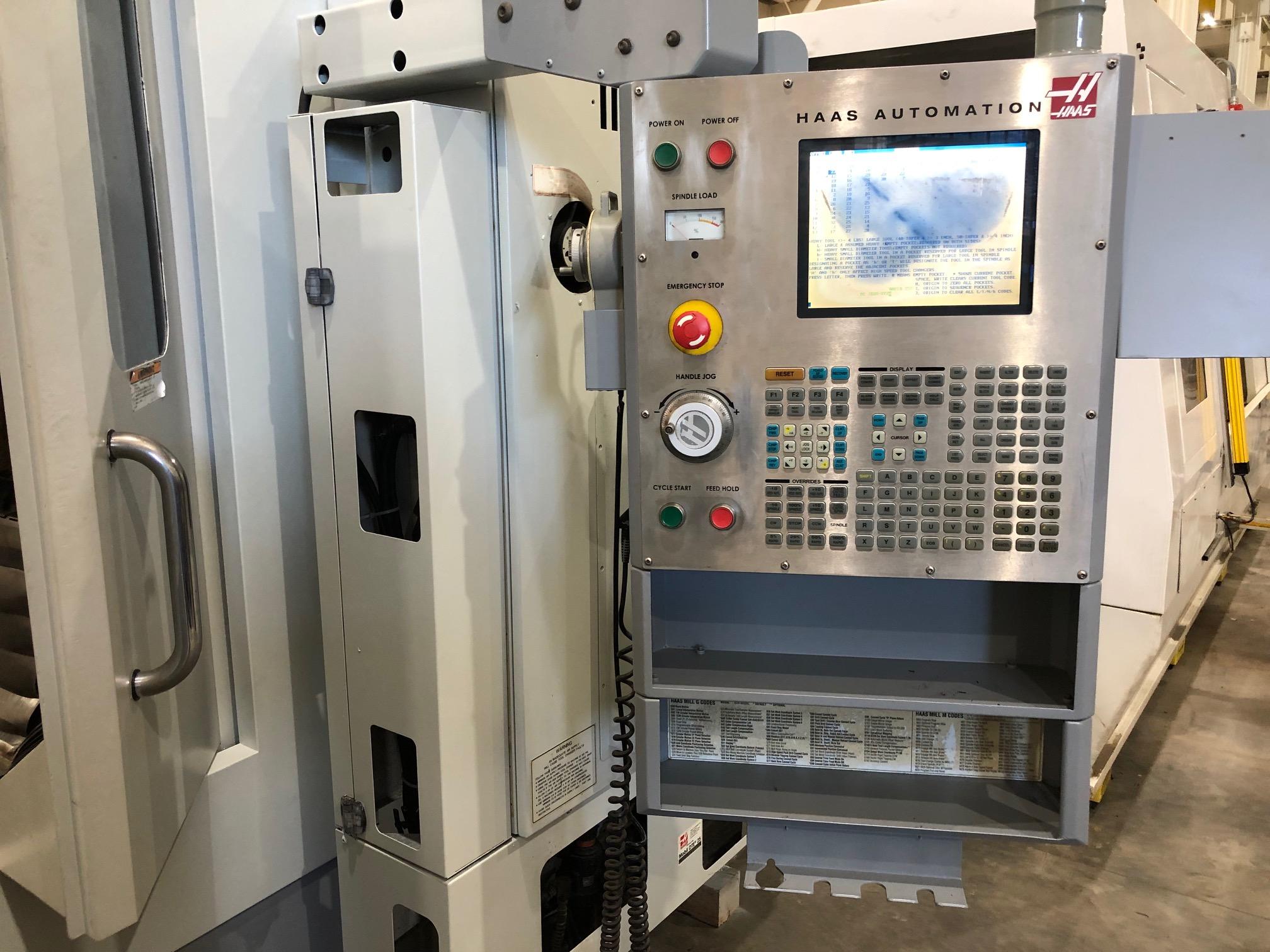

- Haas Control

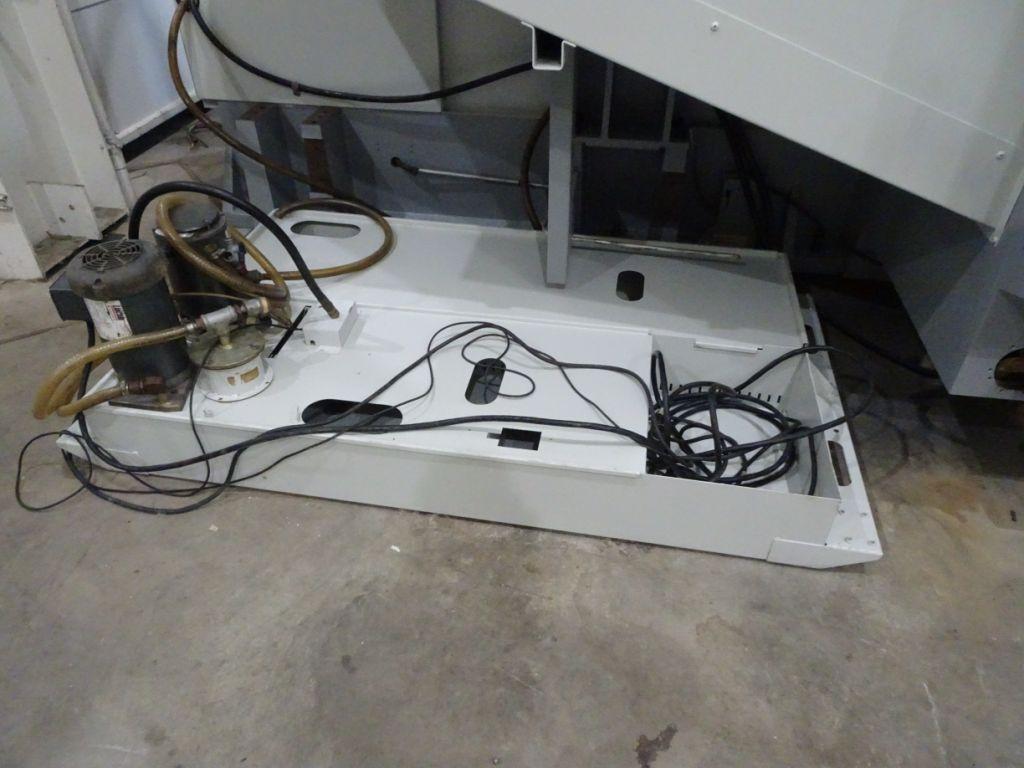

- Chip Augers
- Ethernet
- Remote Job Handle w/Color LCD
- Coolant Through Spindle (Hi Pressure)
- Gear Box
- Rigid Tapping
- Full 4th Axis (0.001°)
- Available Manuals
- Installed in 2006
Video - Coming Soon

The Haas EC-1600 4X is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
