Mazak Integrex e650H/3000 - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Integrex e650H/3000
Year: 2003
Stock #: 13118 Sold
Highlights:

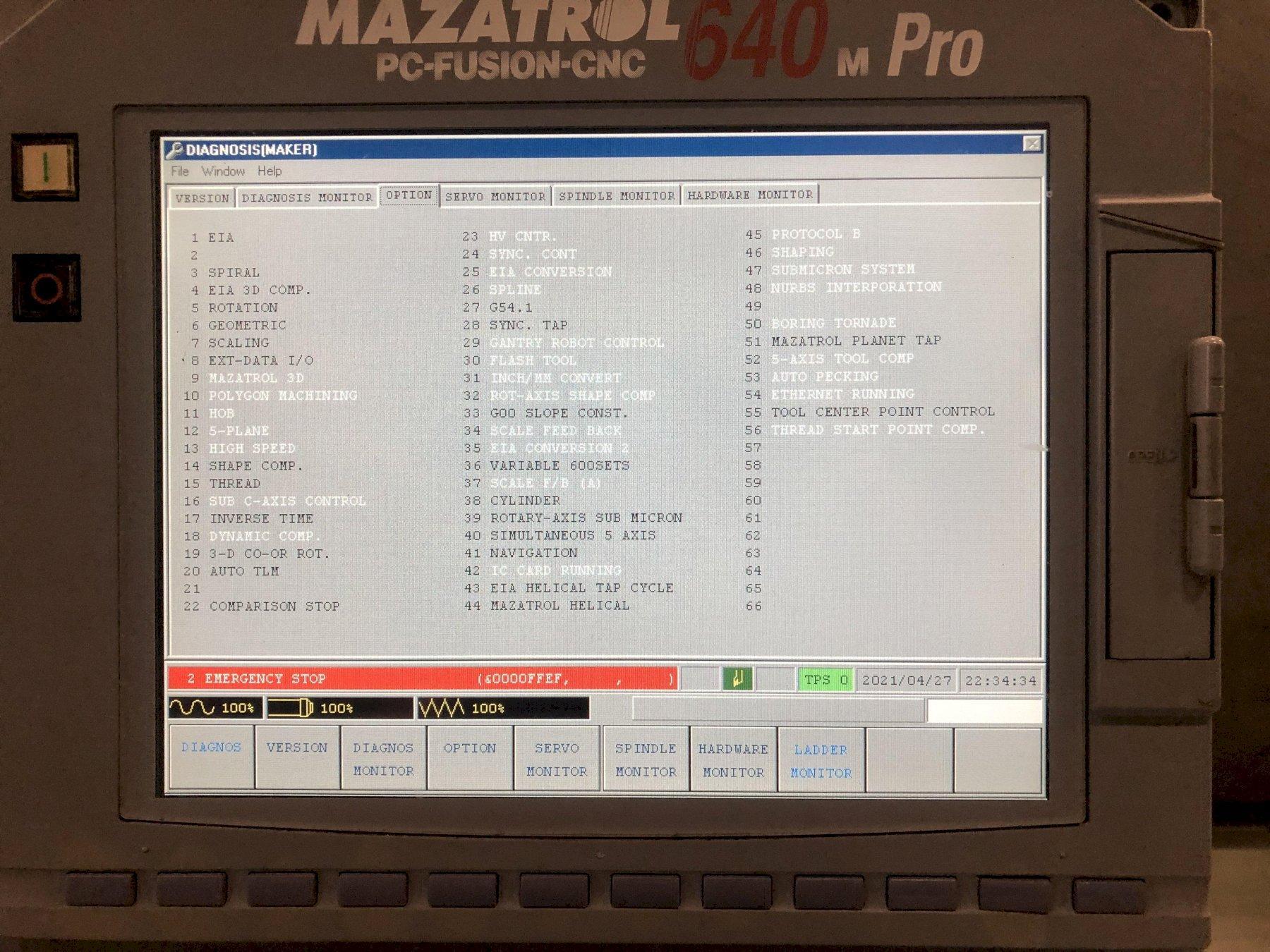

Mazatrol Fusion 640 Control
Tailstock | Tool Presetter
Renishaw Probing | CAPTO C8
CNC Milling/Turning Center Multi-tasking Lathe

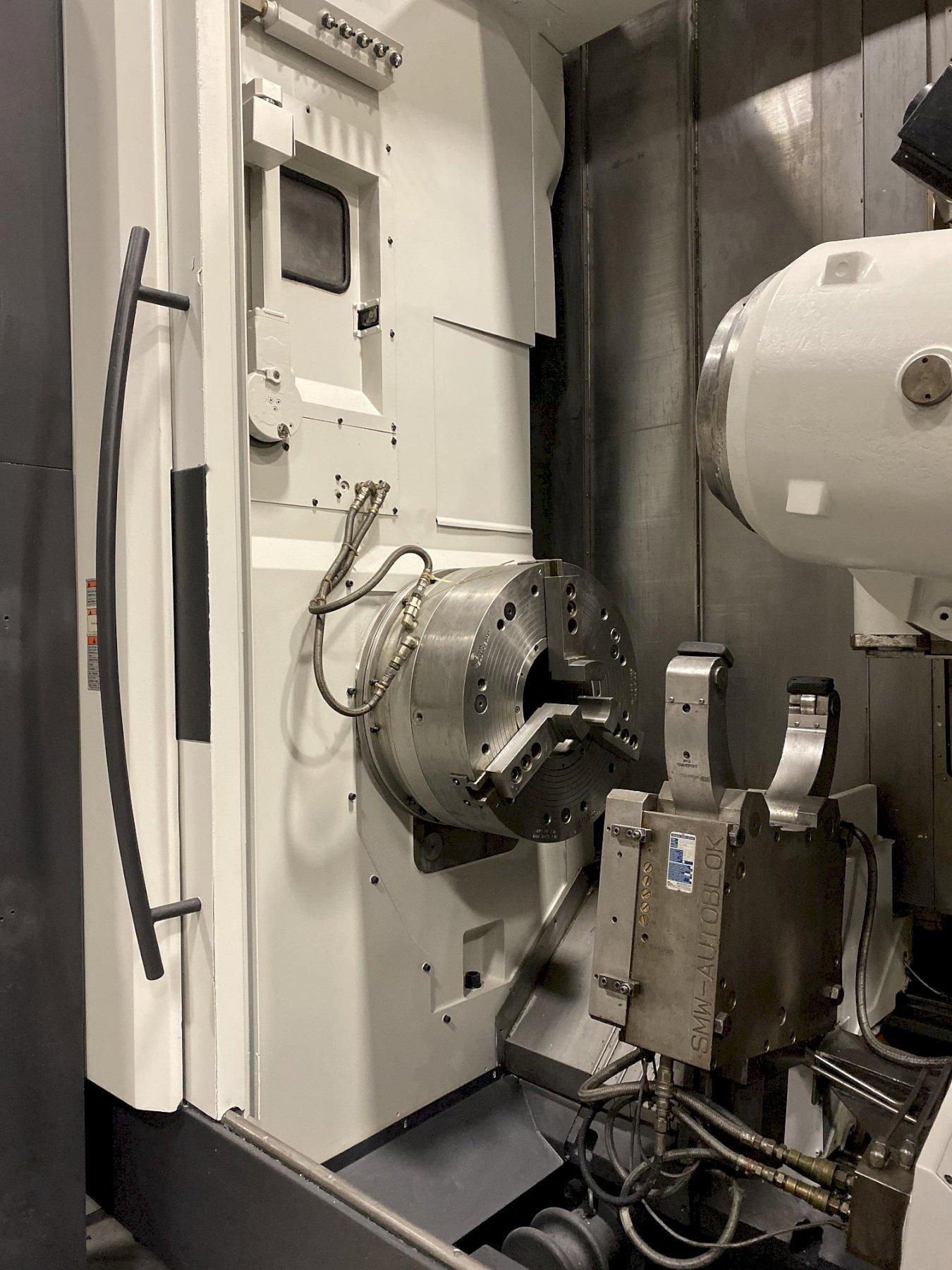

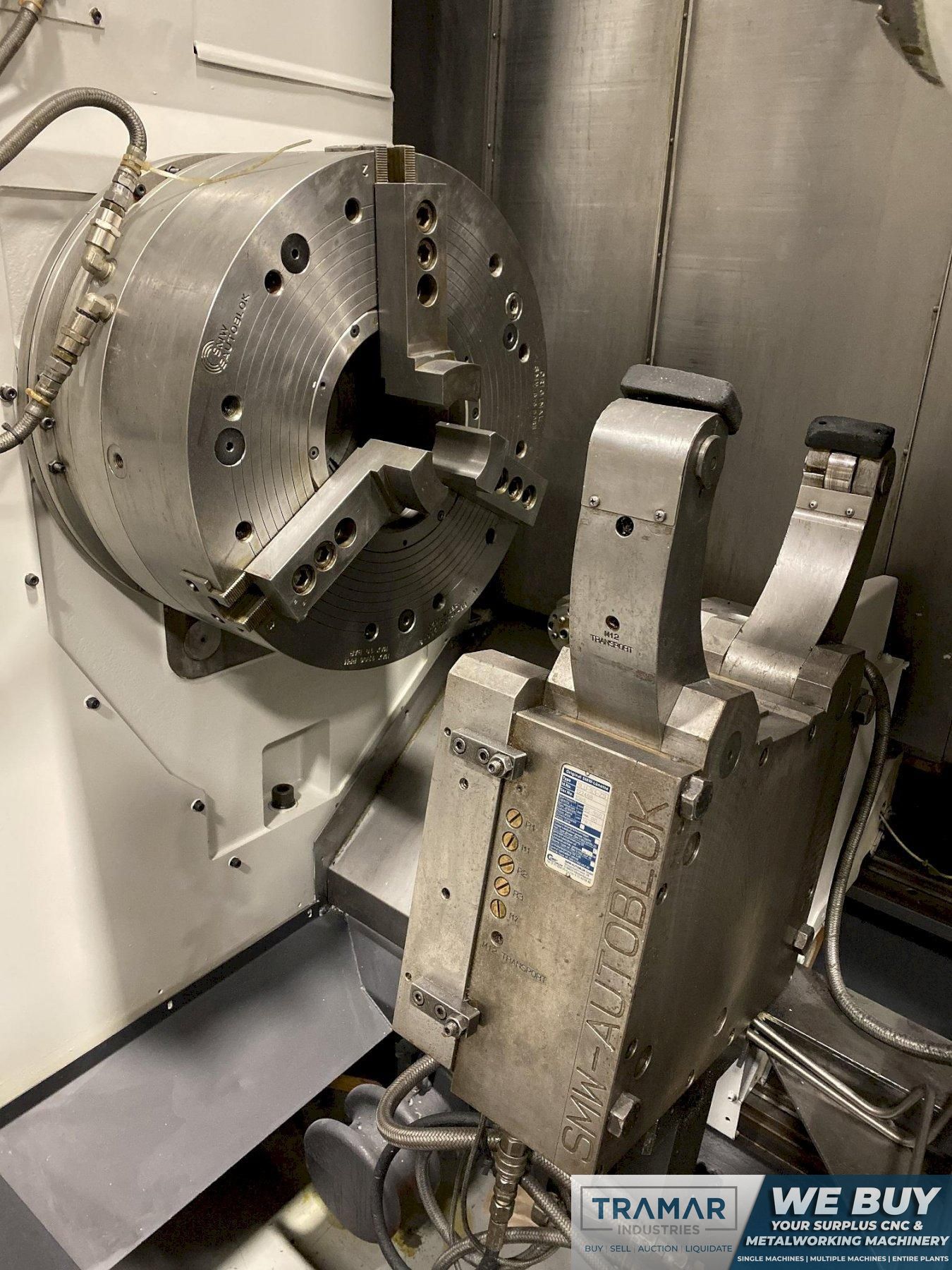

SMW Autoblok Steady Rest - SLU-5.1-ZS

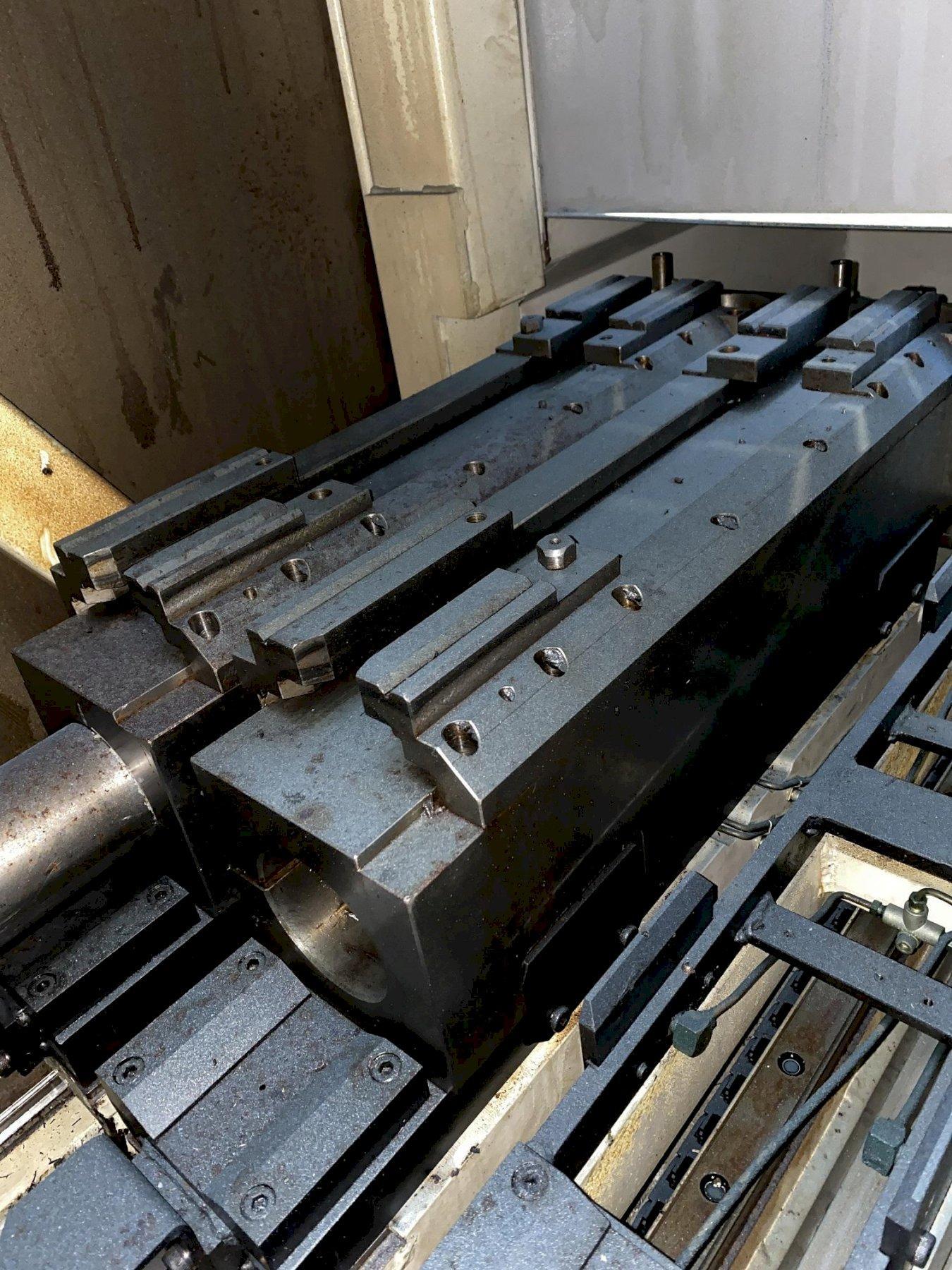

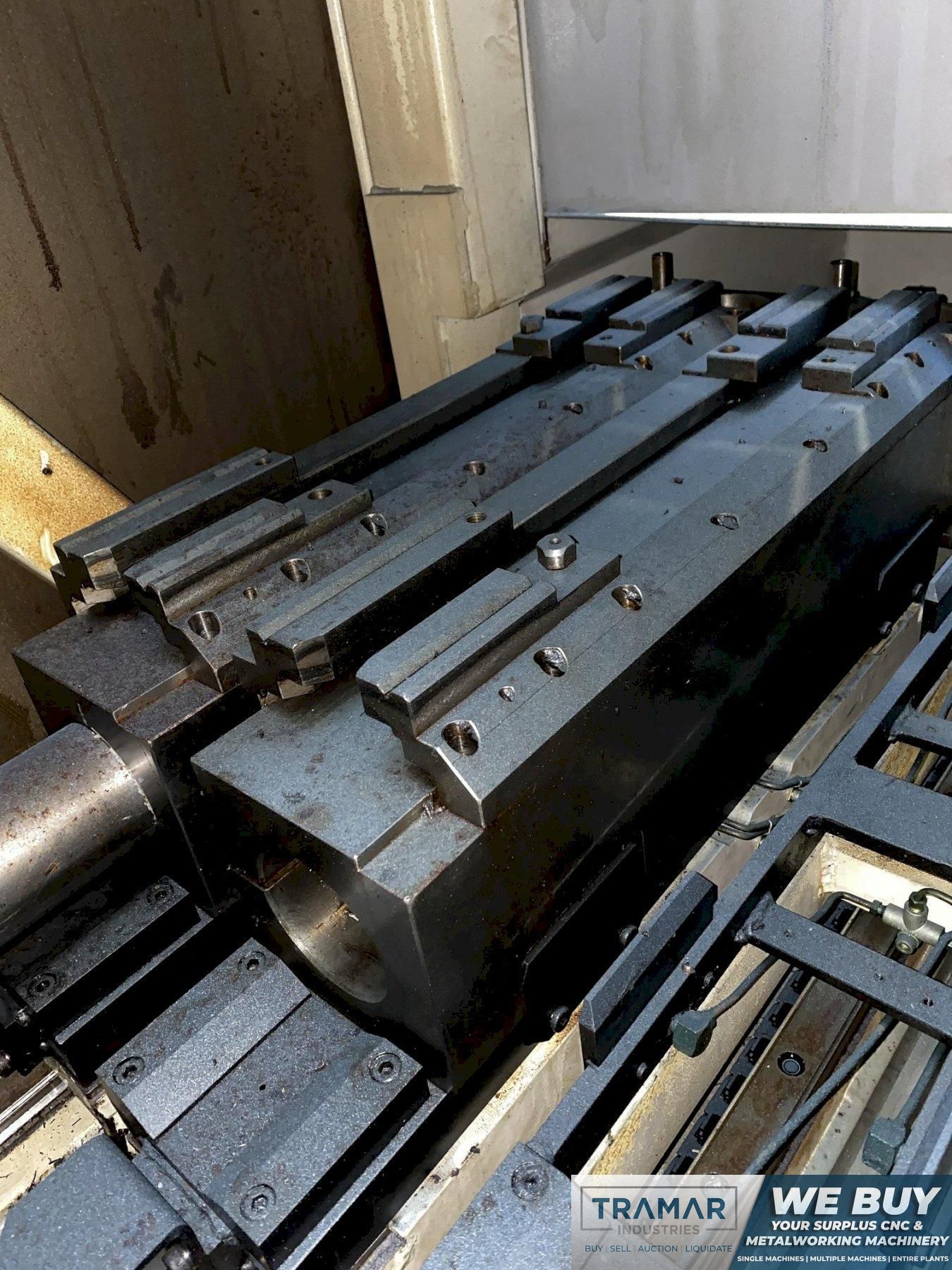

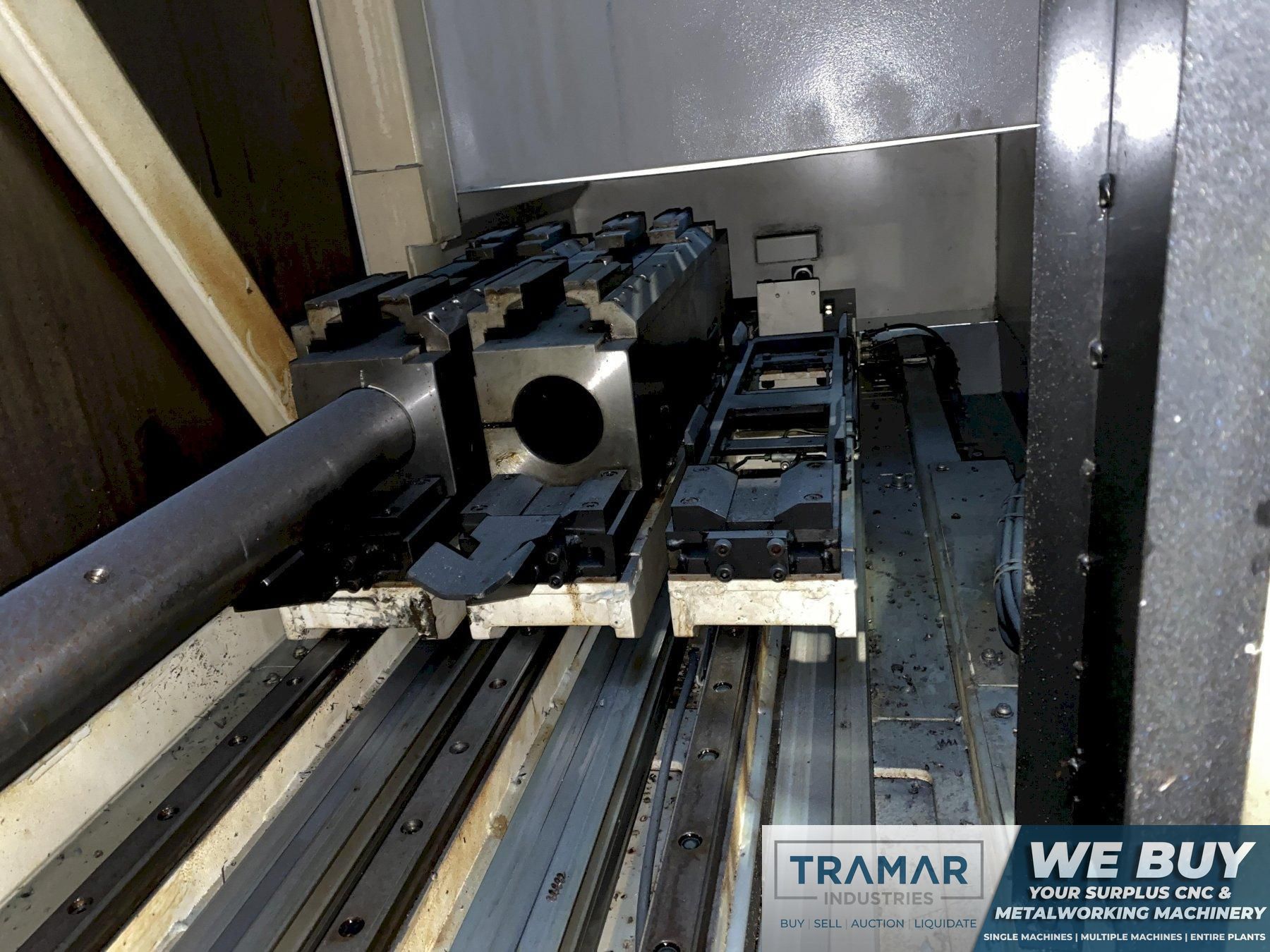

(3) Station Boring Bar Stacker
- (2) Boring Bars Holders (Ø80mm)
- (1) Boring Bar (Ø80mm x L800mm)

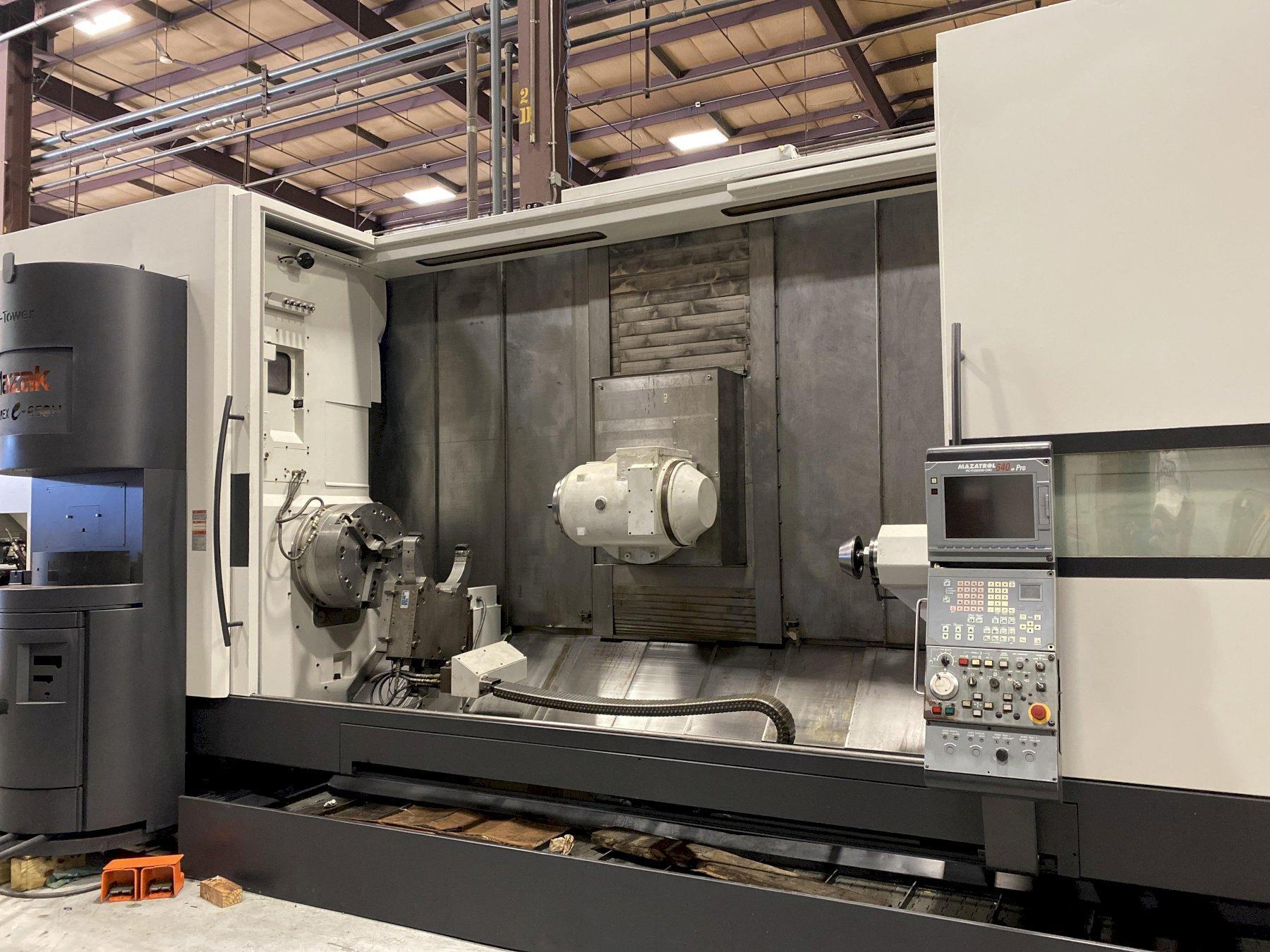

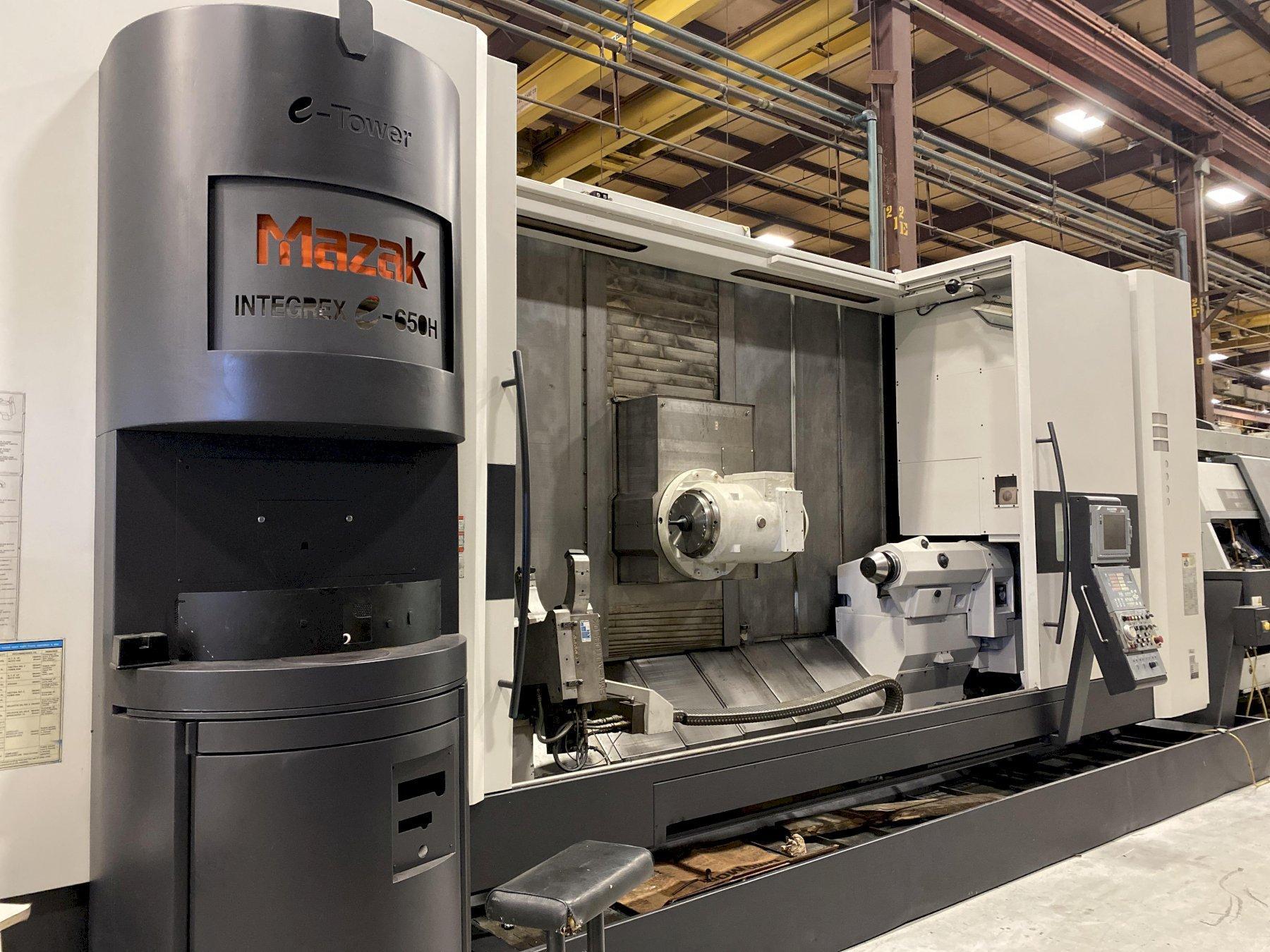

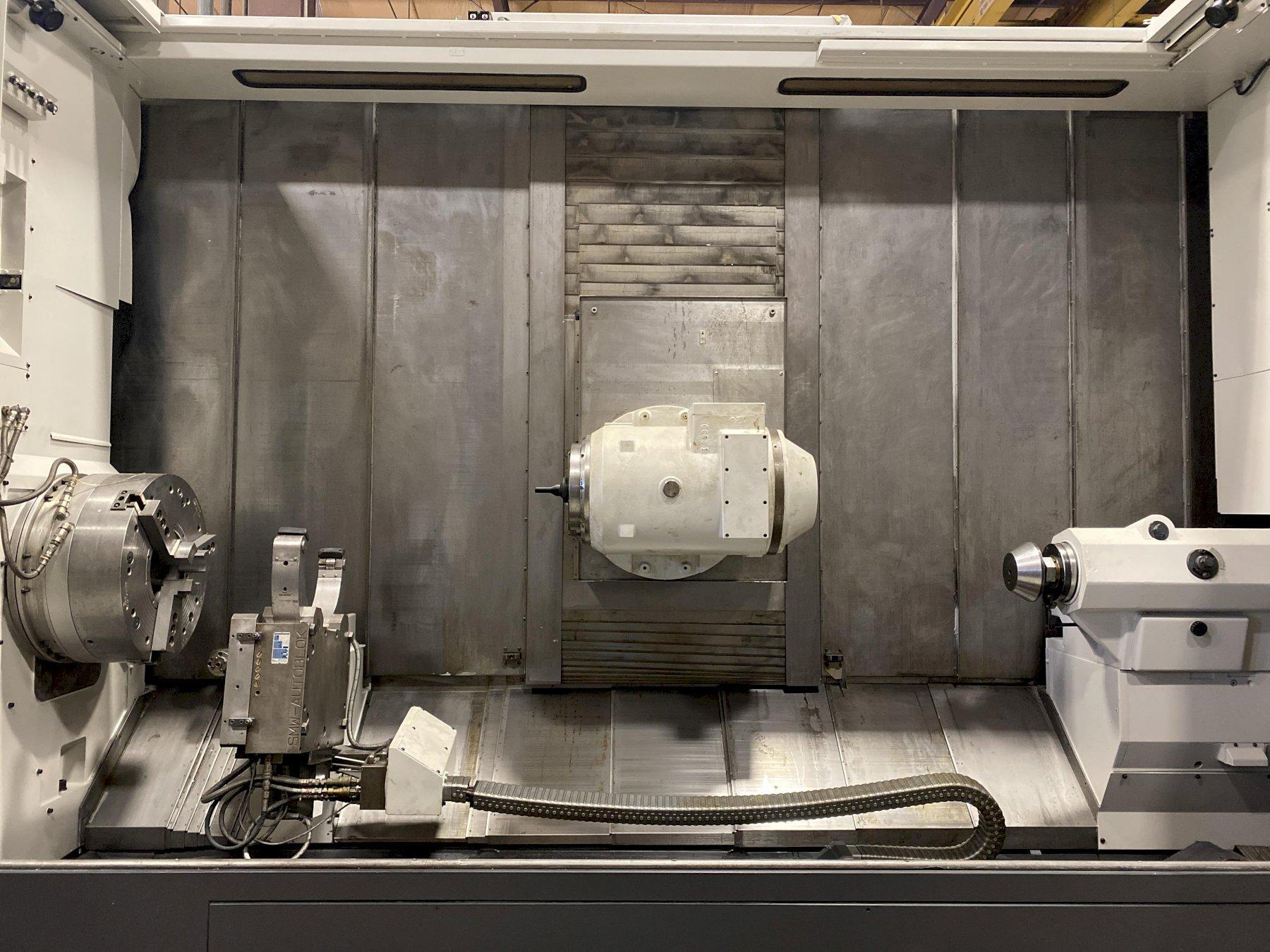

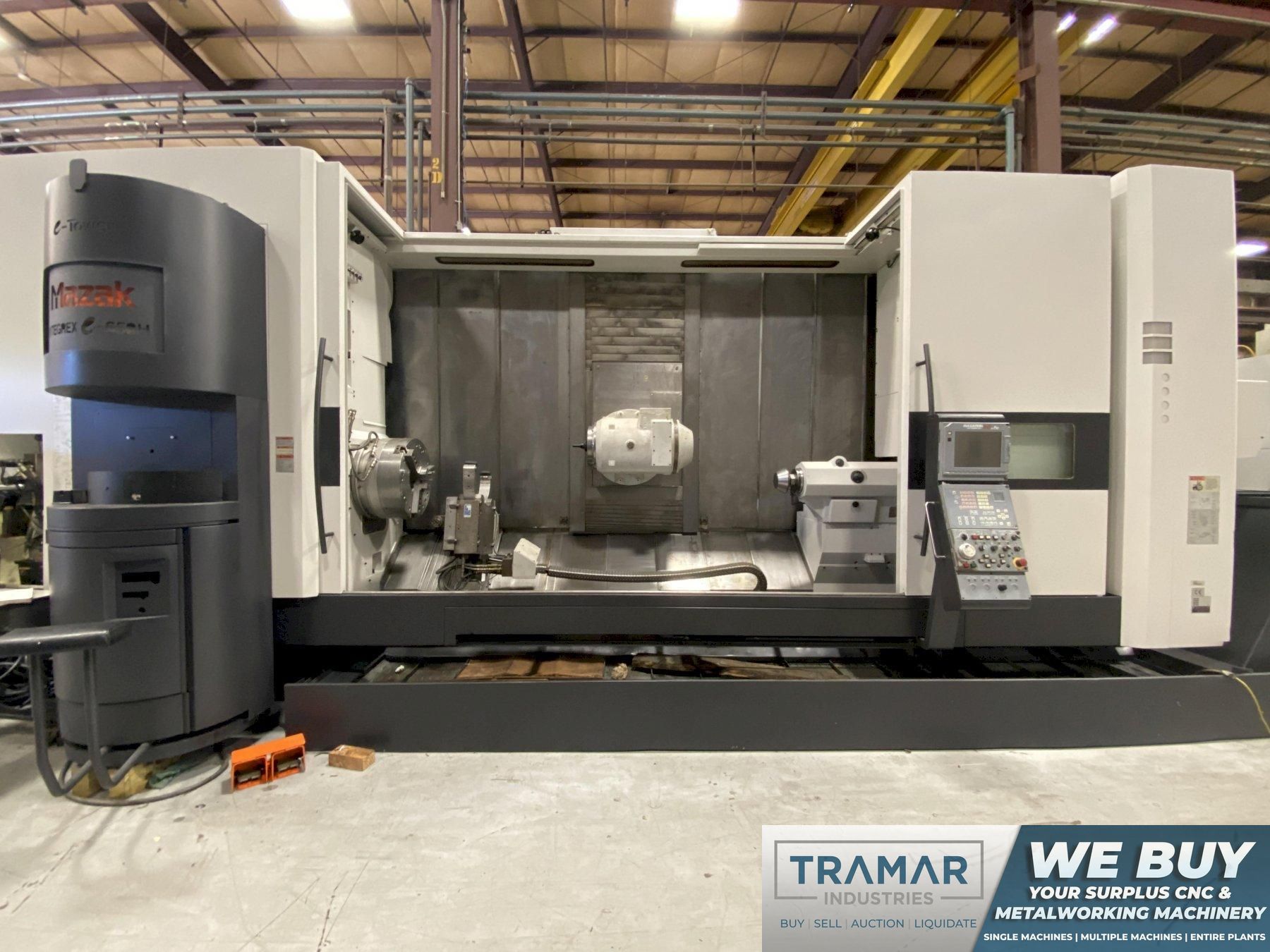

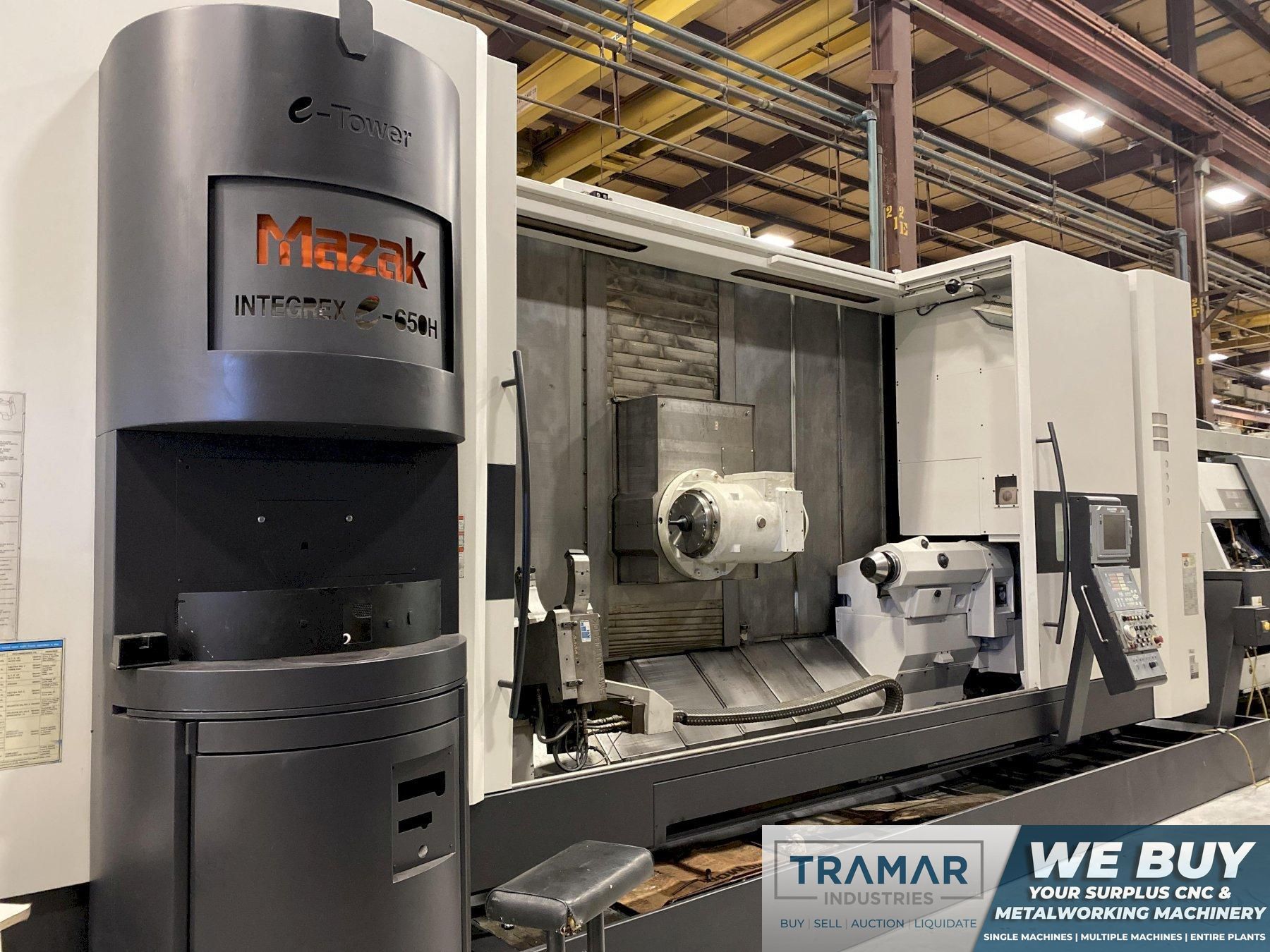

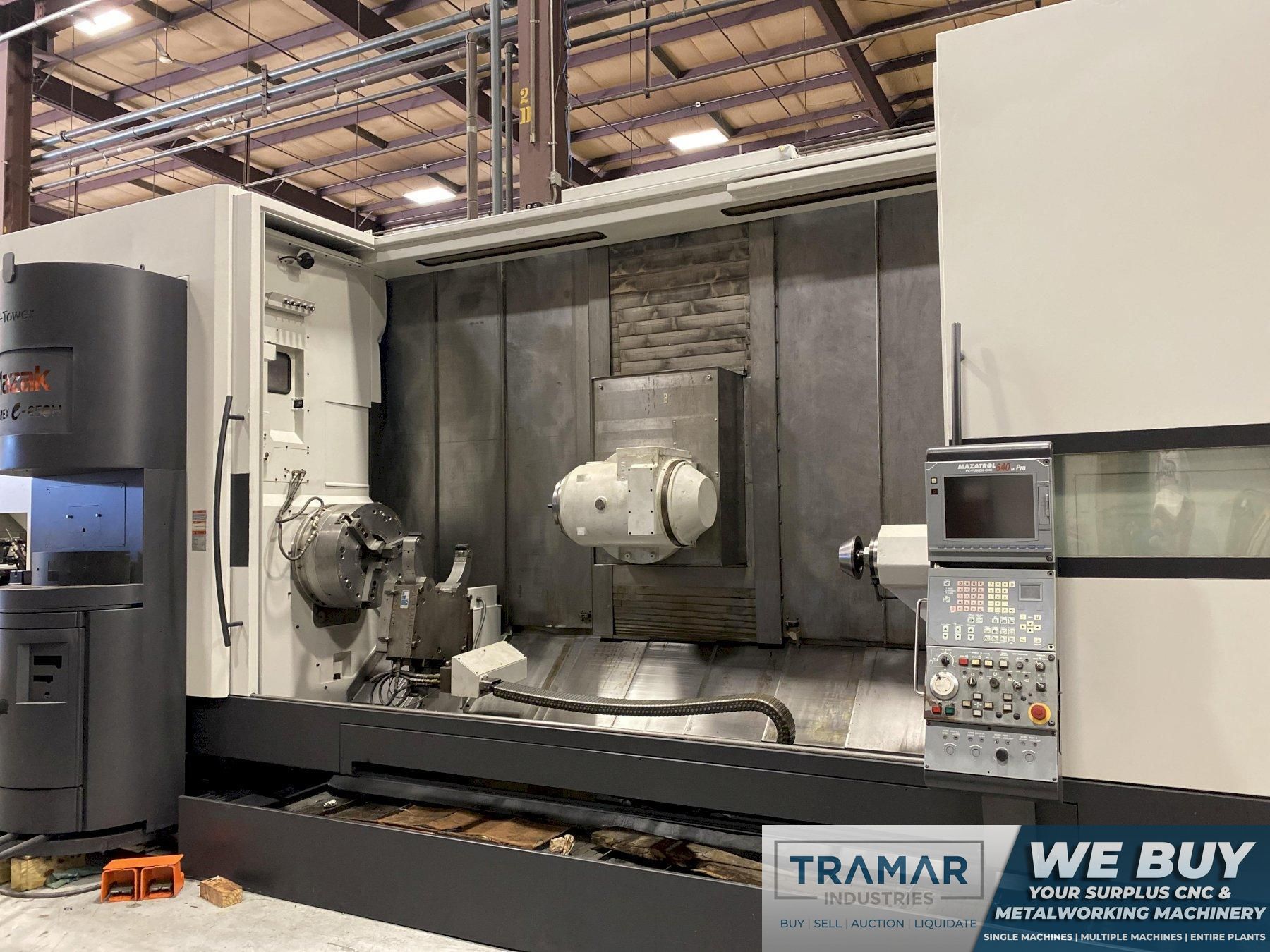

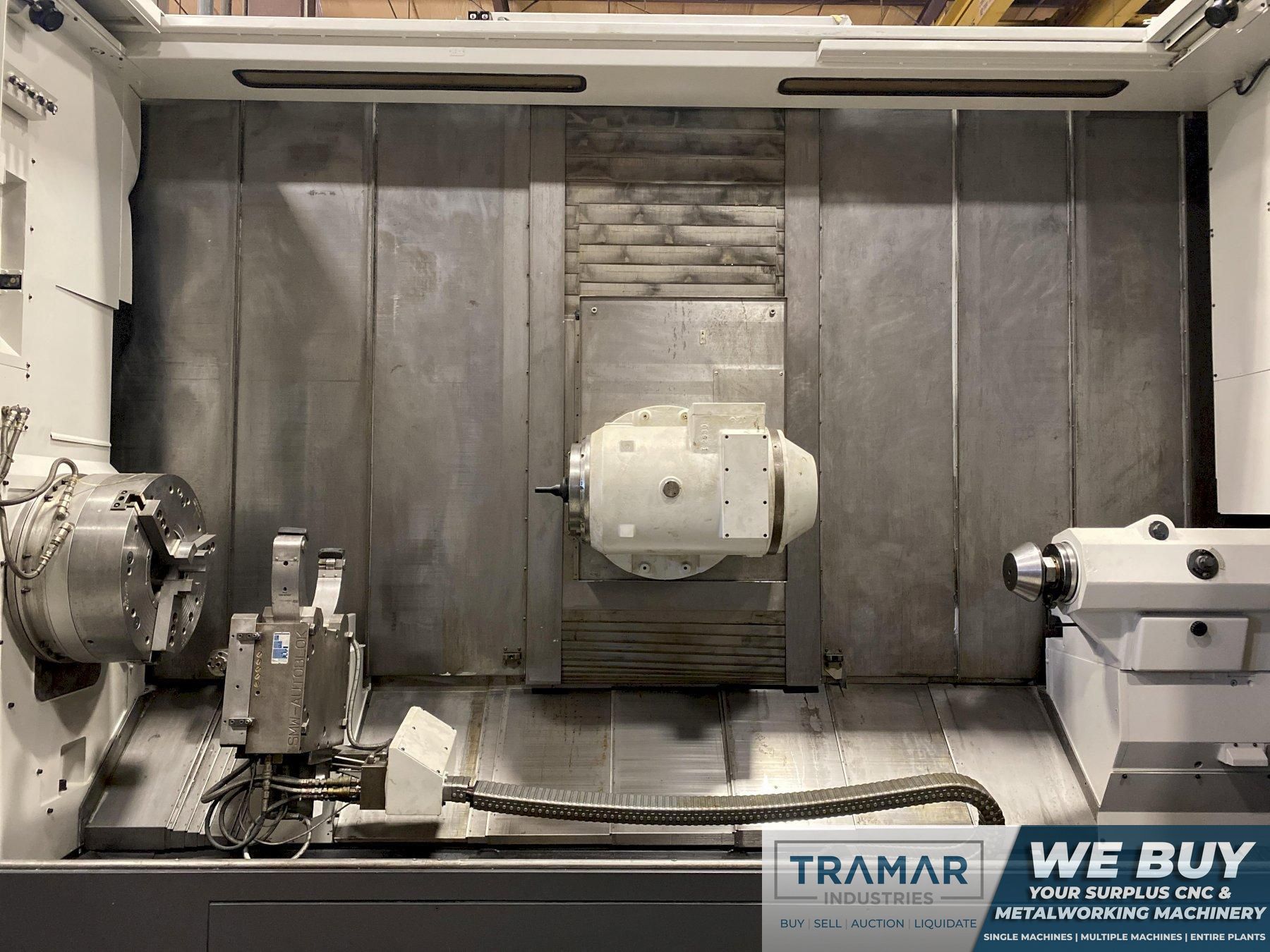

2003 MAZAK Integrex e650H/3000 CNC Horizontal Mill/Turn Lathe
Machine Specifications
CNC Control
yes

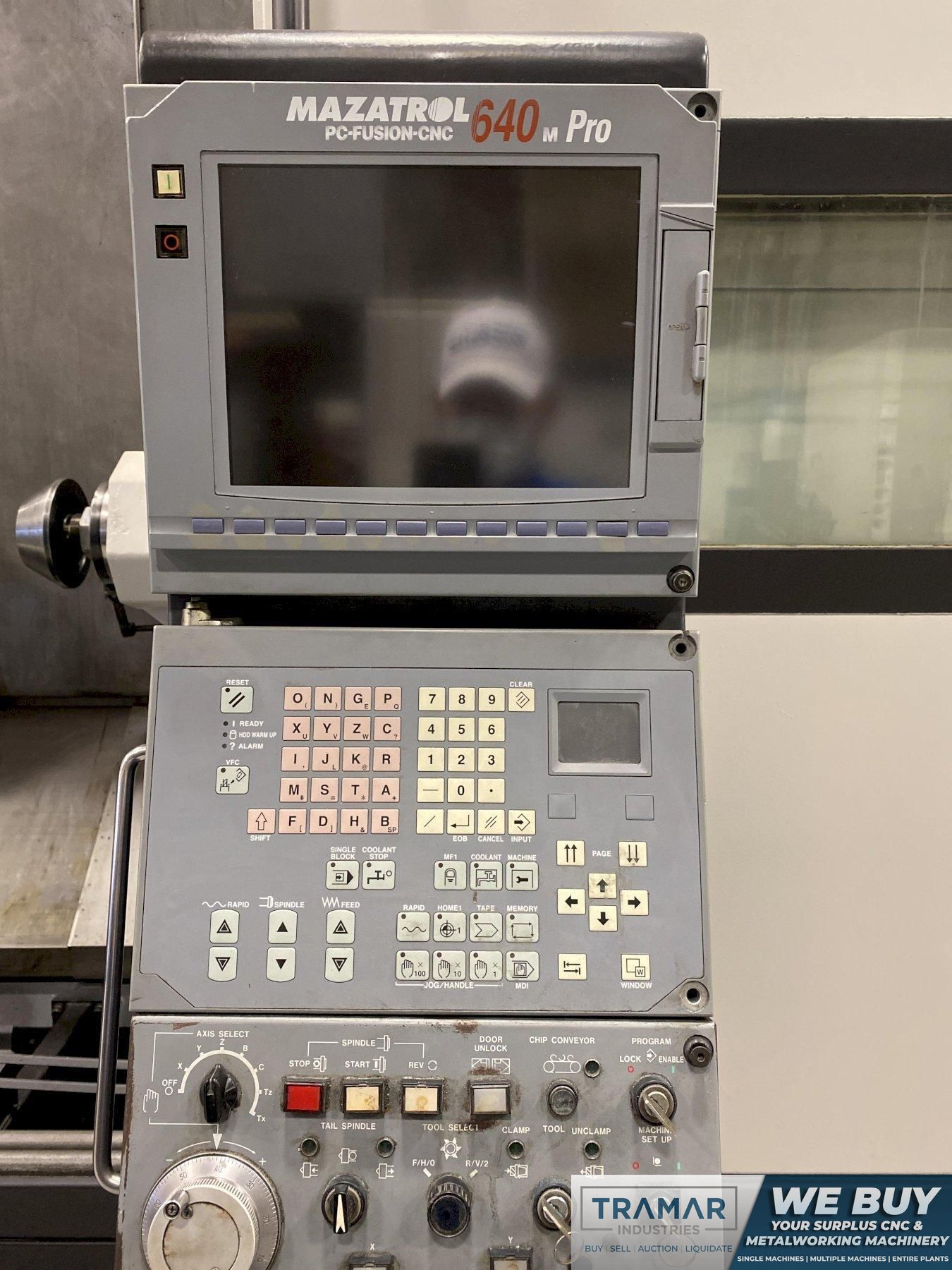

Control Type
Mazatrol Fusion 640M Pro
# Axis
5
Swing
36.2"
Turning Diameter
36.2"
Center Distance
123"

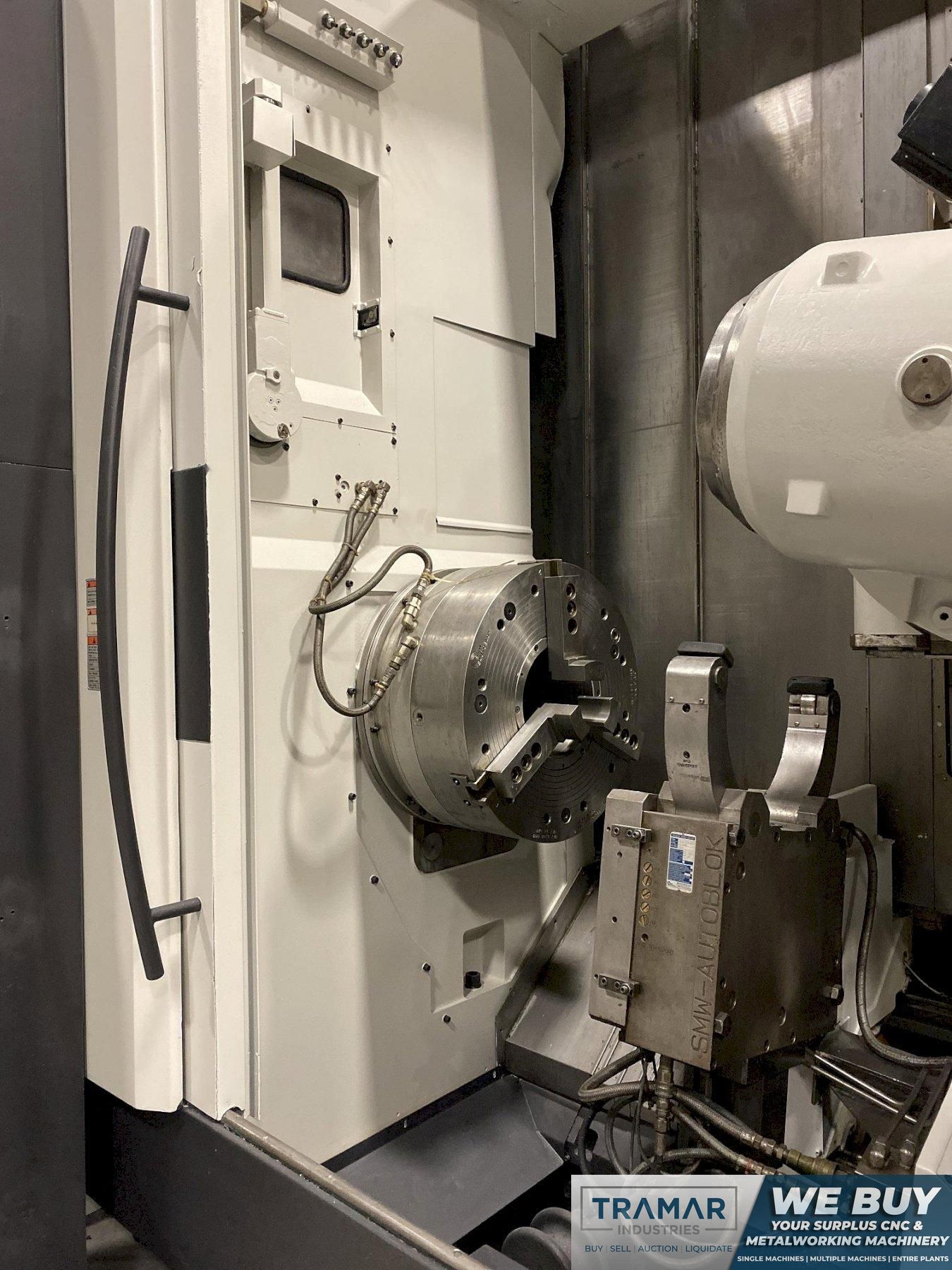

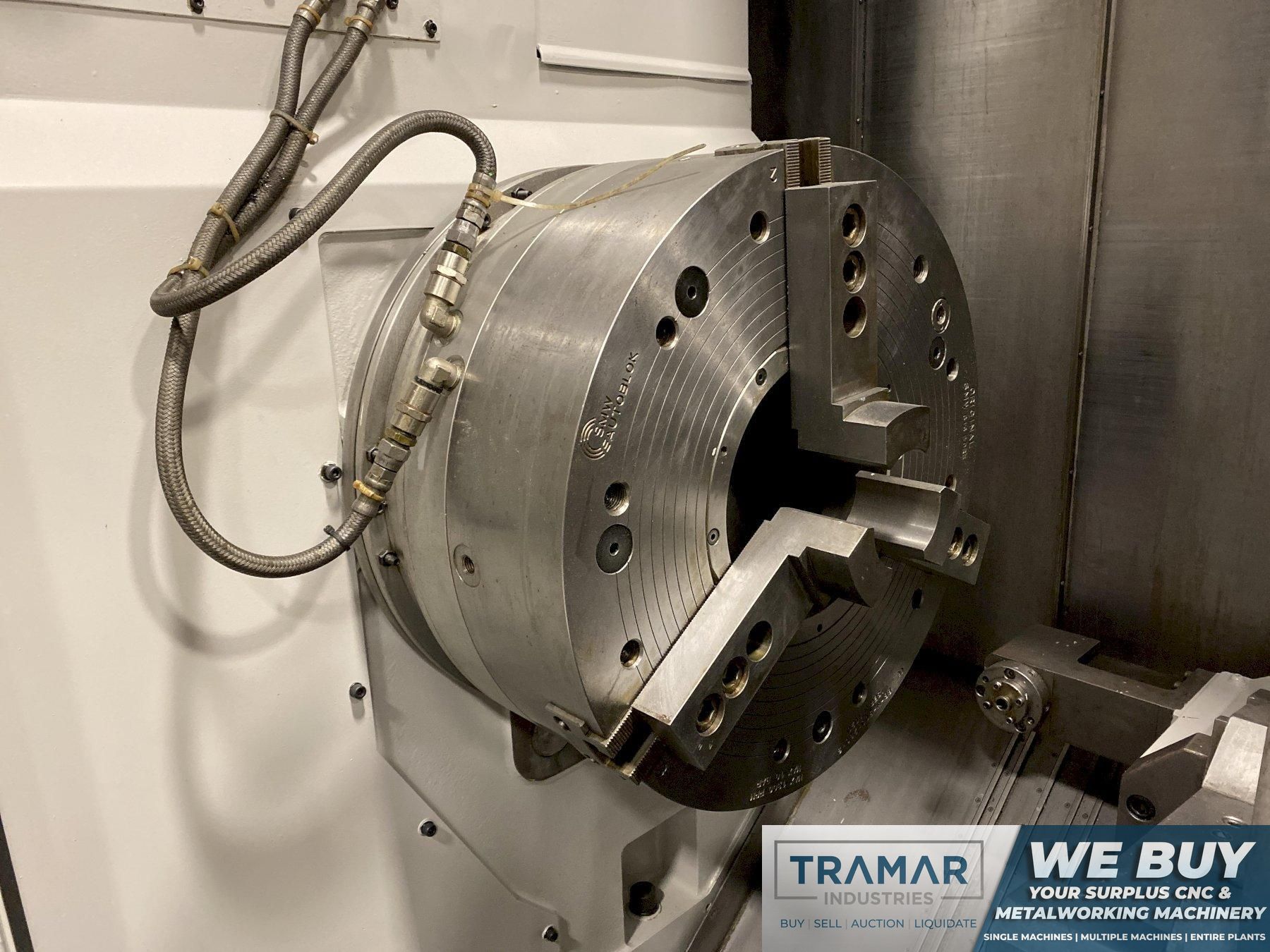

Chuck Size
20"
Bar Capacity
6.3"
X Axis Travel
40.35"
Z Axis Travel
132.87"
Y Axis Travel
25.6"

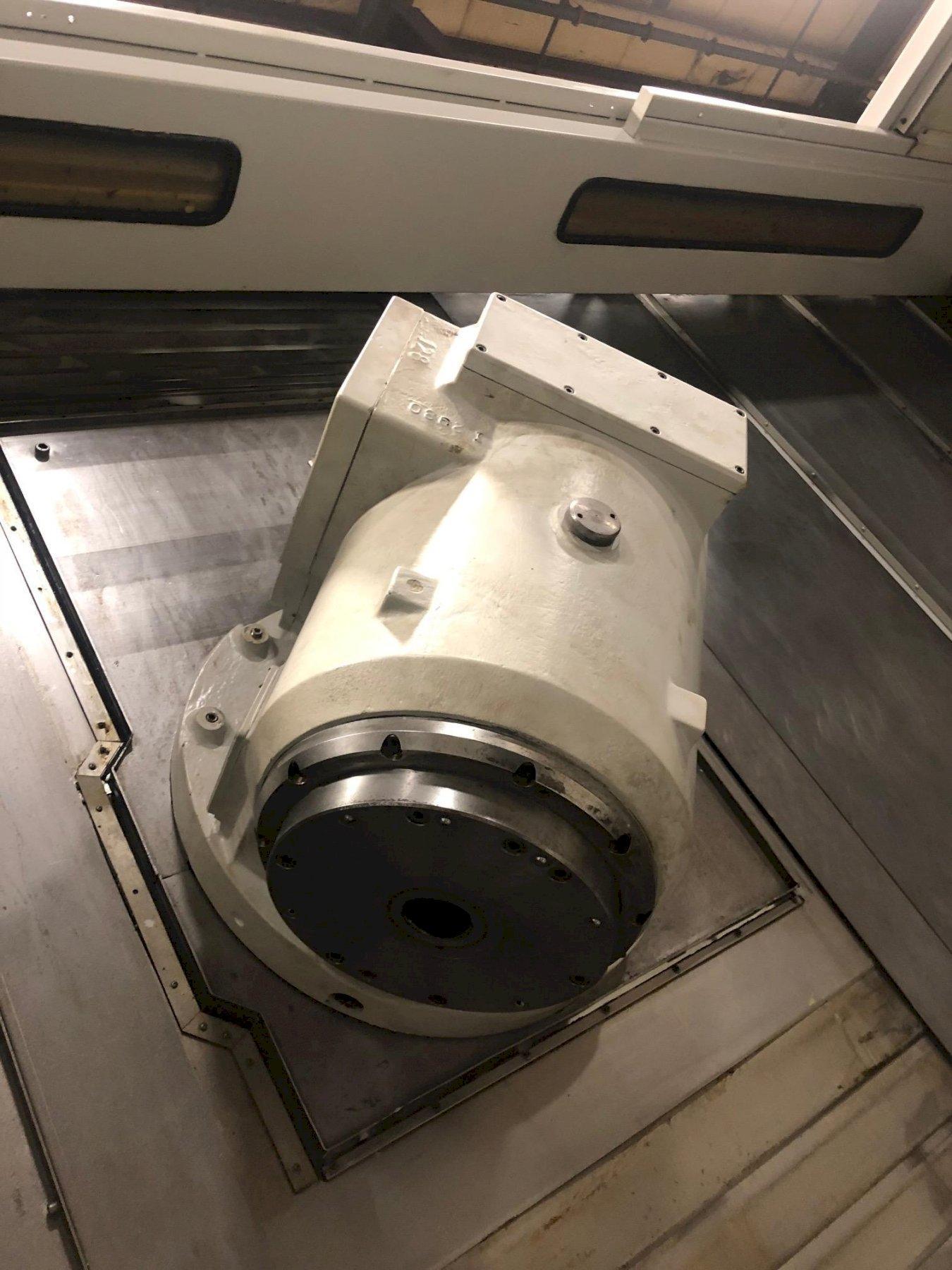

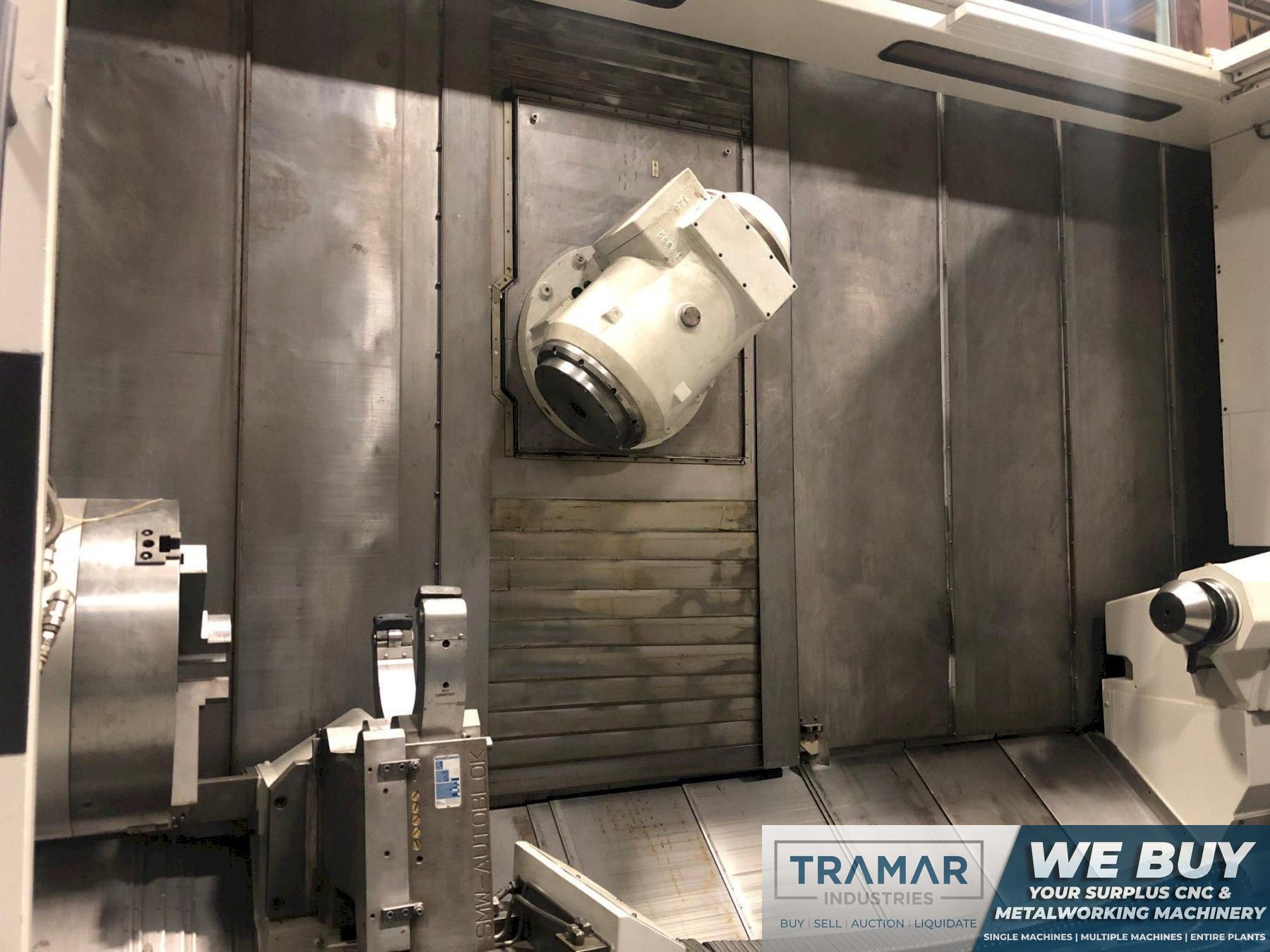

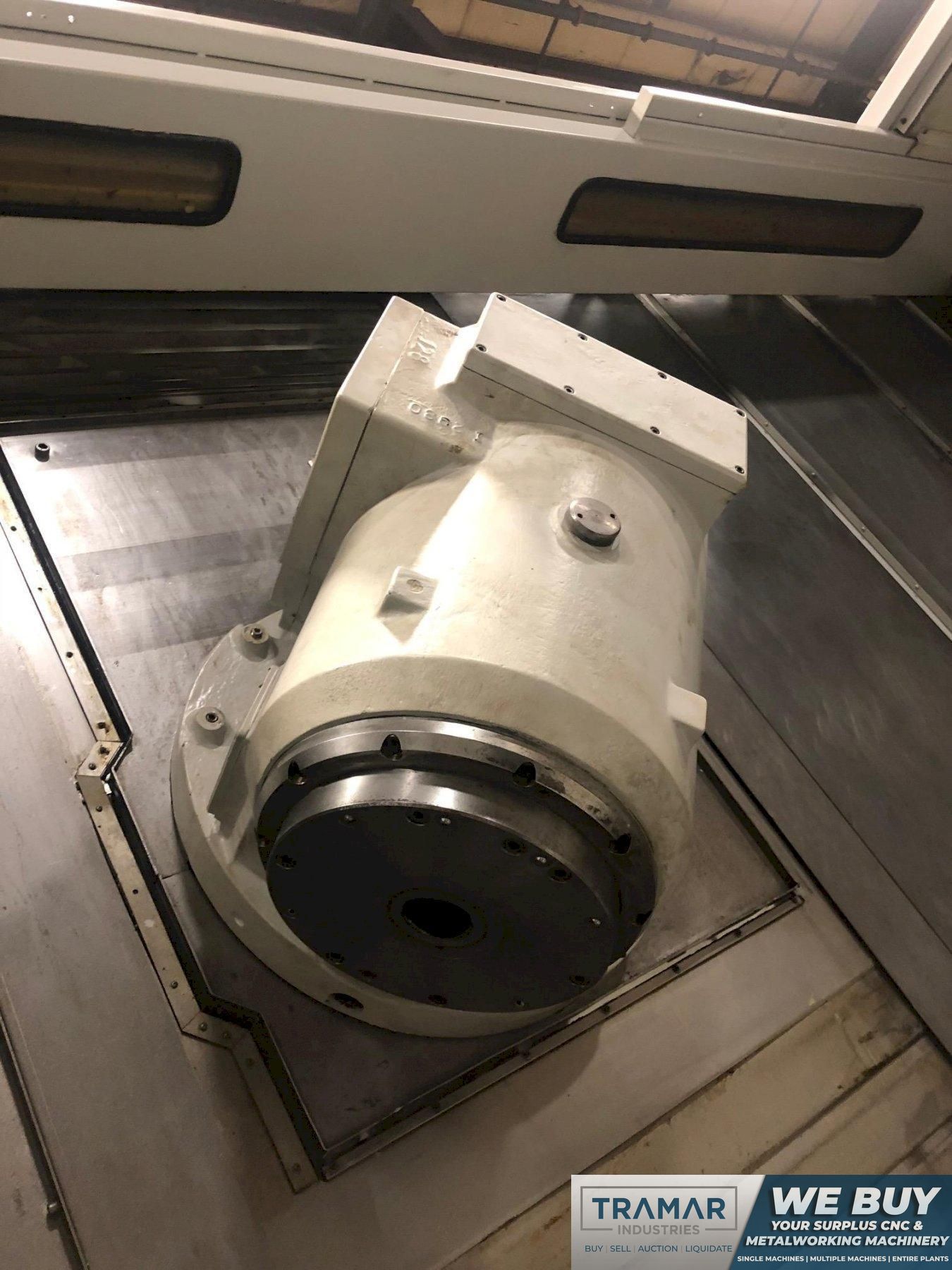

B Axis Head Tilt
-30° to +210°
C Axis Index
0.001°
Rapid Traverse (X/Z)
1,575 IPM
Spindle Speed (RPM)
1,000
Main Motor
60 HP

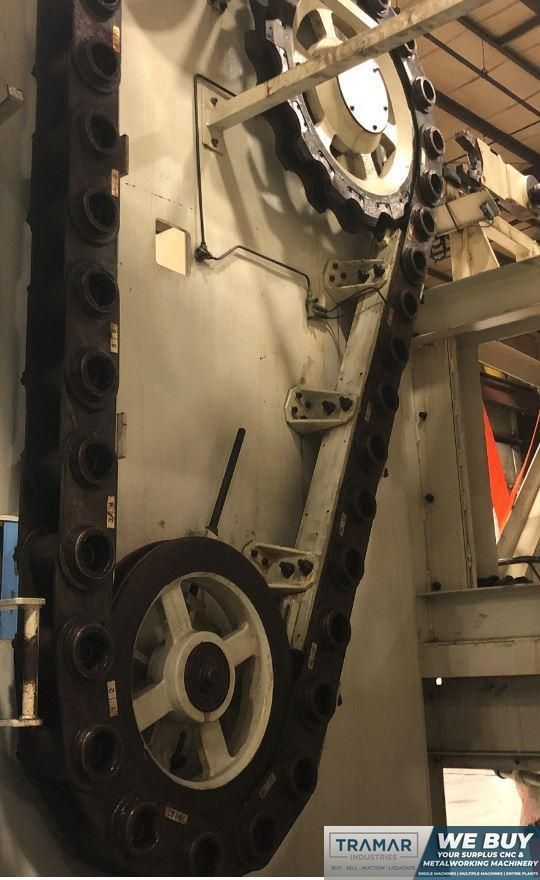

Turret Capacity
40

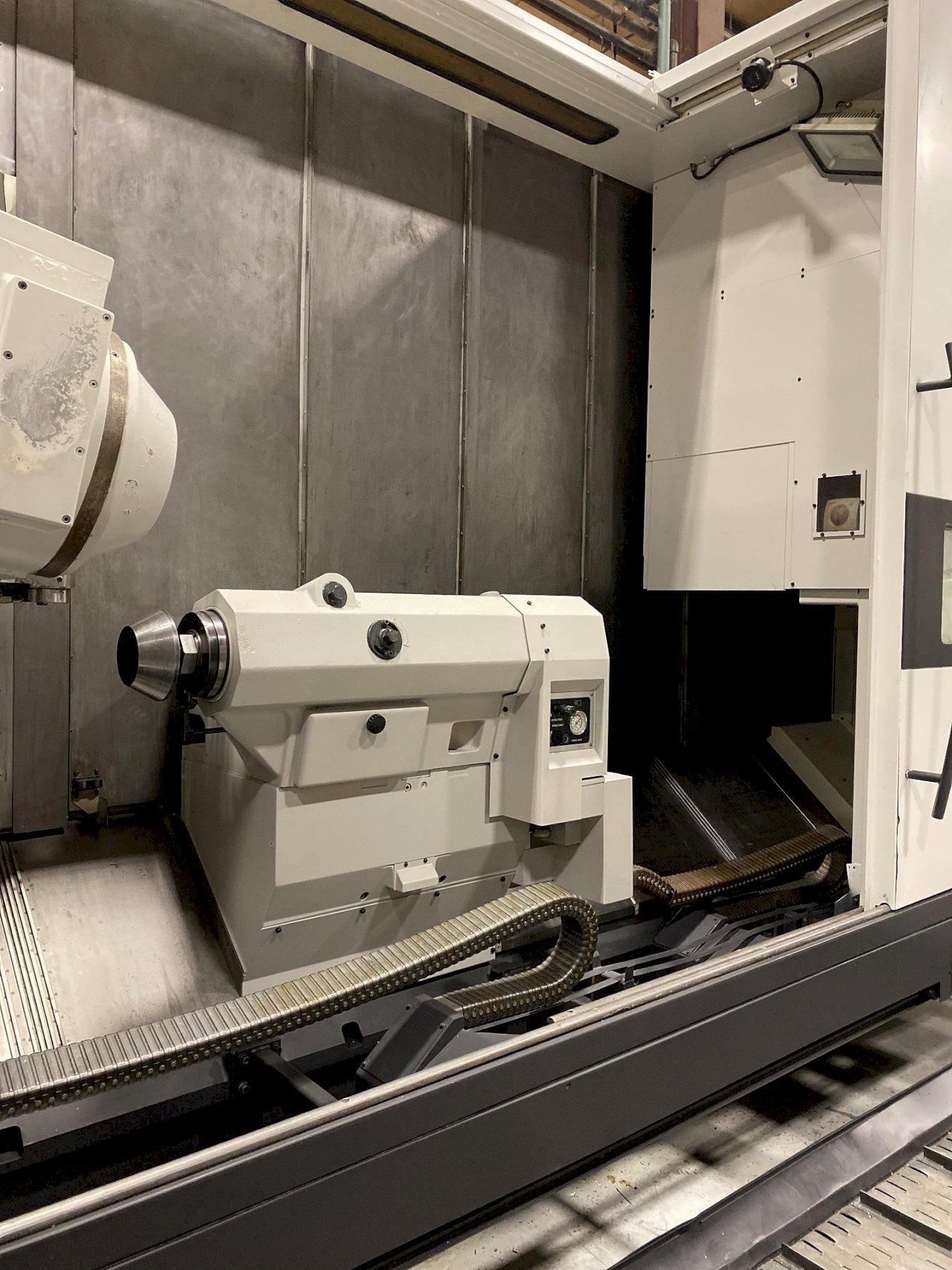

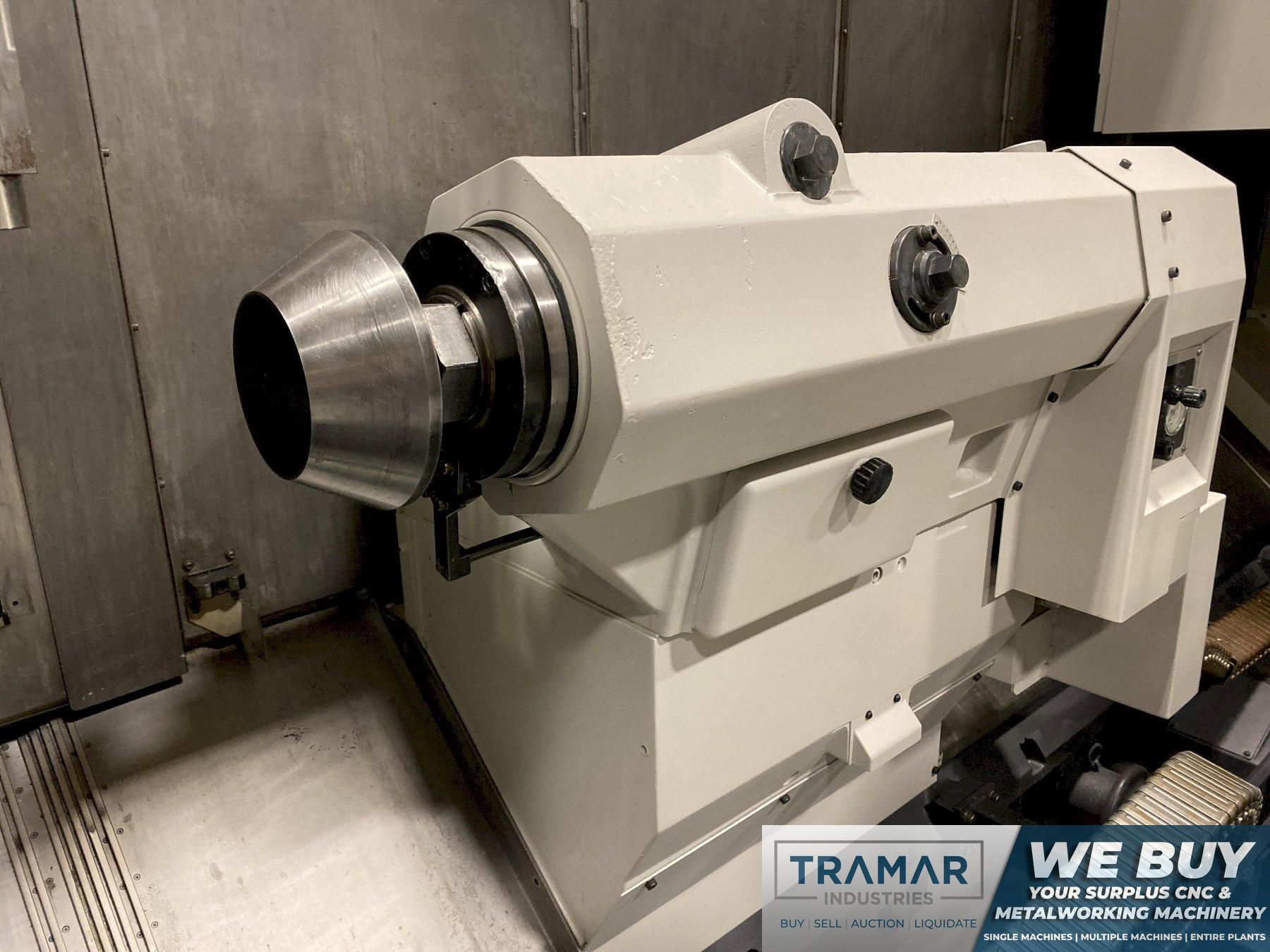

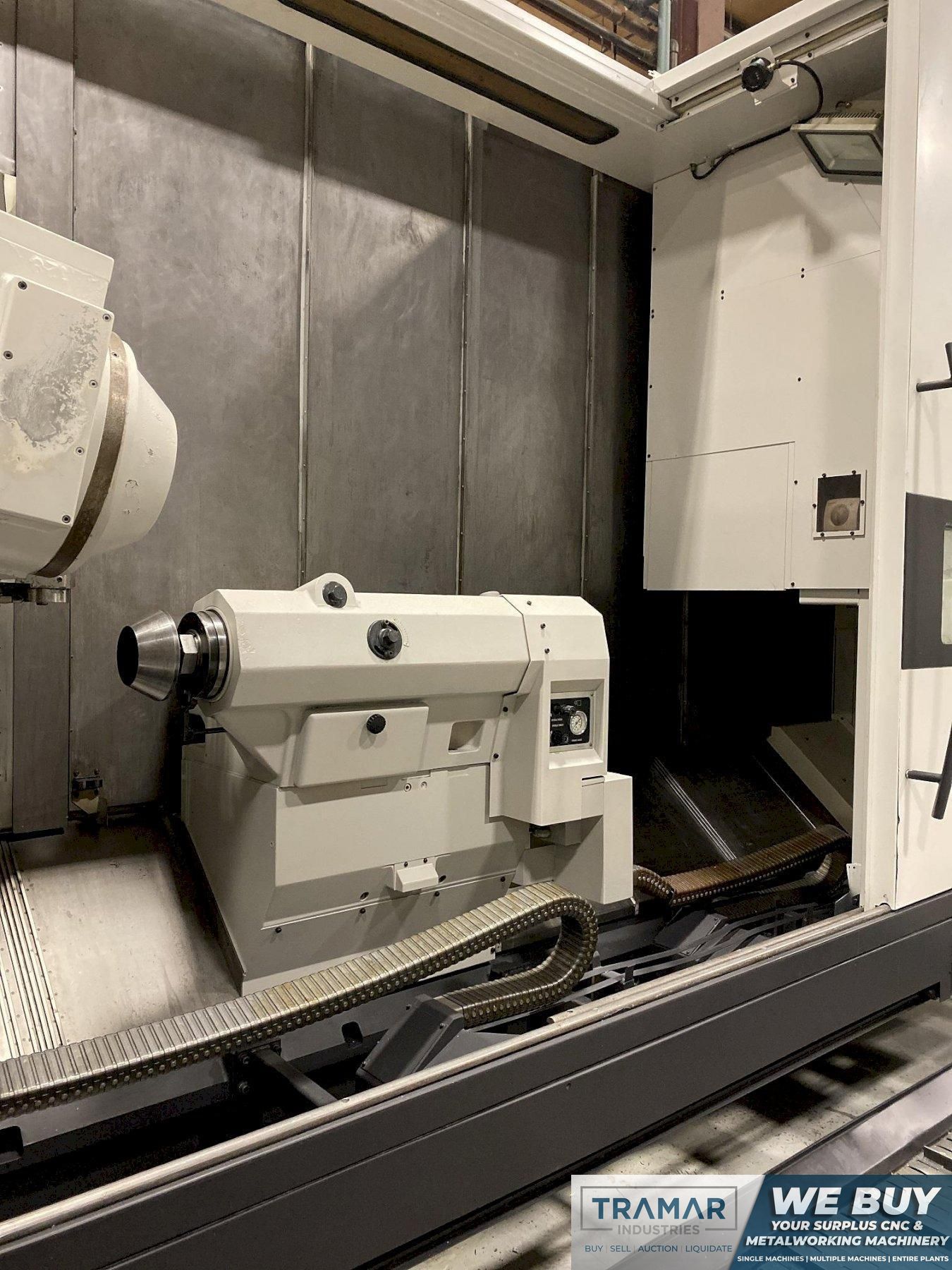

Tailstock
yes
Live Tooling
yes
Milling Spindle Taper
CAPTO C8
Live Milling Speed (RPM)
10,000 RPM - Milling Spindle
Live Milling Motor
50 hp - Milling Spindle
Y Axis
yes
Sub Spindle
no
Dimensions
TBD
Weight
70,000 pounds

Equipped With:

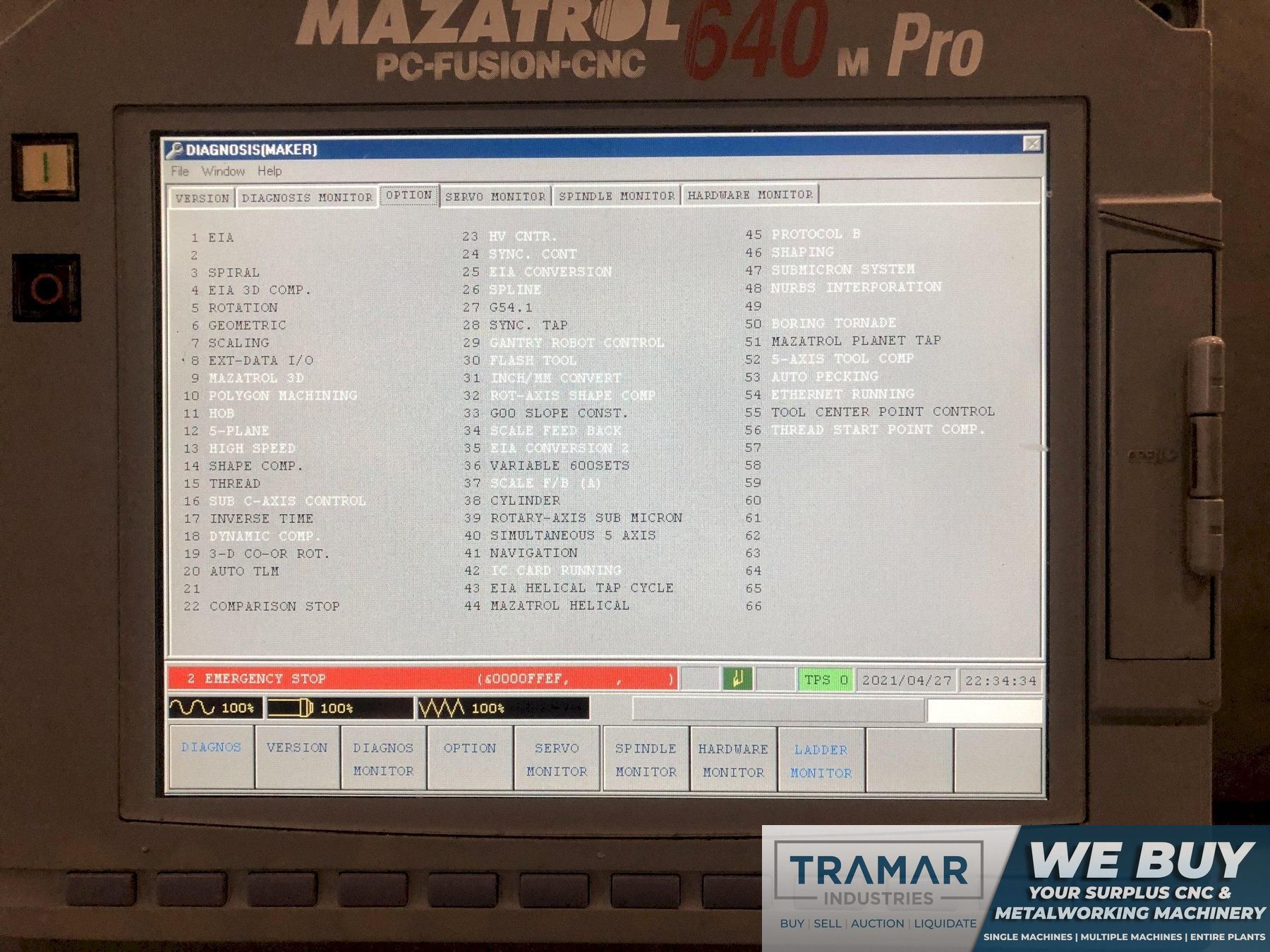

- Mazatrol Fusion 640M Pro Control
- Chip Conveyor
- Coolant Tank
- Tailstock
- Tool Presetter
- Auto Tool Length Measurement
- Simultaneous 5-axis Machining
- Rotation & Scaling
- Renishaw Probing

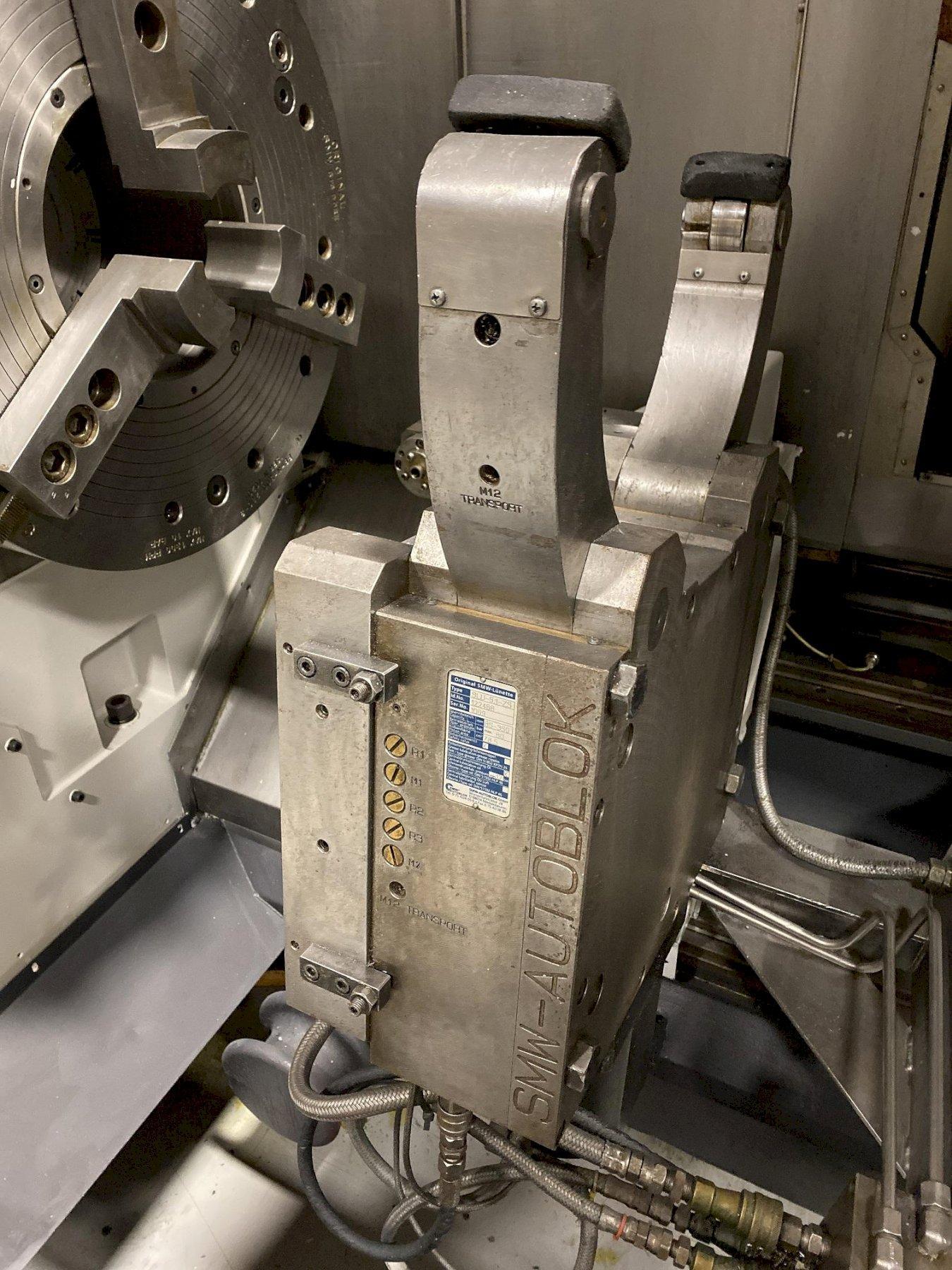

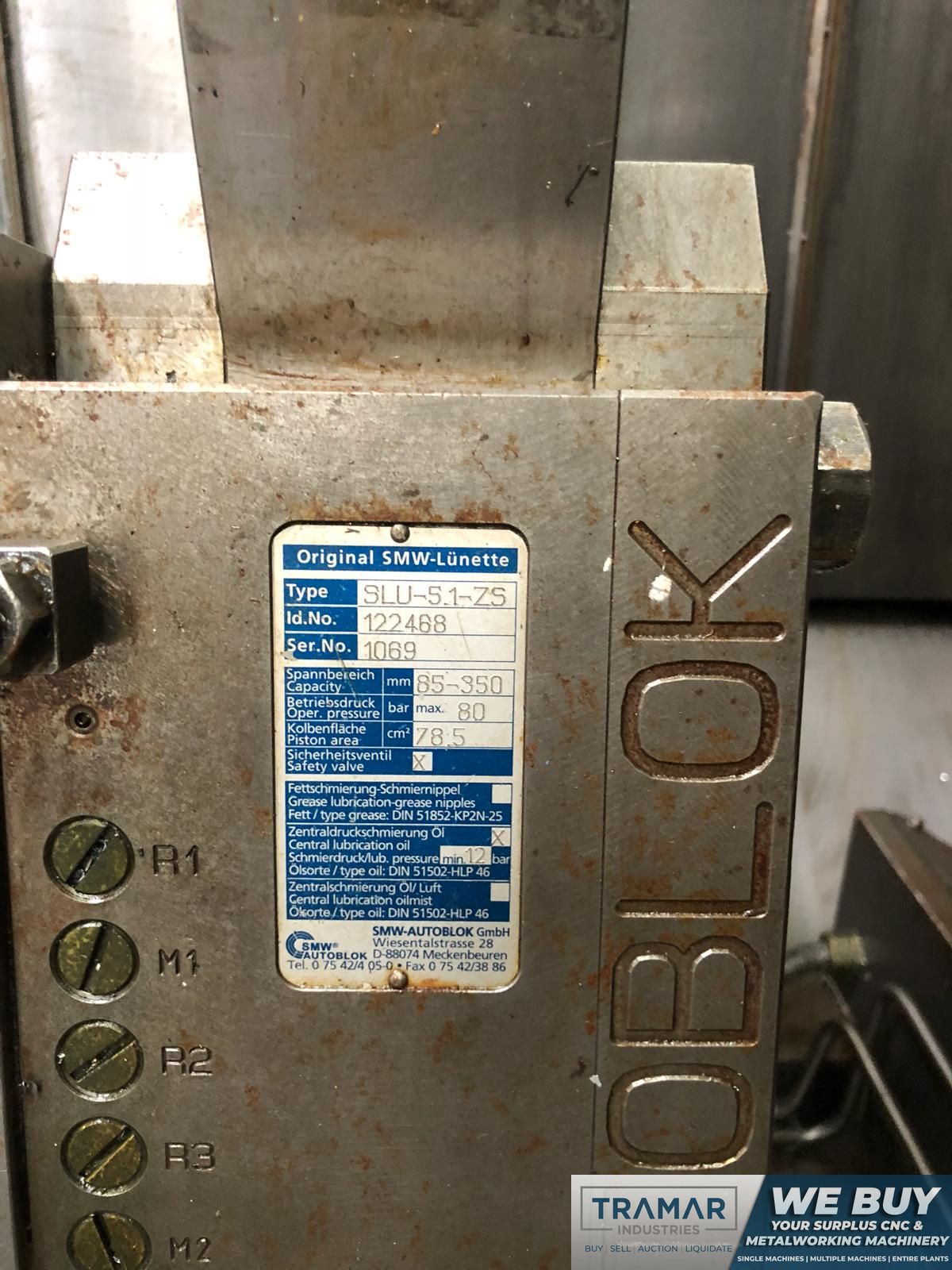

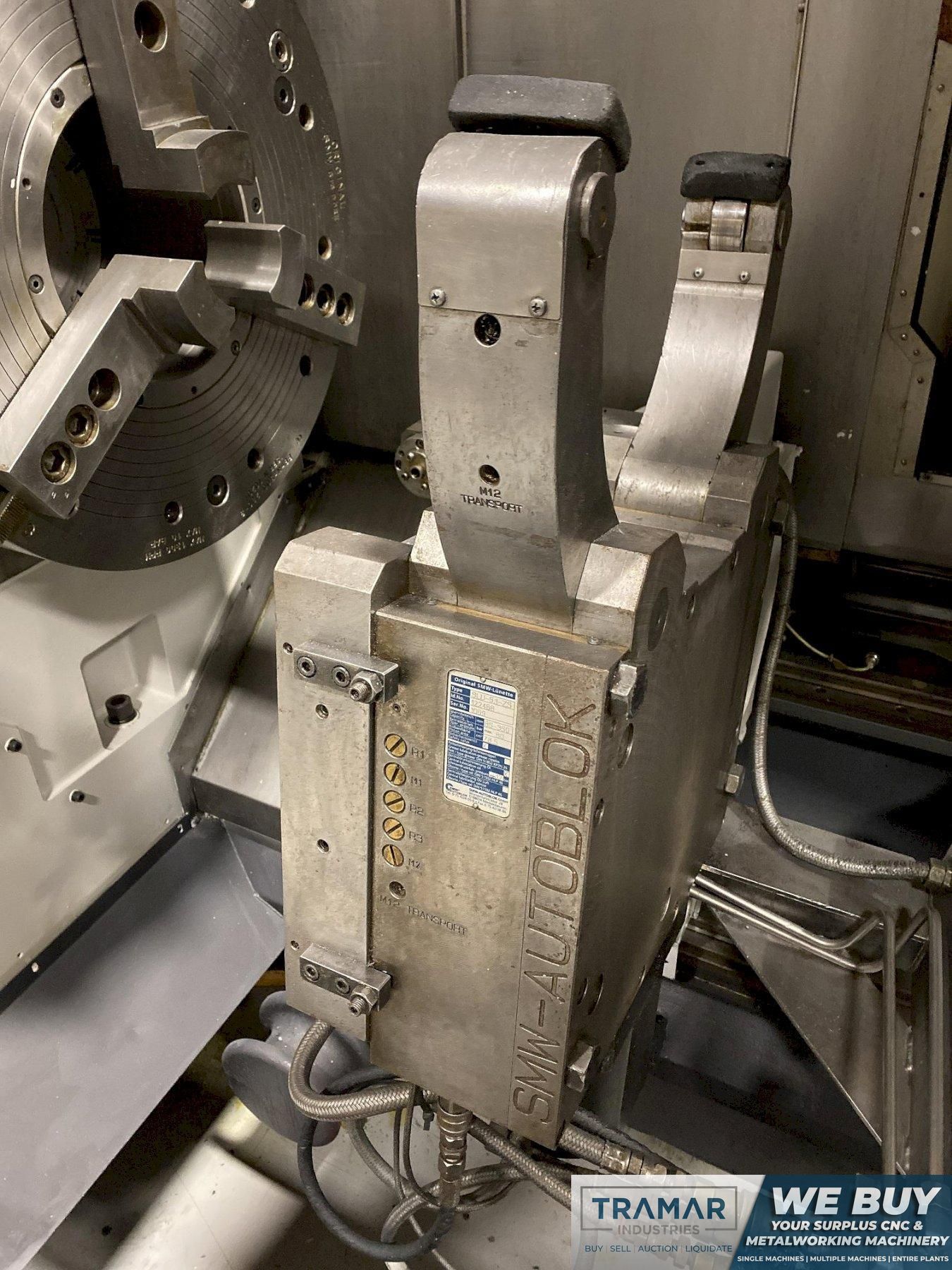

- SMW Autoblok Steady Rest Model SLU-5.1-ZS
  * Minimum Capacity - 3.35"
  * Maximum Capacity - 13.78"
- CNC Multi-Tasking Turning Center
- (3) Boring Bar Attachments

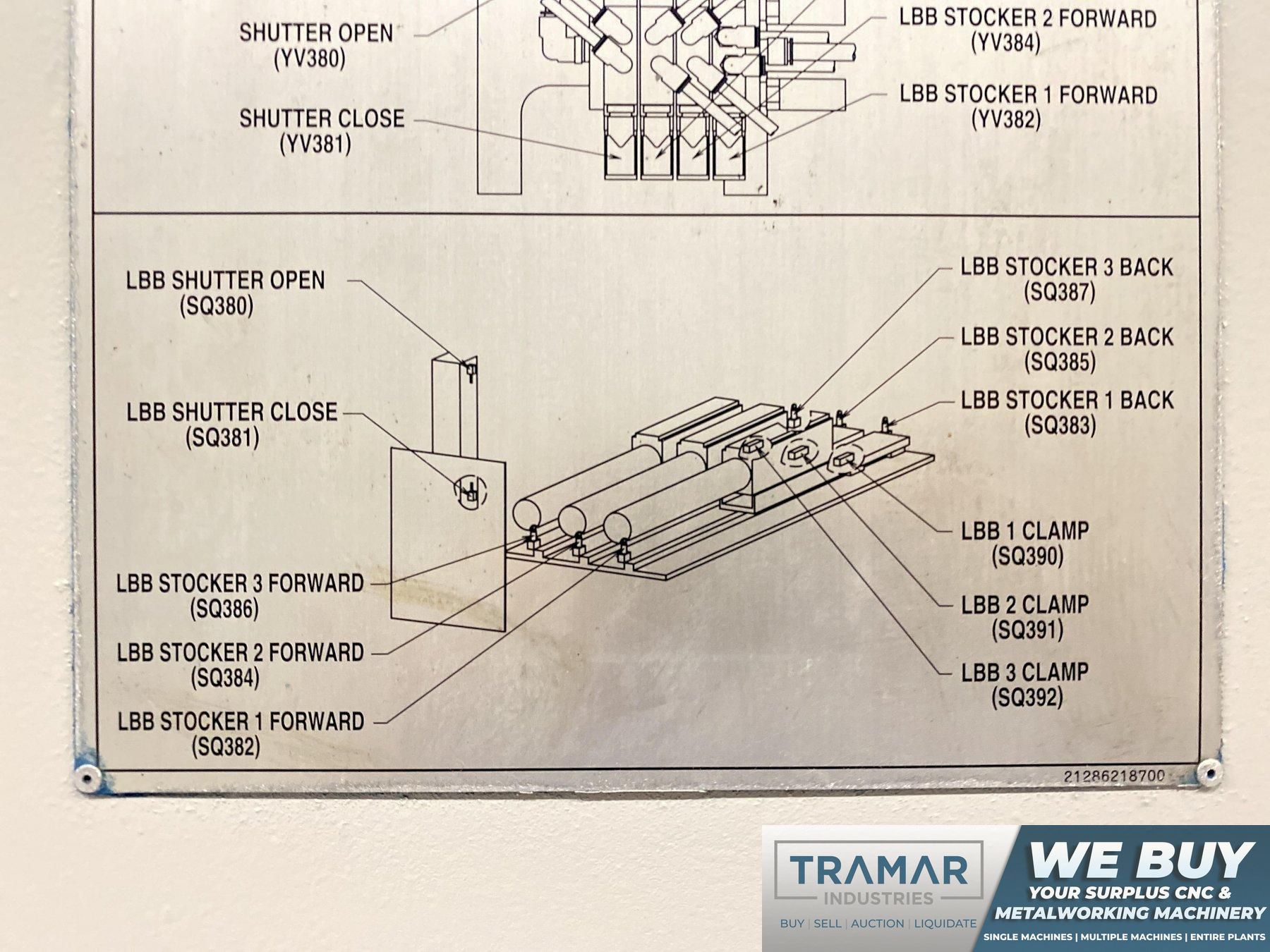

- Boring Bar Stacker

The Mazak Integrex e650H/3000 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
