Daewoo Puma 300LB - Horizontal Lathes

Share Machine
Specifications Print Specs
Model: Puma 300LB
Year: 2002
Stock #: 13636 Sold
Highlights:

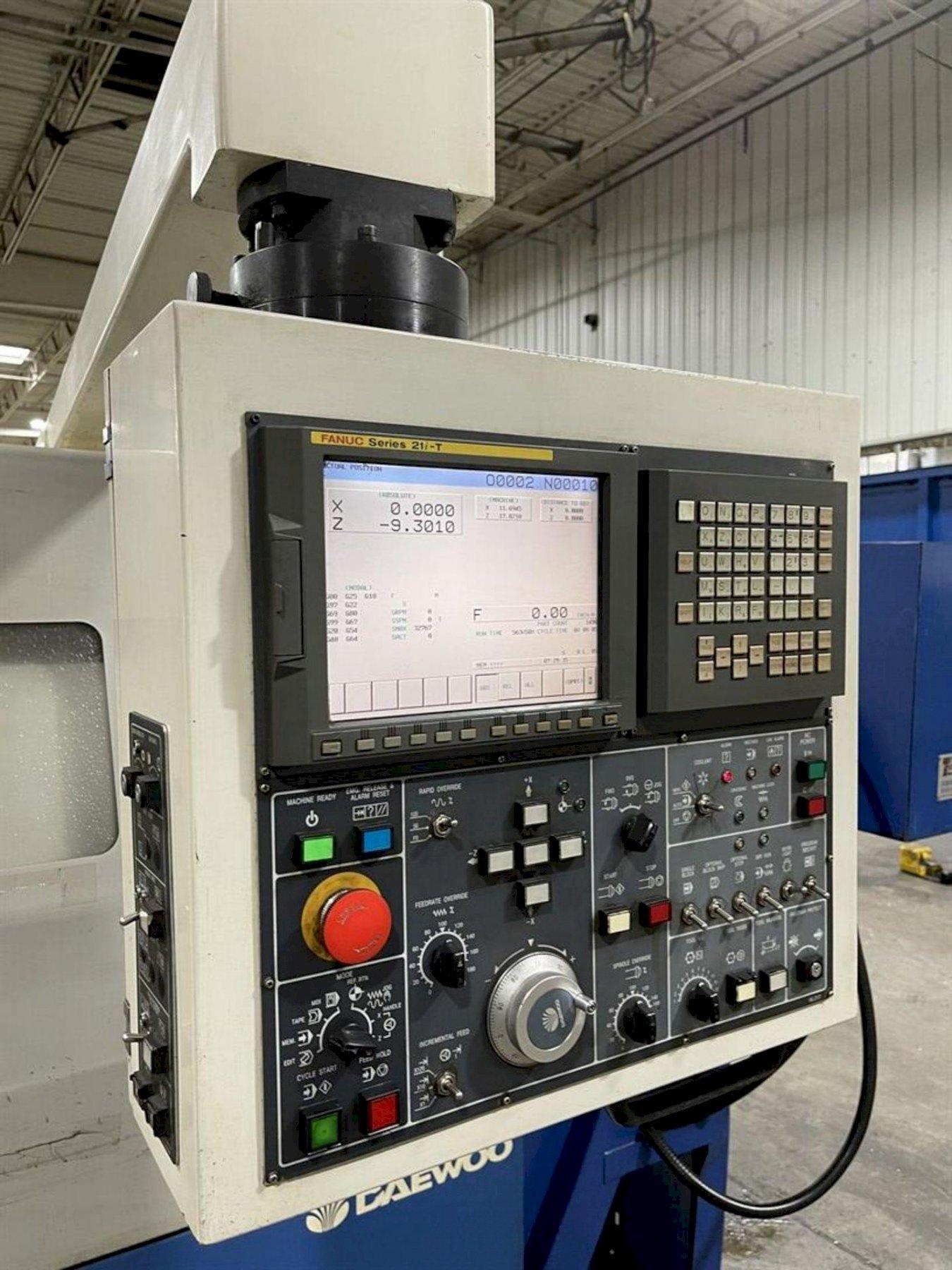

Fanuc 21i-T Control
Tailstock
Tool Presetter

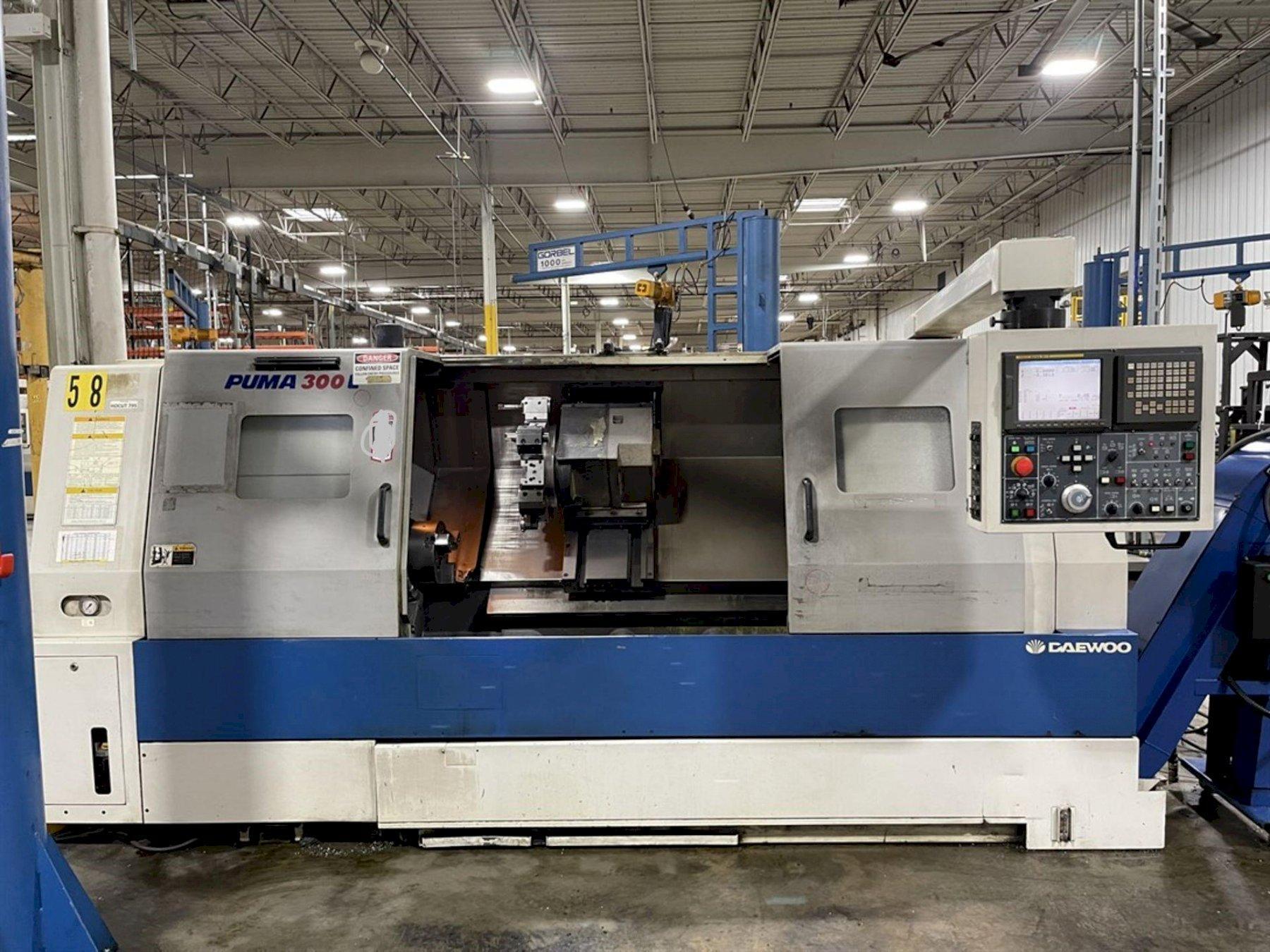

2002 Daewoo Puma 300LB CNC Horizontal Lathe
Machine Specifications
CNC Control
yes
CNC Control
Fanuc 21i-T
# Axis
2
Swing
23.23"
Turning Diameter
15.74"
Center Distance
51.1"

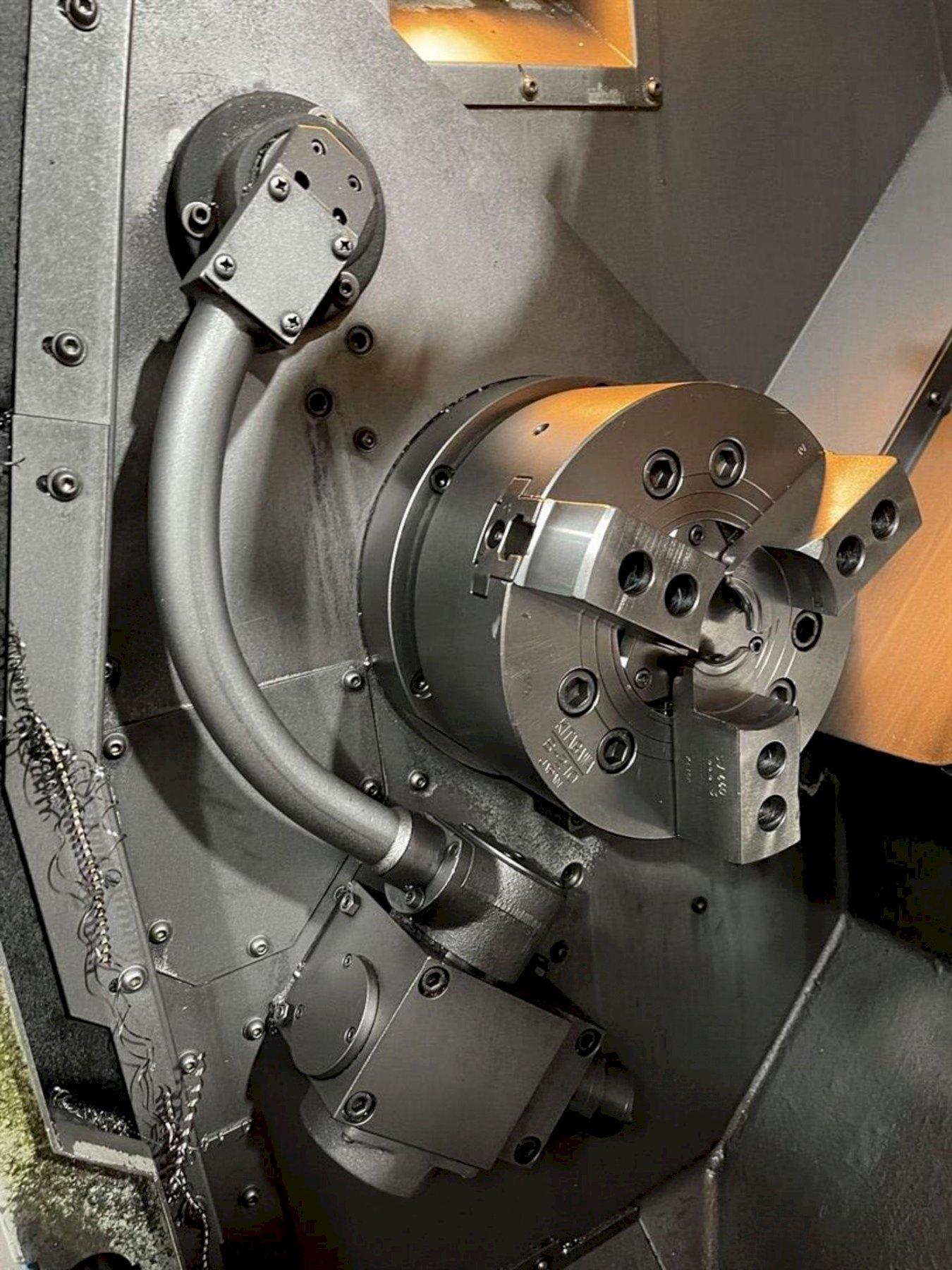

Chuck Size
10"
Bar Capacity
3.03"
X Axis Travel
11.1"
Z Axis Travel
52.36"
Spindle Nose
A2-8
Spindle Speed
3,500 rpm
Main Motor
25 hp

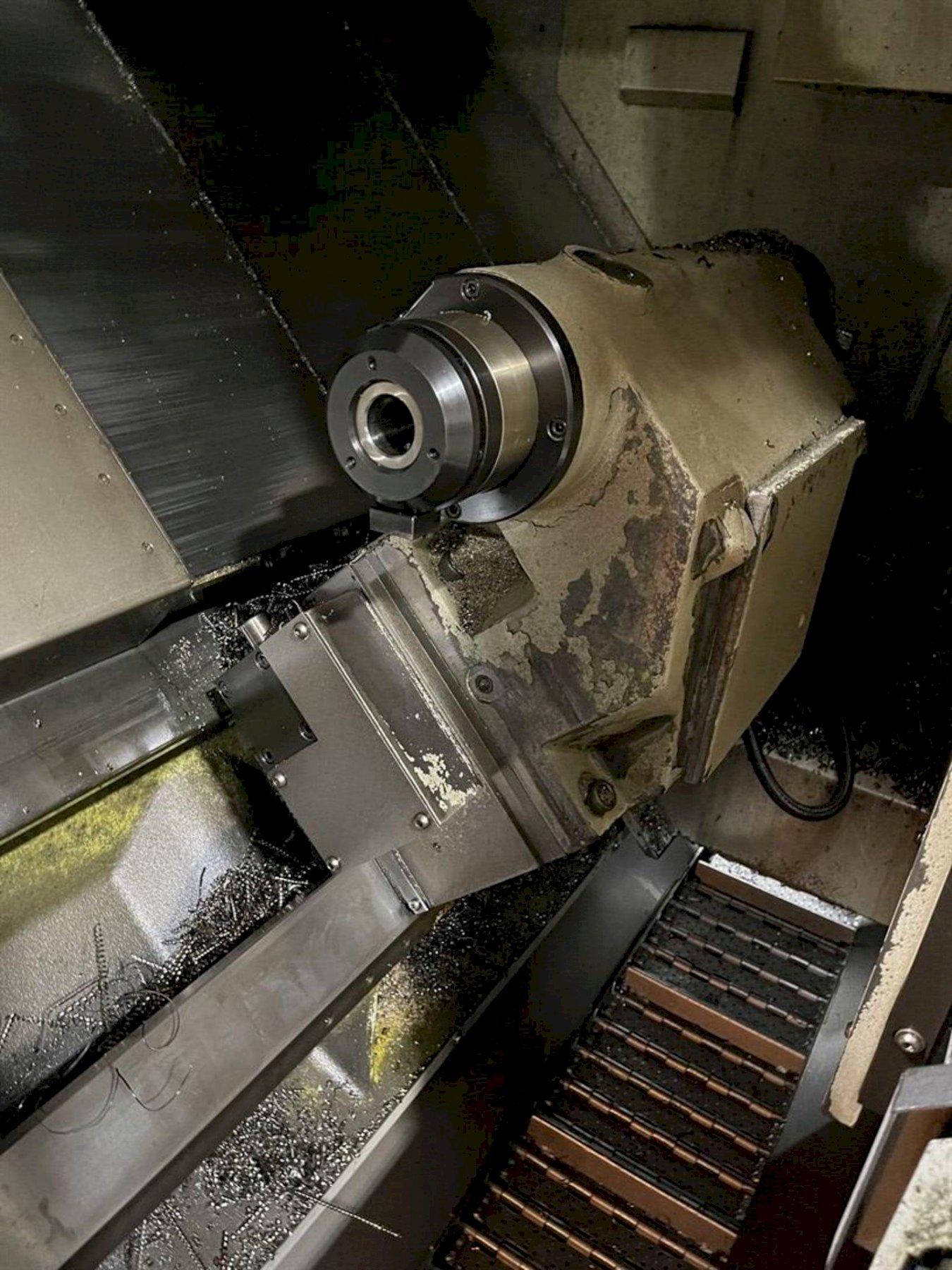

Tailstock
yes
Live Tooling
no
Y Axis
no
Sub Spindle
no

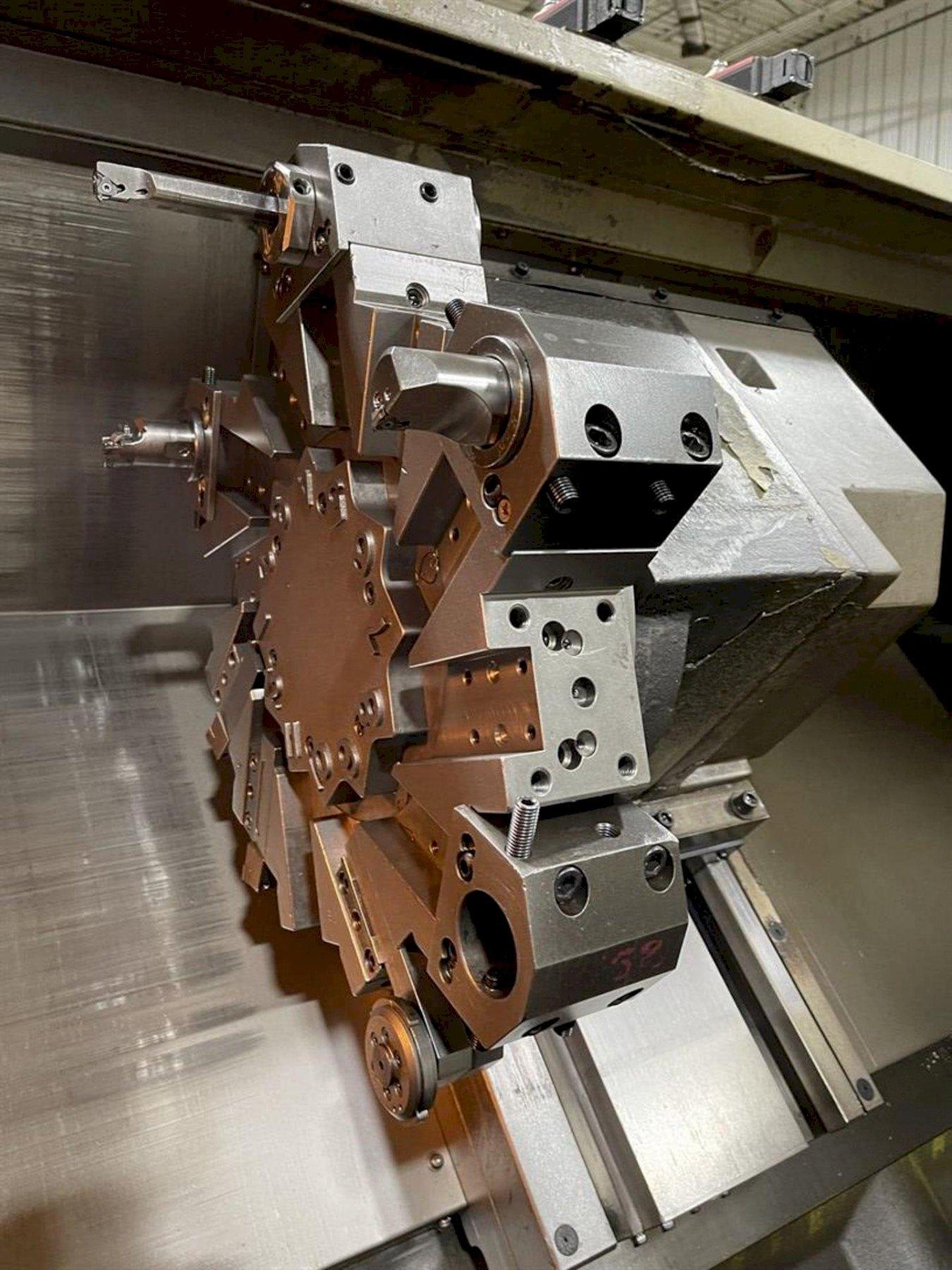

Turret Capacity
12
Machine Dimensions
161" x 90" x 80"
Machine Weight
14,500 pounds

Equipped With:

- Fanuc 21i-T Control

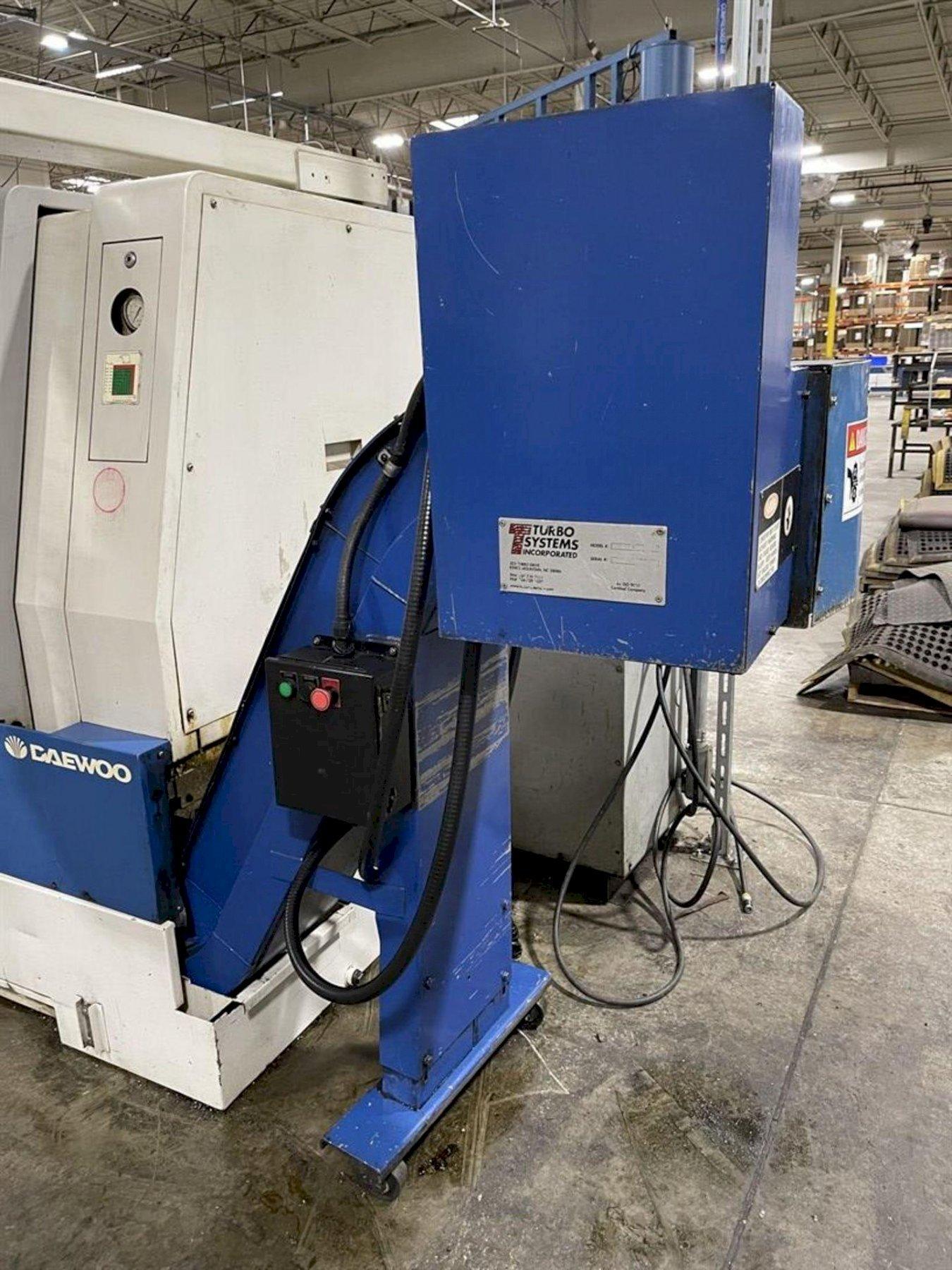

- Chip Conveyor
- Coolant Tank
- Tool Presetter
- Tailstock

The Daewoo Puma 300LB is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
