Nakamura-tome WT-250 - Horizontal Lathes

Share Machine

Specifications Print Specs

Model: WT-250

Year: 2000

Stock #: 13399 Sold

Type: Horizontal Lathes

Manufacturer: Used Nakamura-tome Machines

Highlights:
Fanuc 18i-T Control
Main & Sub Spindle

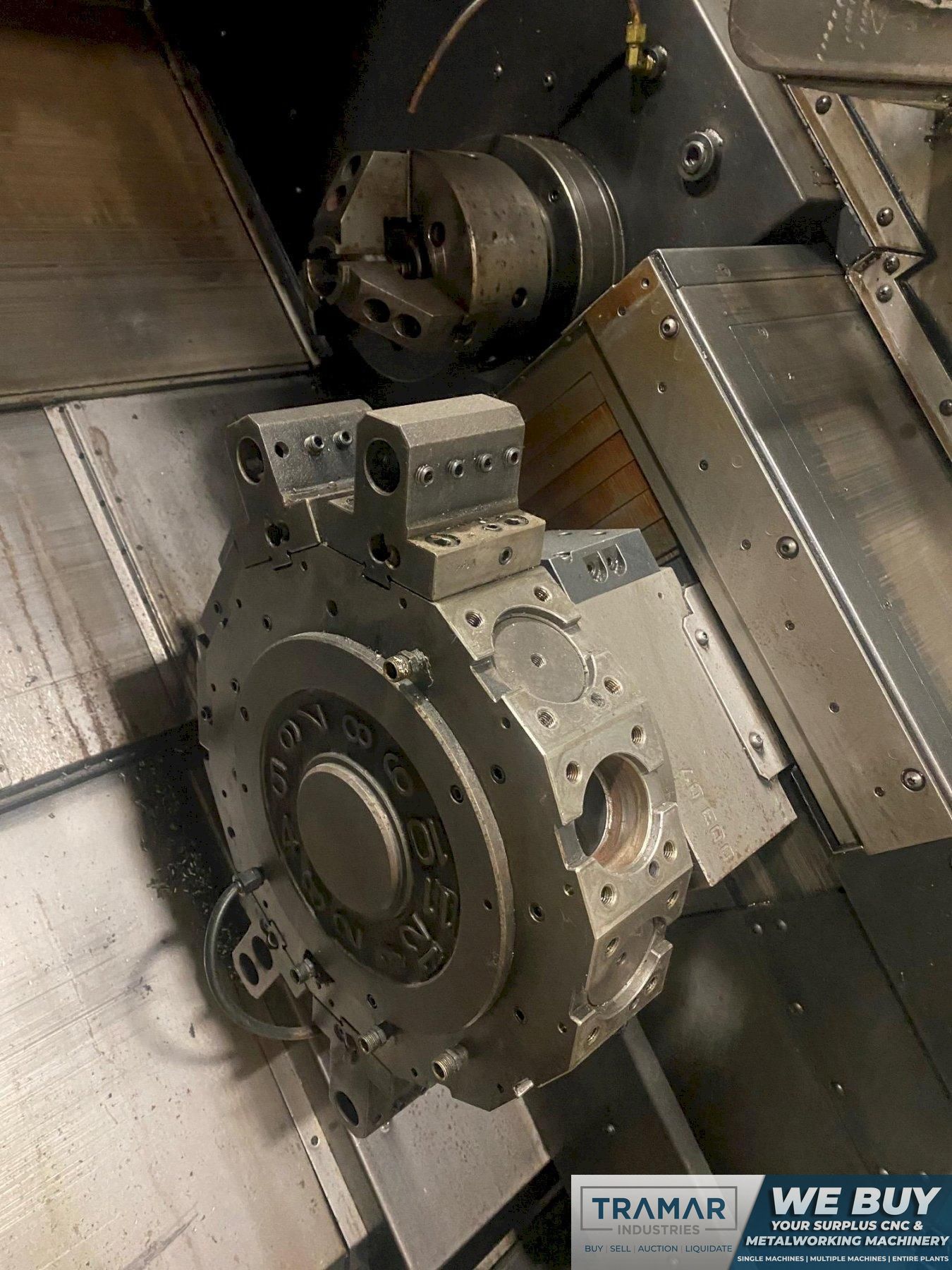

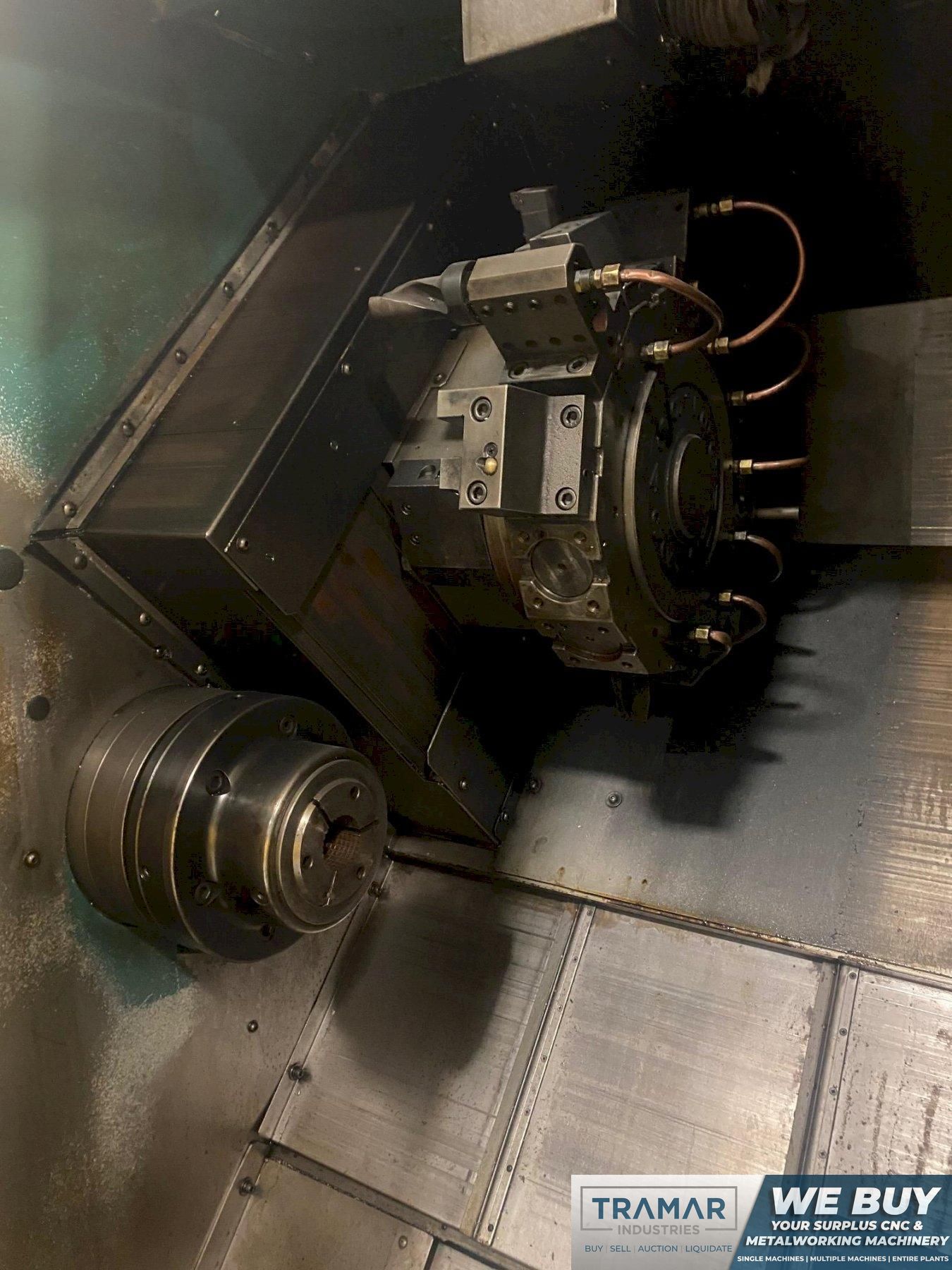

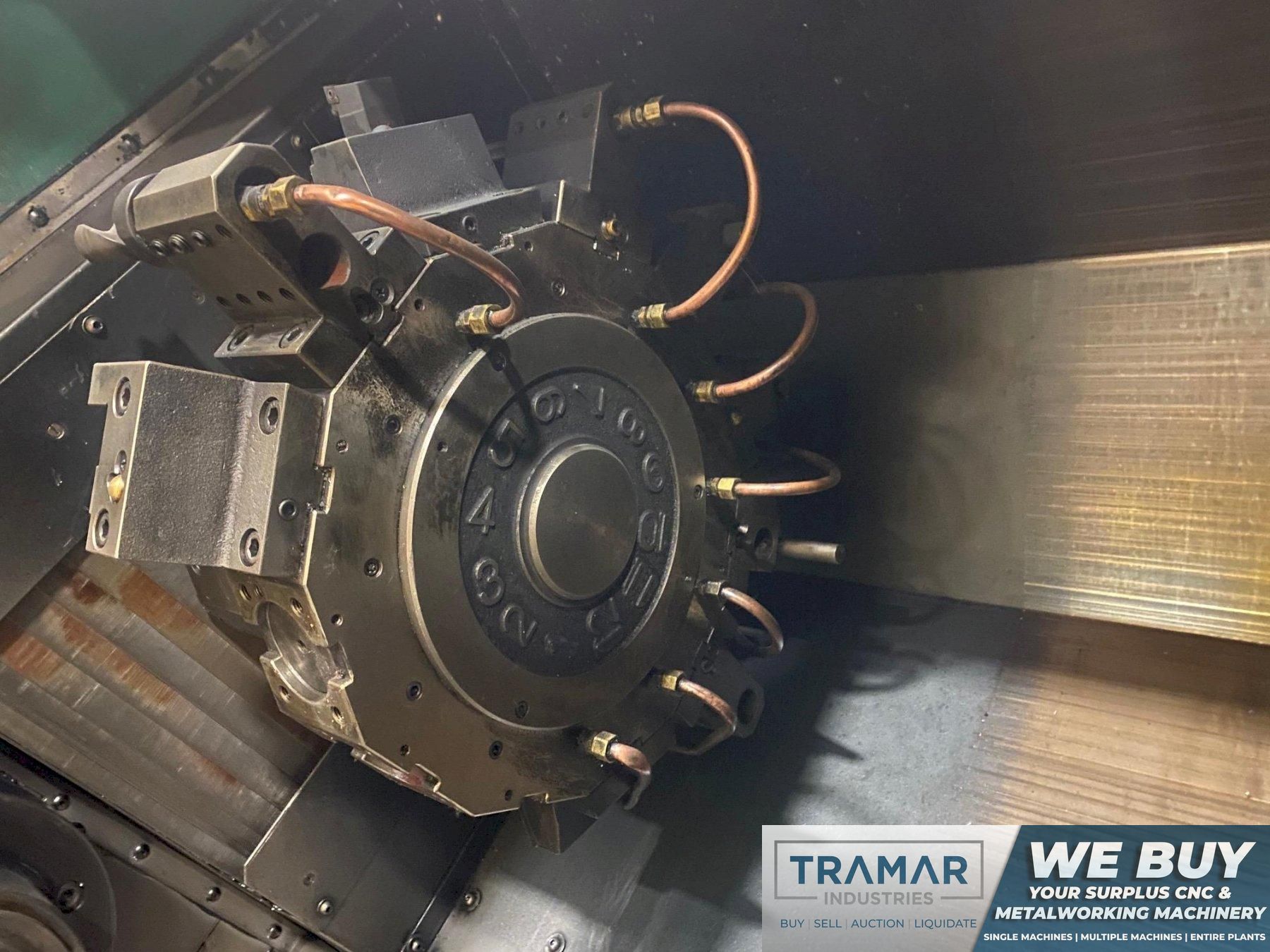

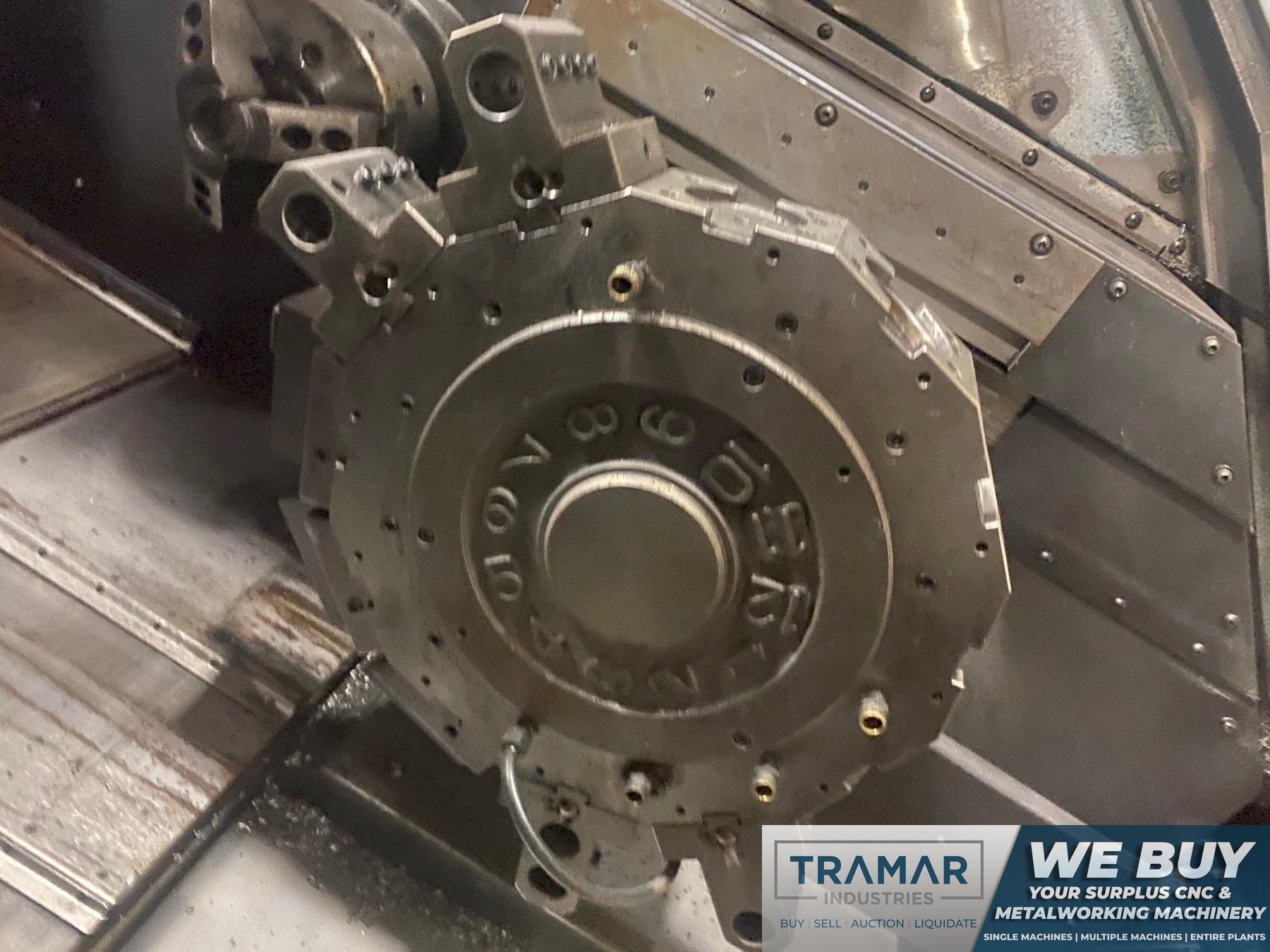

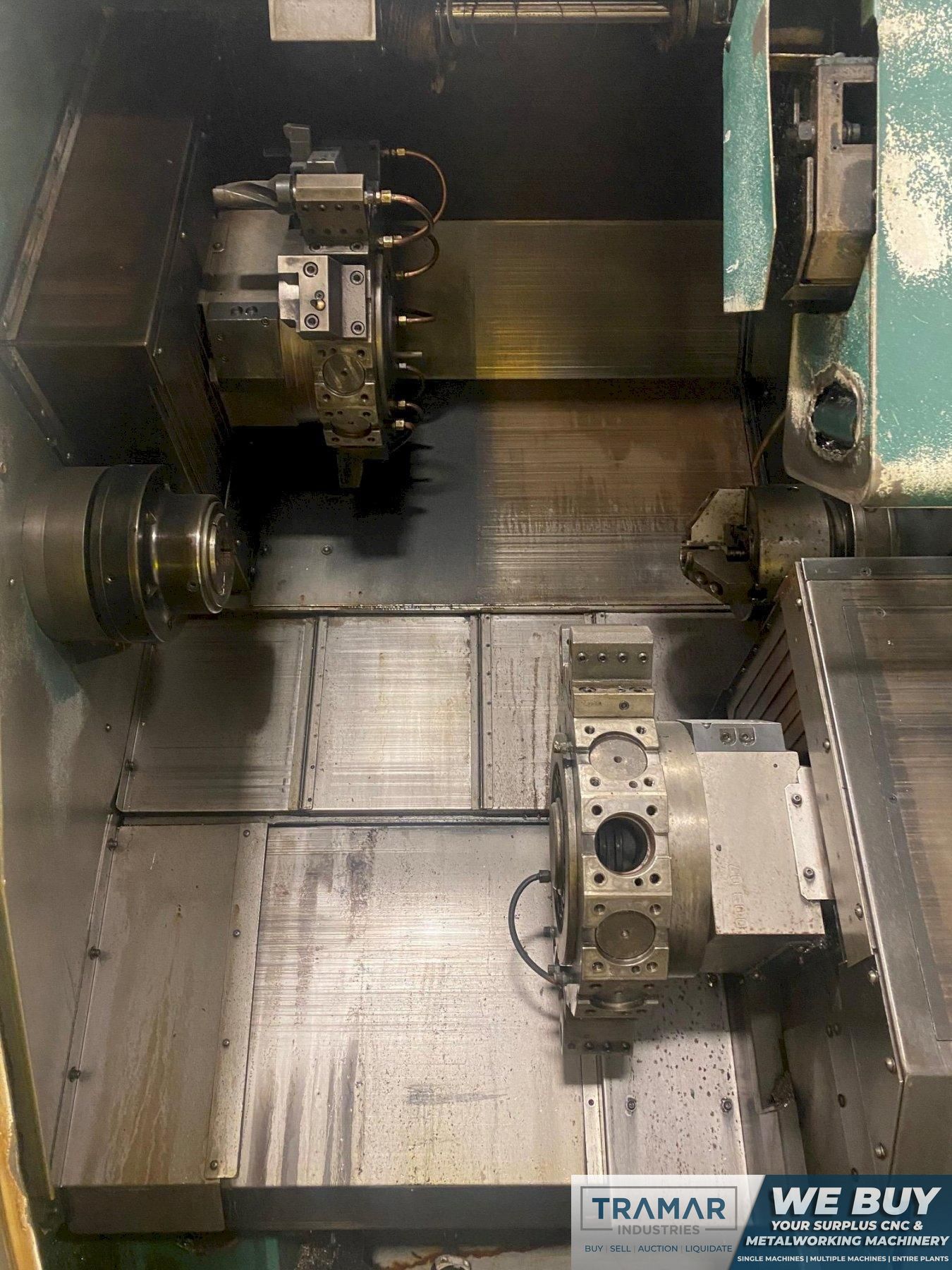

Upper & Lower Turrets
Live Tooling

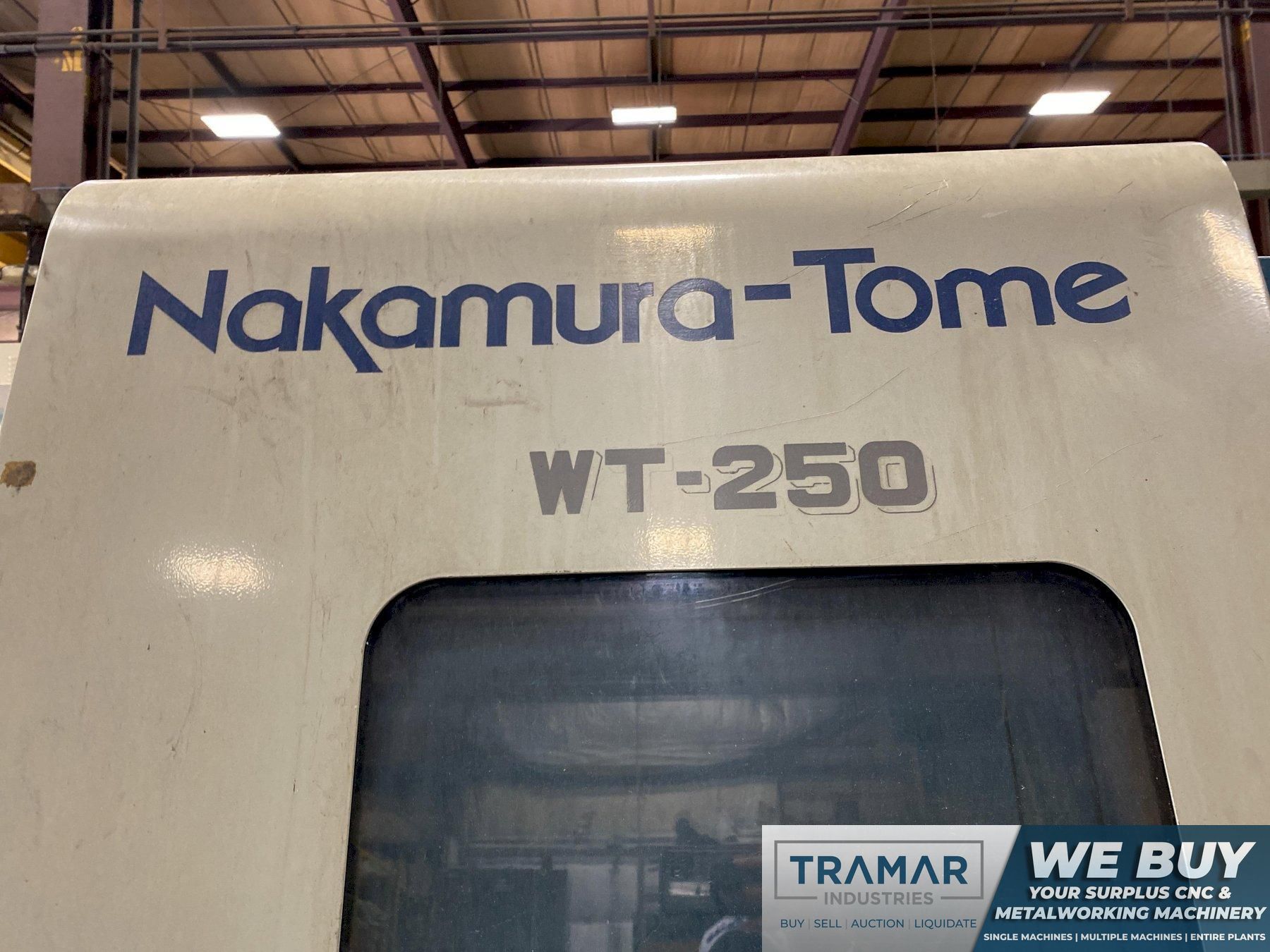

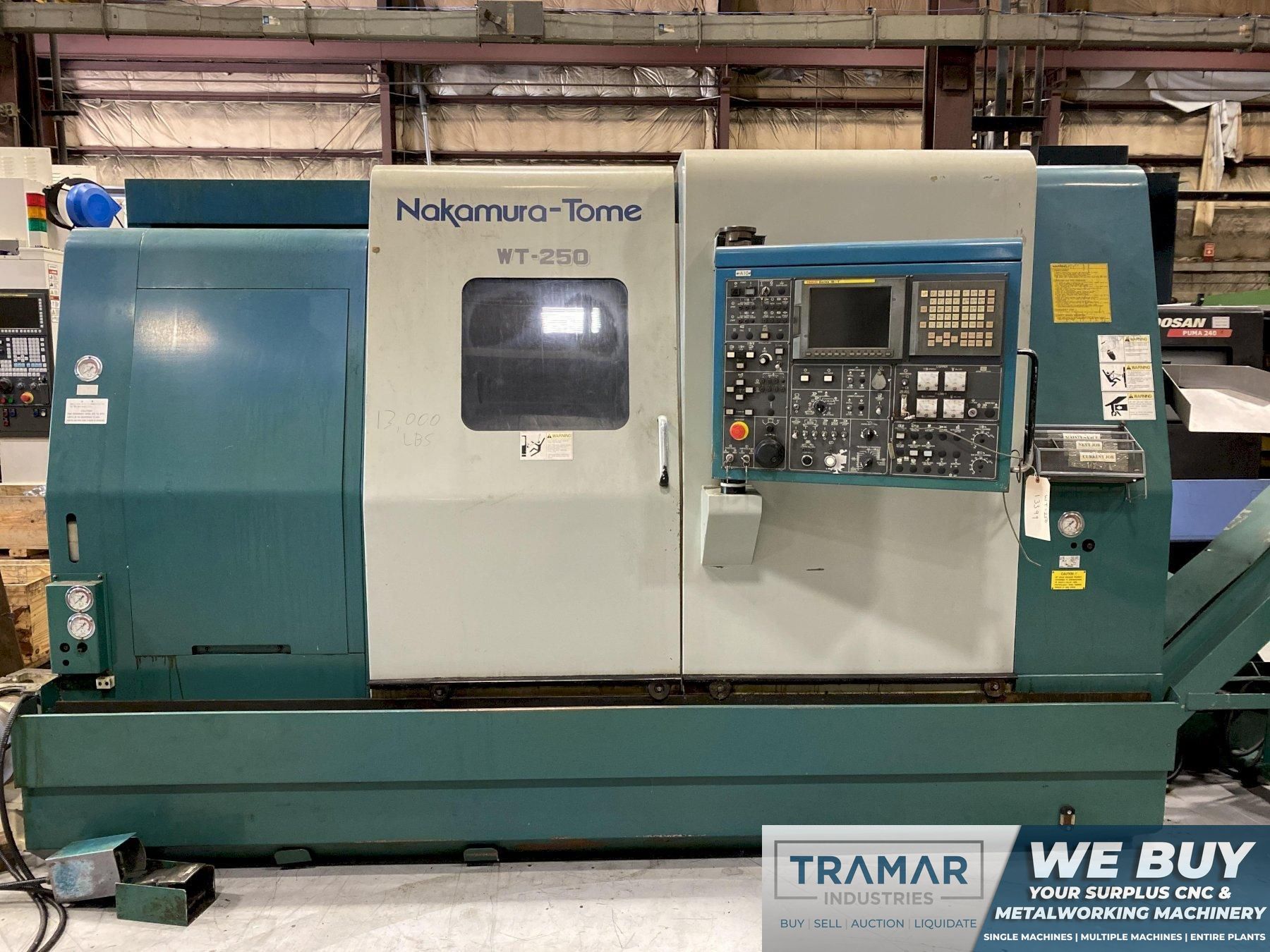

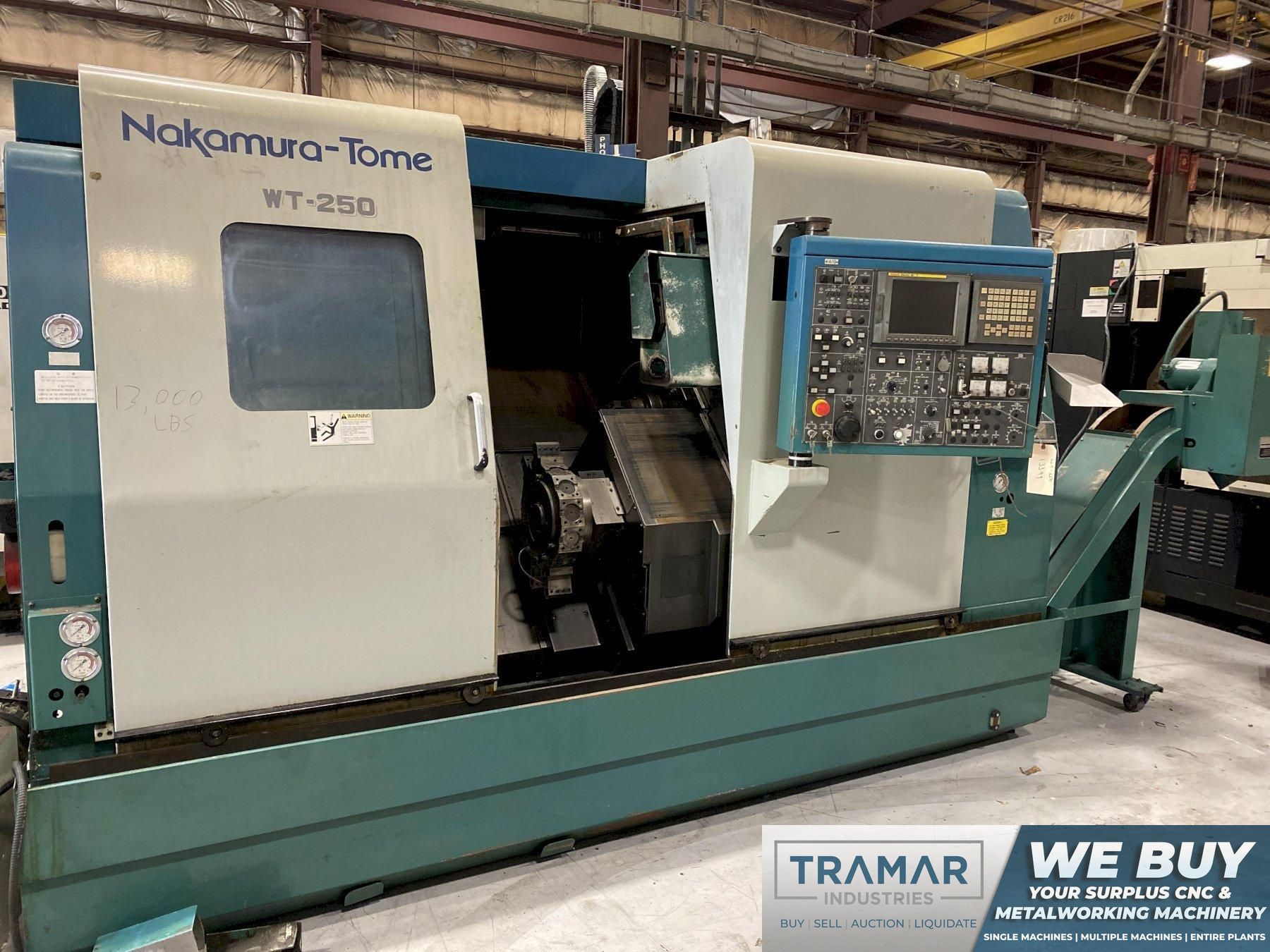

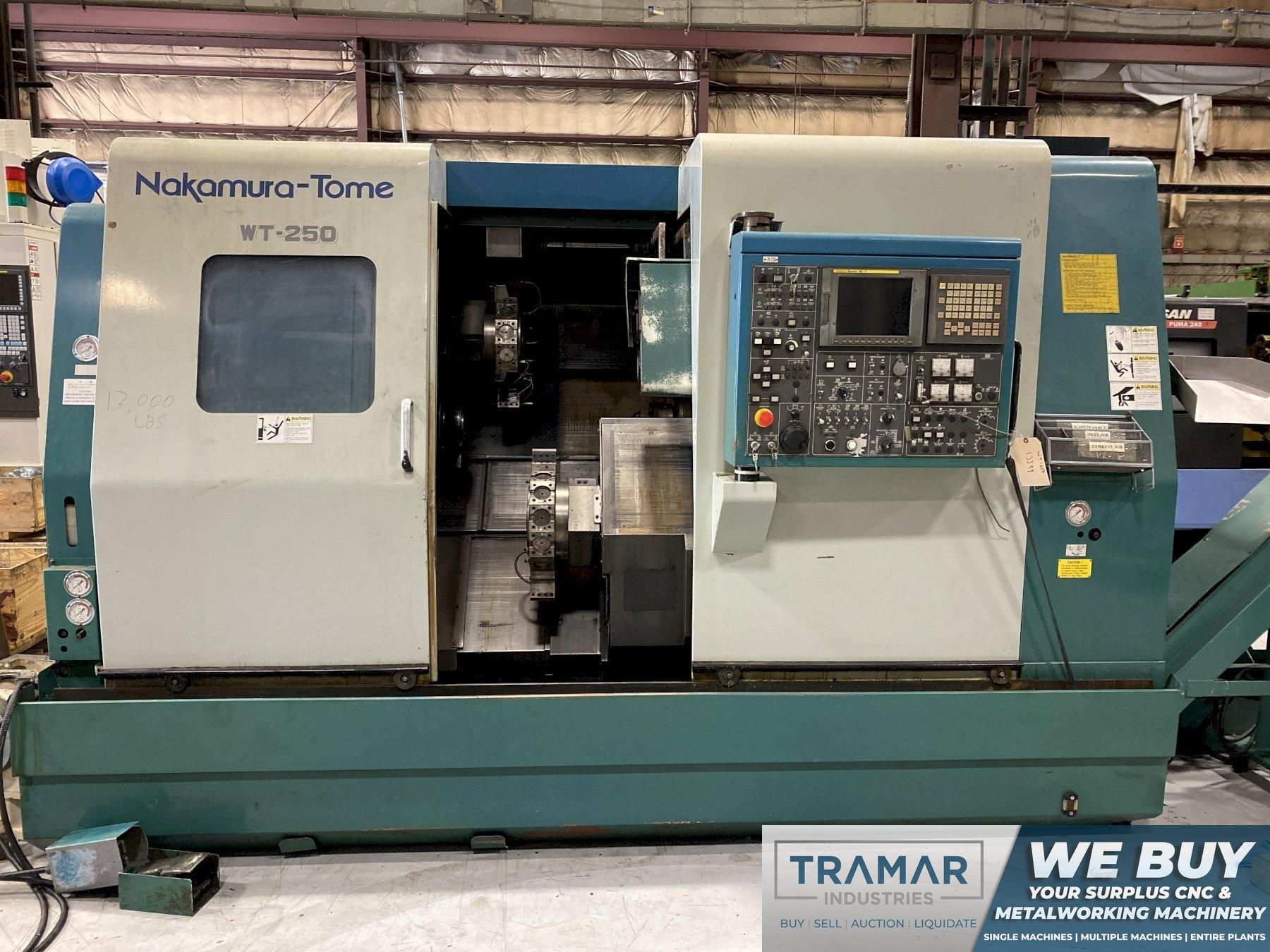

2000 NAKAMURA-TOME WT-250 - CNC Horizontal Lathe

Equipped With:

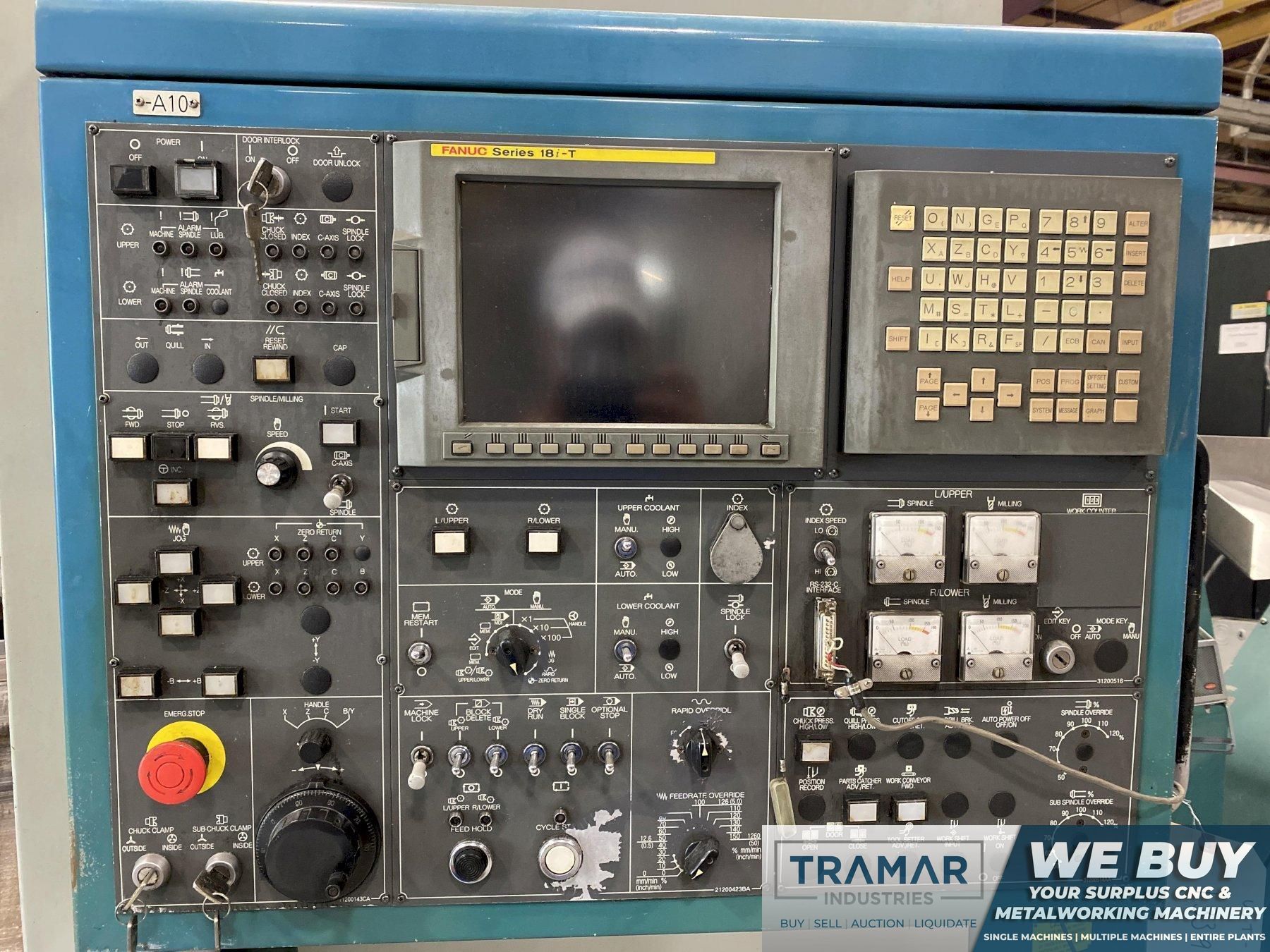

- Fanuc 18i-T CNC Control

- Collet Chuck on Main Spindle

- Coolant Tank

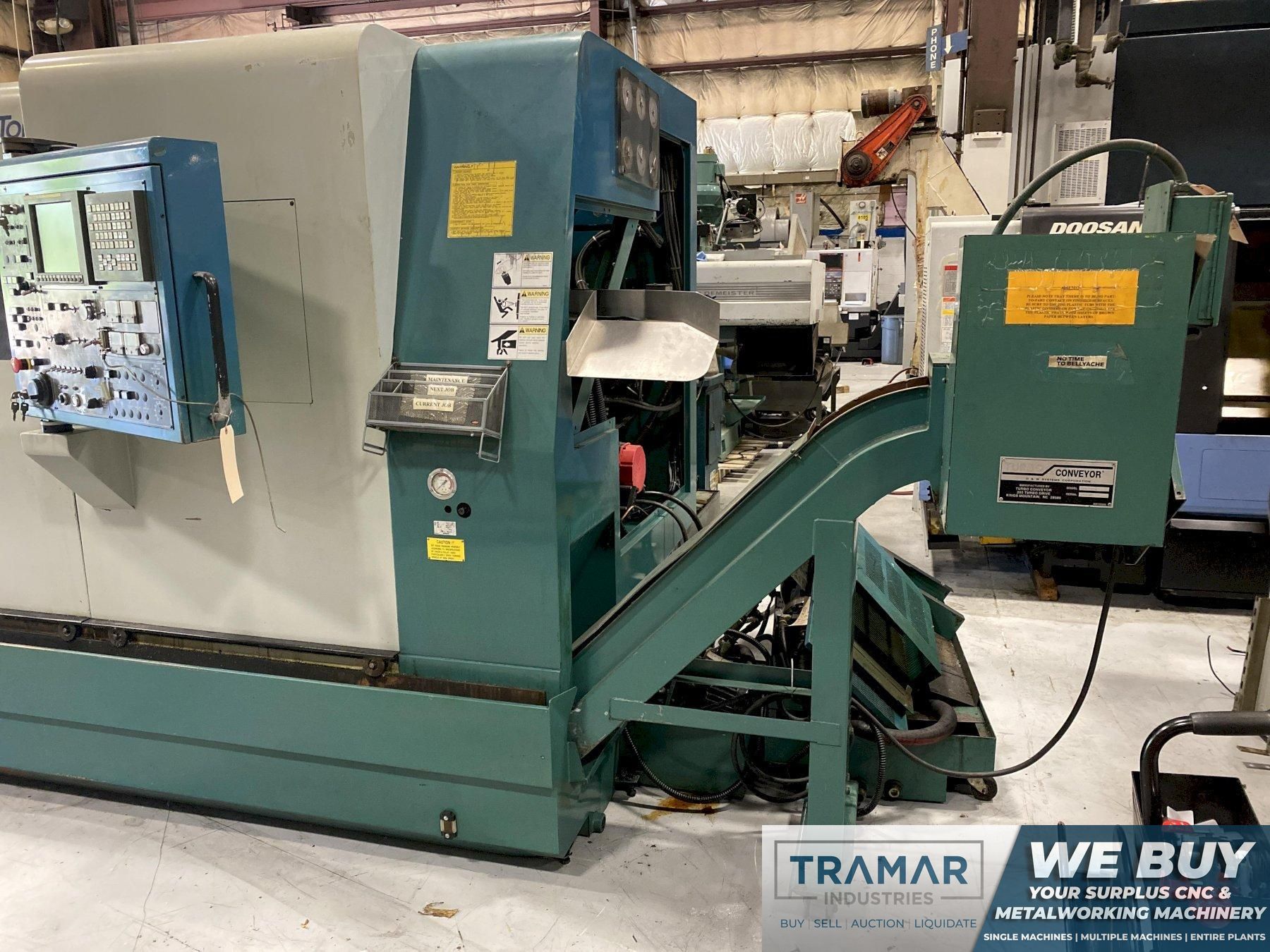

- Chip Conveyor

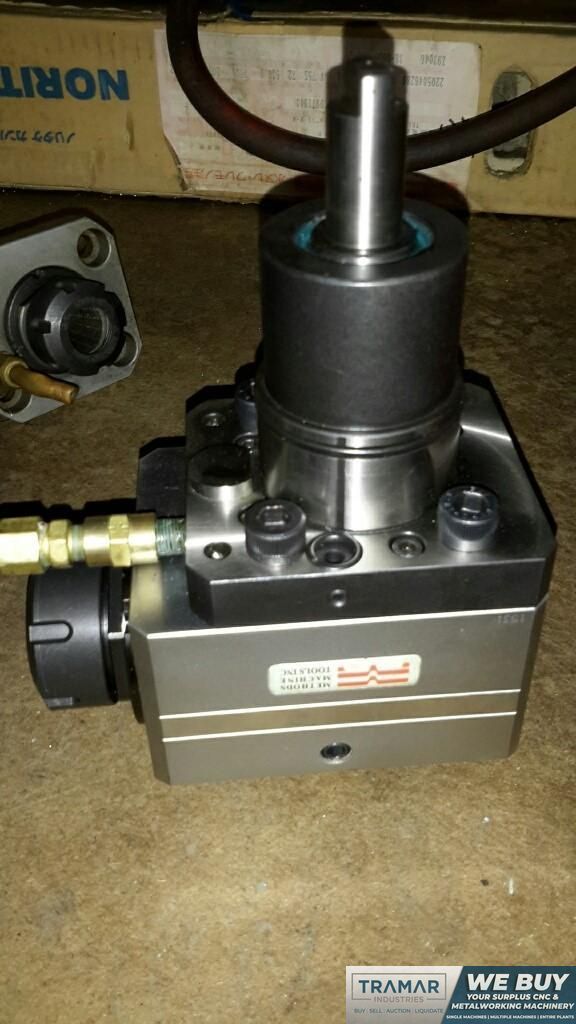

- Live Tooling

- Full C axis on Main & Sub Spindle

- Bar Feeder (LNS Quick Load Servo S2)

- Parts Catcher

- Misc. Tooling Available

Machine Specifications

Inch

Metric

Machine Specifications:

# Axis

CNC Control

yes

Control Type

Fanuc 18i-T

Swing

12.2"

Turning Diameter

9.8"

Center Distance

34.8"

Chuck Size

Sub Spindle Chuck

Bar Capacity

2.56"

Sub Spindle Bar Capacity

X Axis Travel

7.67"

X2 Travel

7.67"

Z Axis Travel

23.62"

Z2 Travel

23.62"

B Axis Travel (Sub Spindle)

24.4"

C1/C2 Axis Index

0.001°

Spindle Nose

A2-6

Spindle Speed (RPM)

4,500

Main Motor

35 hp

Sub Spindle

yes

Sub Spindle Speed

5,000 rpm

Sub Spindle Motor (HP)

25 hp

Live Tooling

yes

Live Tooling Speed

6,000 rpm

Live Tooling Motor

7.5 hp

Y Axis

Lower Turret Stations

24 Stations /12 Live

Turret Capacity

24 Stations / 12 Live

Weight

20,000 pounds

Dimensions

160" x 93" x 90"

Equipped With:

- Fanuc 18i-T CNC Control

- Collet Chuck on Main Spindle

- Coolant Tank

- Chip Conveyor

- Live Tooling

- Full C axis on Main & Sub Spindle

- Bar Feeder (LNS Quick Load Servo S2)

- Parts Catcher

- Misc. Tooling Available

The Nakamura-tome WT-250 is an exclusive part of our Horizontal Lathes inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
