Toyoda FA800 - Horizontal Machining Centers

Share Machine

Specifications Print Specs

Model: FA800

Year: 1998

Stock #: 13329 Sold

Type: Horizontal Machining Centers

Manufacturer: Used Toyoda Machines

Highlights:

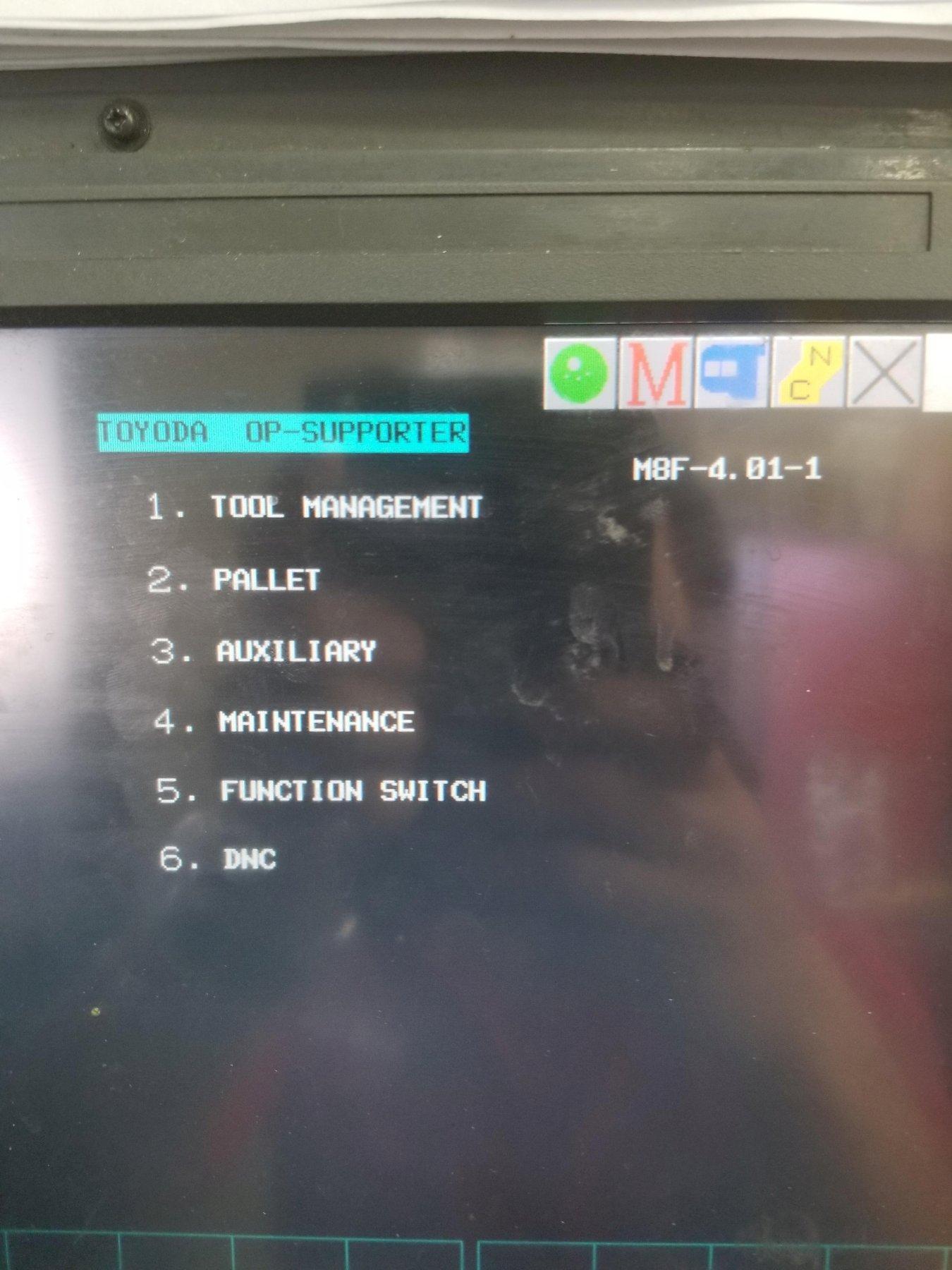

Fanuc 16i-MB CNC Control
Coolant Thru Spindle
31.5" x 31.5" Pallets (0.001° indexing)
CAT 50 | 10,000 RPM | 40HP
120 Station Tool Changer

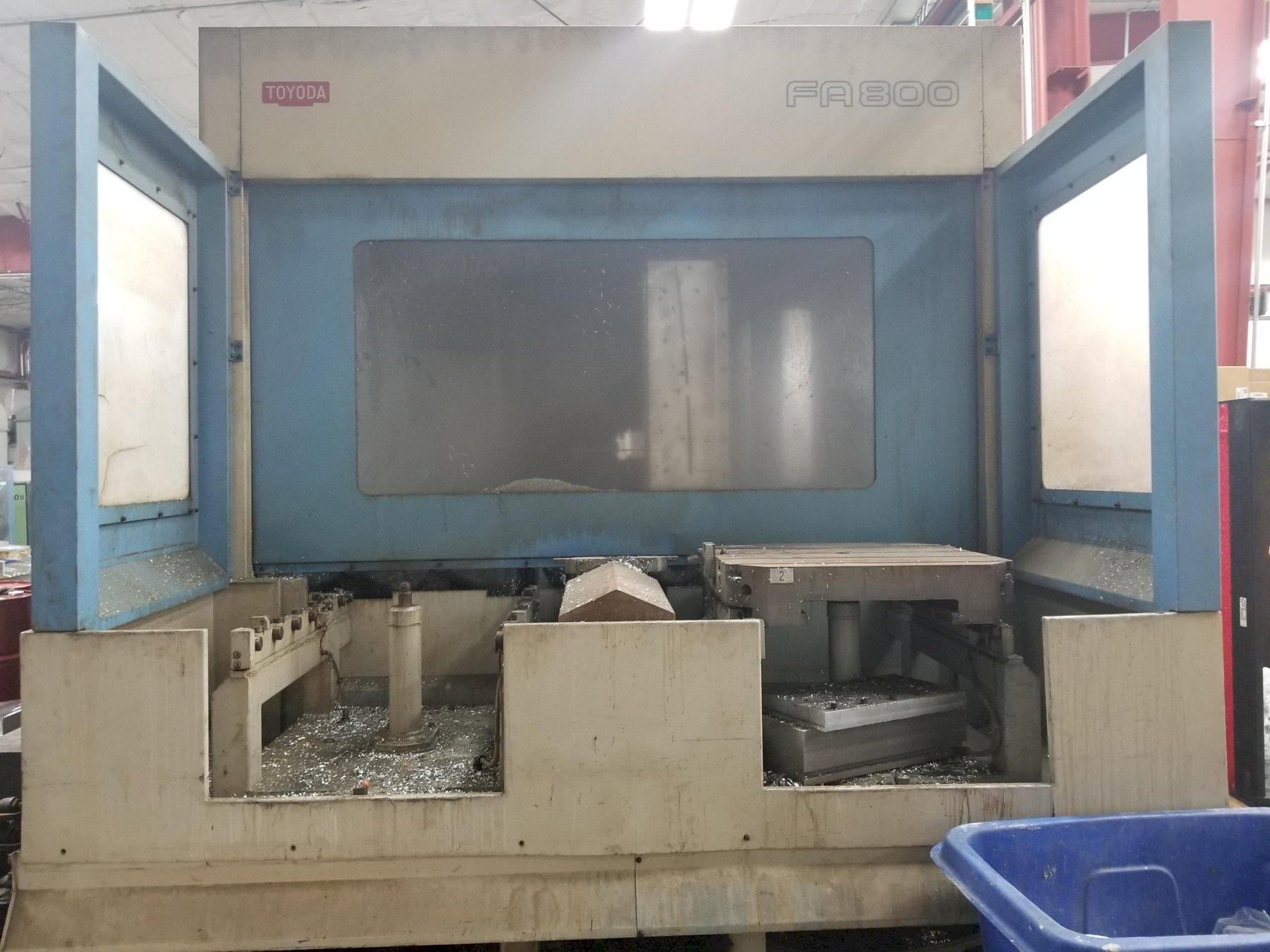

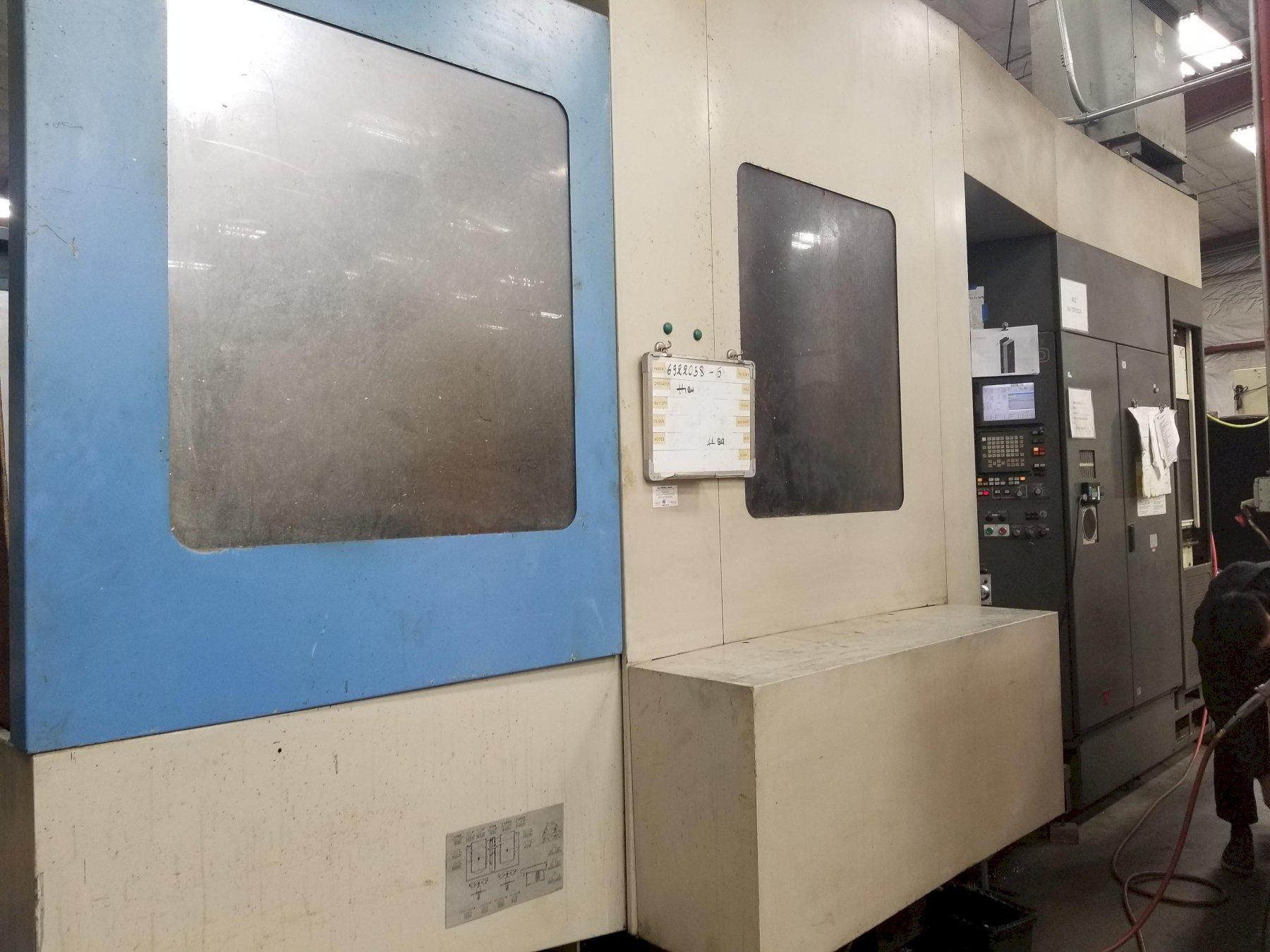

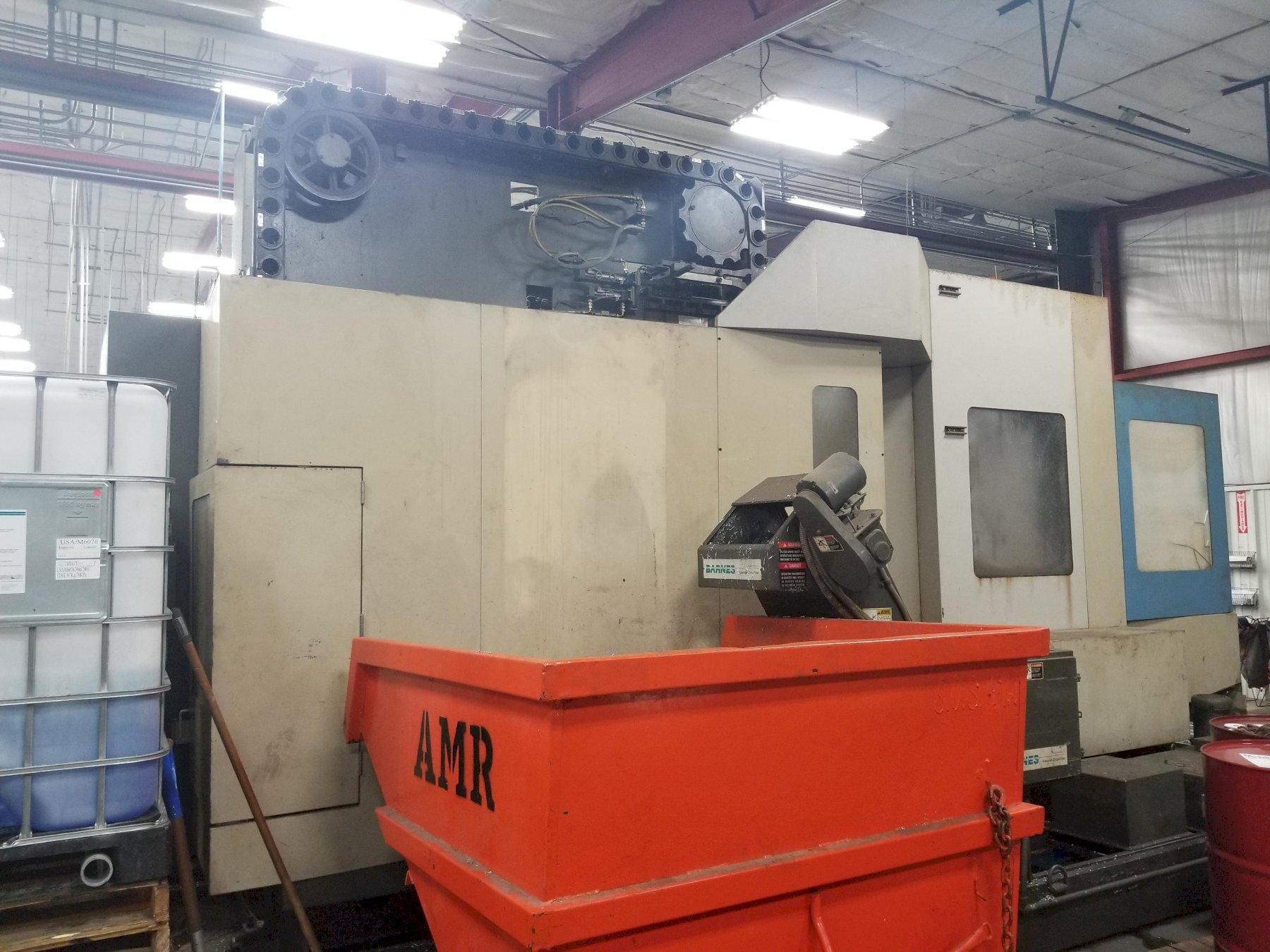

1998 TOYODA FA800 - Horizontal Machining Center

Equipped With:

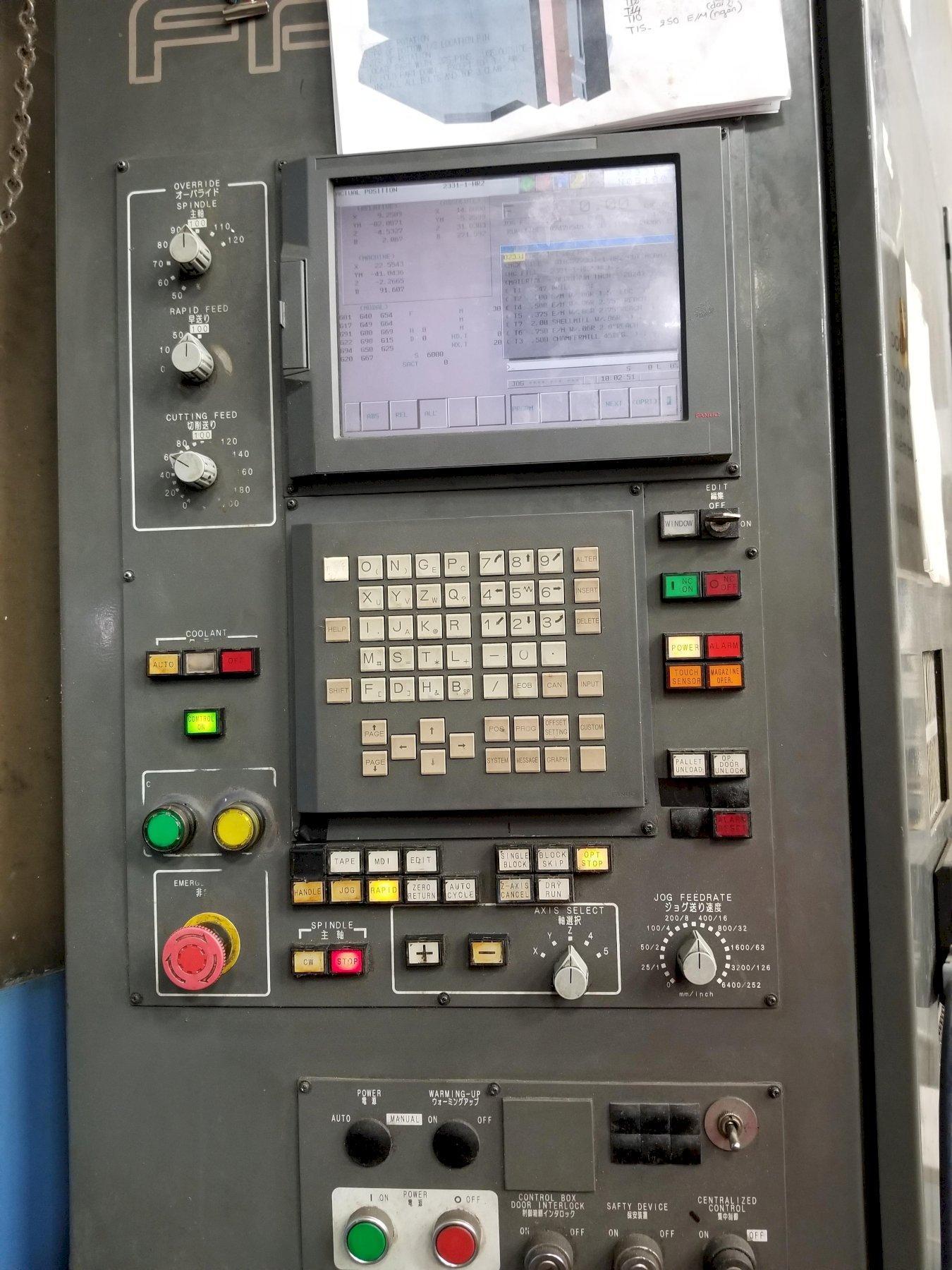

- Fanuc 16i-MB CNC Control

- Coolant Tank & Pump

- Chip Conveyor

- Coolant Thru Spindle
- 8 Station Pallet Pool Available
- 11/1998 - installed in 1999

Machine Specifications

Inch

Metric

Machine Specifications:

CNC Control

yes

Control Type

Fanuc 16i-MB

# Axis

Pallet Length

31.5"

Pallet Width

31.5"

Pallet Load Capacity

5,500 pounds

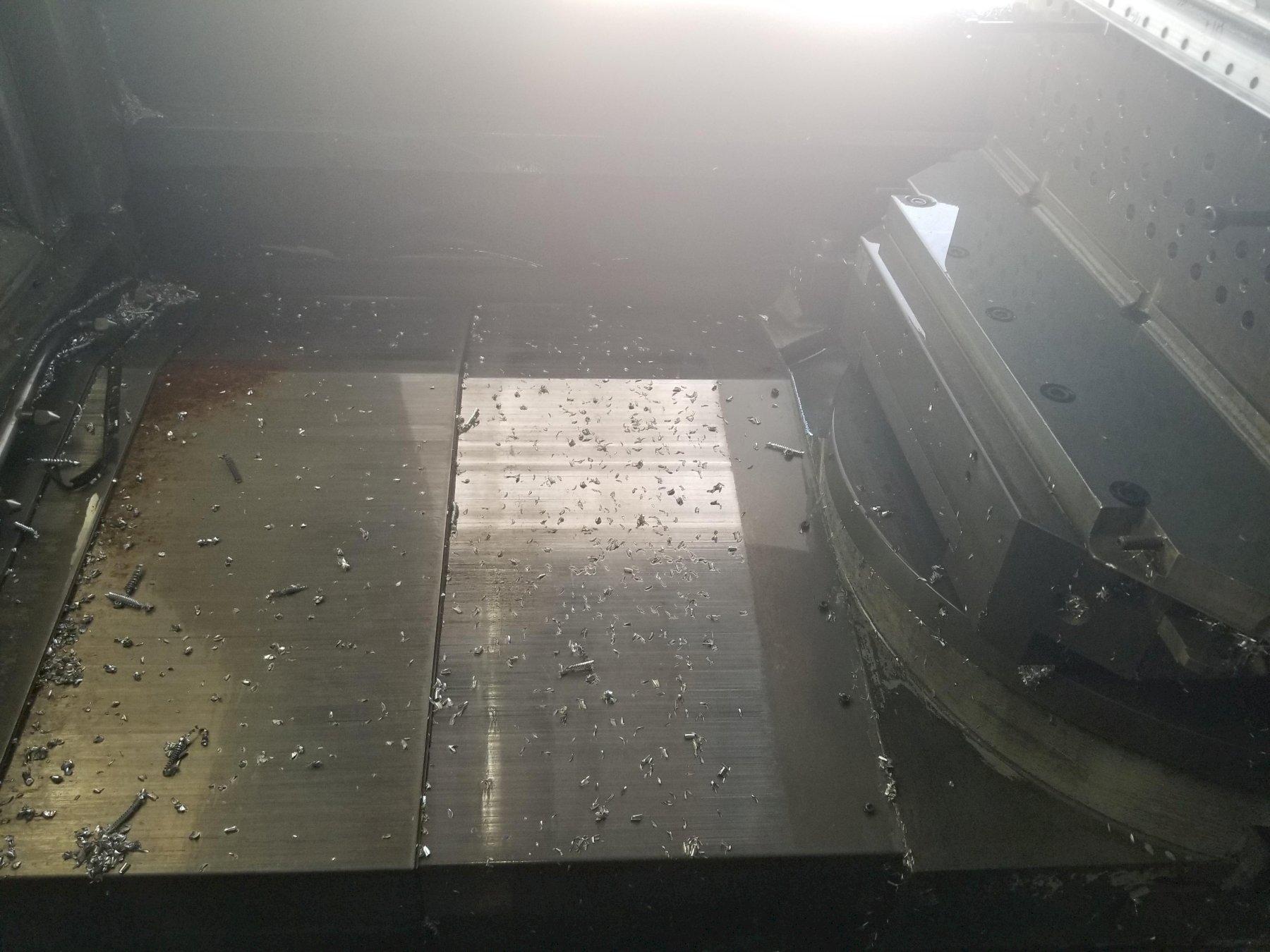

Pallet Indexing (B-Axis)

0.001°

X-Axis Travel

53.1"

Y-Axis Travel

45.2"

Z-Axis Travel

45.2"

Rapid Traverse Rate (X/Y/Z)

944 ipm

Spindle Taper

CAT 50

Spindle Speed (RPM)

10,000 rpm

Spindle Motor (HP)

40 horsepower

Tool Changer Capacity

120

Coolant Through Spindle

yes

Dimensions

274" x 178" x 165"

Weight

69,800 pounds

Equipped With:

- Fanuc 16i-MB CNC Control

- Coolant Tank & Pump

- Chip Conveyor

- Coolant Thru Spindle
- 8 Station Pallet Pool Available
- 11/1,998 - installed in 1,999

The Toyoda FA800 is an exclusive part of our Horizontal Machining Centers inventory which we own and service. We're the international CNC specialists with the best guarantee in the industry.
